Switching & Assembly Parts for Guitar Effects Pedals

Guitar Pedal Foot Switches & Accessories

DAIER offers momentary and latching foot switches for guitar effects pedals, with SPST, SPDT, DPDT, 3PDT and 4PDT circuit options. The range includes solder-lug, PCB and wired versions, plus LED models, toppers, halo rings and spring actuators. Match the switching function, circuit and connection format to your assembly.

Request a Quote View Foot Switch Models

Action Options Momentary & Latching
Circuit Options SPST to 4PDT
Connections Solder Lugs, PCB & Wired
Related Parts Toppers, Halo & Spring Actuators

Foot Switch Models & Related Parts

PBS-24B-2 SPST OFF-(ON) Momentary Solder Lugs Guitar Footswitch

The SPST OFF-(ON) momentary solder lugs guitar footswitch, 6A 250VAC / 10A 125VDC, OFF-(ON), 2 pin with 12mm mounting hole.

PBS-24B-4 Guitar Effect SPST Momentary Footswitch

Guitar effect SPST momentary footswitch, contact type: OFF-(ON), SPST; rated voltage: 4A 125VAC / 2A 250VAC; terminal: 2 Pin.

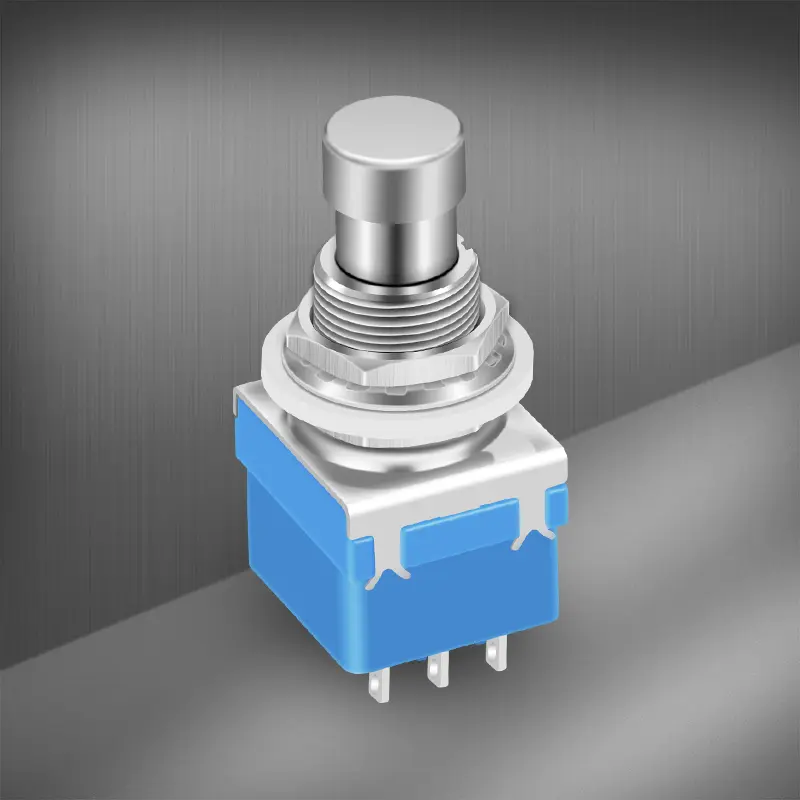

PBS-24-302 Fender Latching Foot 3PDT Switch

PBS-24-302 Fender Latching Foot 3PDT Switch with 9 Solder Terminals, Latching type, have Blue, Green, Red and Black four colors for your choice.

FT-1 Multicolor Guitar Effects Pedal Footswitch Topper Protection Cap

The guitar effects pedal footswitch topper features a 25mm diameter with a 12mm height and a 10mm inner hole diameter, making it compatible with most foot switches.

PBS-24B-4S Short Shaft SPST OFF-(ON) Pedal Switch

SPST short shaft soft touch 2Pin momentary pedal switch with solder lug.

PBS-24B-4SW SPST Guitar Footswitch With Wiring

PBS-24B-4SW SPST guitar footswitch with wiring, contact type: OFF-(ON), SPST; rated voltage: 6A 125V AC, 3A 250V AC; terminal: 2 Pin.

PBS-24B-4L Soft Touch 2PIN Foot Pedal Switch

PBS-24B-4L Soft touch 2pin foot pedal switch, contact type: OFF-(ON), SPST; rated voltage: 2A 250VAC; terminal: 2 Pin with long PBC lug.

PBS-24-102 3Pin Guitar Pedal SPDT Footswitch

PBS-24-102 3pin guitar pedal SPDT footswitch, Latching type, 4A 125VAC / 2A 250VAC, ON-ON, 3 pin with solder lug.

PBS-24-102P 3pin Guitar Latching Foot Switch

PBS-24-102P 3pin guitar latching foot switch, contact type: ON-ON, SPST; rated voltage: 4A 125V AC/2A 250V AC; terminal: 3 Pin.

PBS-24-202 Guitar Effects Pedal DPDT Footswitch

PBS-24-202 guitar effects pedal DPDT footswitch, contact type: ON-ON, DPDT; rated voltage: 4A 125VAC/2A 250VAC; terminal: 6Pin.

PBS-24-202P 6PIN PCB DPDT Push Button Switch

PBS-24-202P 6 Pin DPDT push button switch, contact type: ON-ON, DPDT; rated voltage: 4A 125V AC/2A 250V AC; terminal: 6 Pin.

PBS-24-202S Solder Lug DPDT Guitar Footswitch

PBS-24-202S solder lug DPDT guitar footswitch, contact type: ON-ON, DPDT; rated voltage: 4A 125V AC/2A 250V AC; terminal: 6 Pin.

PBS-24-202SP PCB Lugs Guitar Effect DPDT Switch

PBS-24-202SP PCB lugs guitar effect DPDT switch, contact type: ON-ON, DPDT; rated voltage: 4A 125V AC/2A 250V AC; terminal: 6 Pins

PBS-24-302S 9 Pin 3PDT Guitar Pedal Switch

PBS-24-302S 9 pin 3PDT guitar pedal switch with solder lug, contact type: ON-ON, 3PDT; rated voltage: 3A 250V AC;6A 125V AC;4A 30V DC.

PBS-24-302SP 3PDT PCB Guitar Pedal Footswitch

PBS-24-302SP 3PDT PCB guitar pedal footswitch with 9 Pin, contact type: ON-ON, 3PDT; rated voltage: 3A 250V AC; 6A 125V AC; 4A 30V DC.

PBS-24-302P 3PDT Foot Pedal Push Switch

PBS-24-302P 3PDT foot pedal push switch, contact type: ON-ON, 3PDT; rated voltage: 2A 250V AC / 5A 125V AC; terminal: 9 Pin PBC lugs.

PBS-24-302-N1 ON-ON Single-color LED Footswitch

PBS-24-302-N1 LED footswitch, LED: R, G, BL, W, PL; contact type: ON-ON, 3PDT; rated voltage: 2A 250V AC, 4A 125V AC, 4A 30V DC; terminal: 9 Pin solder lugs.

PBS-24-302-N2 3PDT Bi-Color Ring Led Foot Switch

The Bi-Color Ring Led Foot Switch, contact type: ON-ON, 3PDT; rated voltage: 2A 250V AC, 4A 125V AC, 4A 30V DC; terminal: 9 Pin solder lugs.

PBS-24-402 Guitar Pedal Solder 4PDT Foot Switch

PBS-24-402 guitar pedal 4PDT foot switch, contact type: ON-ON; rated voltage: 6A 125V AC, 3A 250V AC, 4A 30V DC; terminal: 12 Pin solder lugs.

PBS-24-402P 4PDT PCB Lug Latching Footswitch

PBS-24-402P latching footswitch, contact type: ON-ON, 4PDT ; rated voltage: 6A 125V AC, 3A 250V AC, 4A 30V DC; terminal: 12 Pin PCB lugs.

Selection Guide

Choose by Function, Circuit & Terminals

Function: Momentary or Latching

Momentary OFF-(ON) switches close while pressed and return to the open state after release.
Latching ON-ON versions retain the selected state between presses.
Spring actuators operate a separate PCB-mounted switch; they contain no internal electrical contacts.

Circuit: SPST to 4PDT

SPST uses 2 terminals; SPDT uses 3 for one changeover pole.
DPDT, 3PDT and 4PDT models have 6, 9 and 12 switching terminals respectively.
Single-color and bi-color LED versions add indication; the LED supply is separate from the contact load rating.

Terminals: Wiring or PCB Assembly

Solder-lug versions support hand-wired assemblies; PCB-lug versions need the matching board footprint.
Wired versions connect through leads; short-shaft and long-lug versions provide different assembly layouts.
Match the bushing, panel fit, terminal spacing and installed height to the dimensional drawing.

Toppers enlarge the actuator surface; LED halo rings provide separate illumination. Their fit and electrical requirements differ from a complete foot switch. The catalog also includes guitar pickup toggle selectors, which are not foot-operated.

Applications

Foot Switch Applications

Match the switching mechanism to the pedal architecture and assembly method.

Effects Pedal Bypass

Multi-pole changeover switches for pedal signal routing. 3PDT models are listed for true-bypass wiring; choose the terminal format around the circuit layout.

Tap Tempo & Control Inputs

Normally open SPST momentary switches provide a returning foot-operated contact for tap-tempo and relay-control circuits.

Pedal Assembly & Replacement

Match solder-lug or PCB connections and enclosure fit. Source toppers, halo rings or spring actuators separately when the assembly requires them.

Common Questions

Foot Switch Selection FAQs

Answers about switching action, circuits, connections and related accessories.

Replacing an Existing Switch?

A terminal-side photo and mounting drawing help identify the correct version.

Send Project Details

What Is the Difference Between Momentary and Latching Action?

A momentary switch returns when released; a latching switch retains its state until the next press. Normally open OFF-(ON) contacts close only while pressed. Momentary action suits a control input that needs a brief contact, while latching action suits a circuit that must hold its selected state.

How Do SPST, SPDT, DPDT, 3PDT and 4PDT Models Differ?

SPST switches one circuit on or off. SPDT changes one pole between two contacts; DPDT, 3PDT and 4PDT provide two, three and four changeover poles. The corresponding catalog terminal counts are 2, 3, 6, 9 and 12. Use the terminal diagram to identify each connection; pin count alone does not establish the switching action.

Can a PCB-Lug Model Replace a Solder-Lug Version?

Only if the electrical function and mechanical layout also match. Solder lugs accept hand-wired connections, while PCB versions must match the board footprint and installed height. Compare terminal spacing, bushing length, panel thickness and enclosure clearance using the exact drawing.

Are Toppers, LED Halo Rings and Spring Actuators Complete Switches?

No. Toppers fit over an existing actuator, and an LED halo ring provides separate illumination. A spring actuator presses a separate switch on the PCB and has no internal switching mechanism. These accessories need a compatible switch or board assembly. Guitar pickup toggle selectors are also listed here and are not foot-operated.

Do Contact Ratings Also Specify the LED Supply?

No. Contact load ratings and LED supply requirements are separate. Single-color and bi-color ring LED versions are listed, and the LH-12 is a separate halo accessory. Specify the LED color, supply and current-limiting arrangement independently; use the confirmed specification for the exact version rather than applying a contact rating to the LED.
