Connector

Connectors are a very broad term, and many different types are depending on what they are used for, how they are installed, how they are structured, how they perform, and so on. Our DC Power Jacks, Phone Jacks, and Terminal Blocks also belong to the connector.



DC power jacks are most commonly found on wall plug-in power supplies and power adapters with low DC. 2.1mm and 2.5mm are the most popular, followed by 1.7mm and 1.3mm. We carry a wide range of DC power jacks including straight and right angle PC mount, plastic or metal housings, solder terminals, and a variety of center pin size options.



Phone jacks included 3.5mm phone jacks and 6.35mm(1/4″) phone jacks. They are used for audio with mono or stereo. We also carry a wide range of phone Jacks and Plugs including straight and right-angle plugs, metal and plastic handles, two and three conductors.

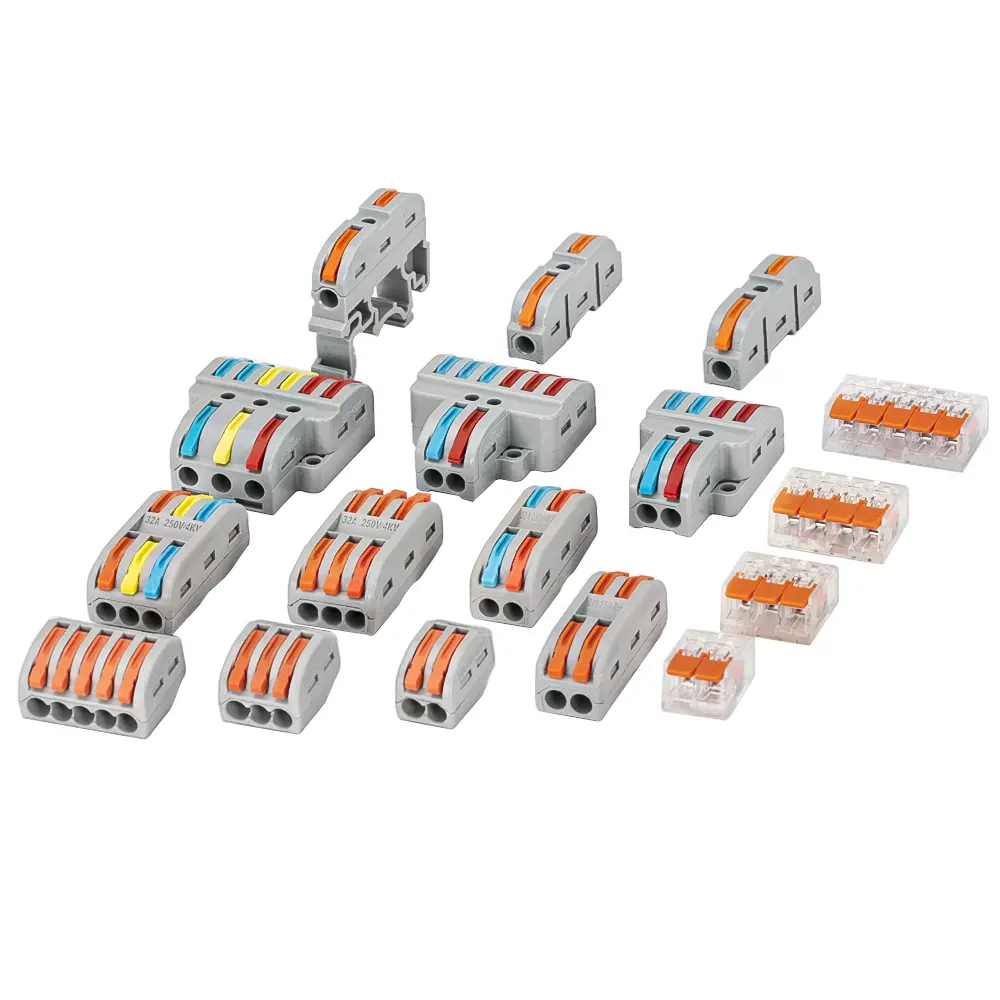

And we supply wago cloned terminal blocks, tools. … Once the wire is inserted into the connector, the Wago clamp secures the conductor and encloses its insulation. It saves time and money, so it’s now widely used on house renovation and electrical equipment.

Alligator Clip

Alligator Clip

The alligator clip is also named alligator clamp, crocodile clip, or crocodile clamp. An alligator clip is a sprung metal clip with long, serrated jaws that are used for creating a temporary electrical connection. This simple mechanical device gets its name from the resemblance of its jaws to that of an alligator’s or crocodile. It is used to connect an electrical cable to a battery or some other component. Functioning much like a spring-loaded clothespin, the clip’s tapered, serrated jaws are forced together by a spring to grip an object. When manufactured for electronics testing and evaluation, one jaw of the clip is typically permanently crimped or soldered to the wire or is bent to form the inner tubular contact of a 4 mm female banana jack, enabling a quick non-permanent connection between a circuit under test and laboratory equipment or to another electrical circuit. The clip is typically covered by a plastic shroud or “boot” to prevent accidental short-circuits. We carry a selection of widely used electrical alligator clips in various sizes, insulated and uninsulated, Most of them for car battery and test equipment use.

Alligator Clip

Banana Jack

Banana Jack

Banana jacks included Banana Plugs and Banana Sockets which have become the connection of choice at almost all levels of audio. They are used to carry dc and low-frequency signals. They are commonly used on power supplies and multimeters. The relative ease of termination and the time tested reliability of the connector provide one of the best solutions for audio professionals and enthusiasts alike. These banana jacks accept a wide range of wire diameters to suit the needs of your system. A small screwdriver is the only extra tool you need for terminating the wires; no crimping and no soldering. Color-coded vinyl insulators made of highly conductive brass, slide easily over the connector and are long enough to provide added protection from accidental short circuits when pulled up to the mating jack surface. Includes connectors and insulators to create equal pairs of plugs.

Banana Jack

Battery Holder

Battery Holder

A battery holder is one or more compartments or chambers for holding a battery. For dry cells, the holder must also make electrical contact with the battery terminals. For wet cells, cables are often connected to the battery terminals, as is found in automobiles or emergency lighting equipment. A battery holder is either a plastic case with the shape of the housing molded as a compartment or compartments that accepts a battery or batteries, or a separate plastic holder that is mounted with screws, eyelets, glue, double-sided tape, or other means. Battery holders may have a lid to retain and protect the batteries or maybe sealed to prevent damage to circuitry and components from battery leakage. Coiled spring wire or flat tabs that press against the battery terminals are the two most common methods of making the electrical connection inside a holder. External connections on battery holders are usually made by contacts with pins, surface mount feet, solder lugs, or wire leads. Because of the different battery sizes, our battery boxes are roughly divided into AA Battery Holder, AAA Battery Holder, 18650 Battery Holder, 2032 Battery Holder, 9V Battery Holder/Snap.

Battery Holder

Binding Post

Binding Post

A binding post is a connector commonly used on electronic test equipment to terminate attach a single wire or test lead. They are also found on loudspeakers and audio amplifiers as well as other electrical equipment,That’s why some times it’s also called speaker terminal. A binding post contains a central threaded metal rod/shaft and a cap that screws down on that rod. The cap is commonly insulated with plastic and color-coded: red commonly means an active or positive terminal; black indicates an inactive (reference or return) or negative terminal; and green indicates an earth (ground) terminal. Binding posts stand the test of time for good reason. They’re versatile, reliable, and easy to use. That’s why they’re ubiquitous in speakers, amps, test equipment, and electronics in general. With our vast selection of styles, sizes, and finishes, you’re sure to find the binding posts you need for your next project or repair! Daier binding posts are designed to prevent accidental contact with current carrying parts. They feature a “limited opening” captivated head to insure safety. Normally binding post is used together with Banana Plugs and Alligator Clips.

Binding Post

DC Power Jack

DC Power Jack

DC power jack connectors are small cylindrical connectors with a central metal pin. 2.1 X 5.5mm DC male & female Connectors (Audio Jack) are attached to a power cable using solder terminals, perfect for making a cable to the desired length or replacing a broken connector. The jack is mounted on the product to be powered, the mating cylindrical plug (not supplied by GCT) is normally mounted on a cable assembly connected to a power supply. Solder to the solder terminals and connect a DC Barrel plug into the end. 2.1mm DC Jack can be used under 6V, 9V, 12V, 24V DC Power Application to Media Player, MP3 Player, MP4 Player, Audio-Video Equipment, AV Equipment, Note Book, Cellular Phone, Mobile Phone, Cell Phone, Smart Phone, PDA, Car Audio, Guitar Effect Pedal, etc.

DC Power Jack

1/4 JACK

1/4 JACK

The 1/4 jack has mono and stereo type for your choice. Options include straight and right angle plugs, metal and plastic handles, two and three conductor. 1/4" Jack options include open frame, enclosed straight and right angle, PC terminals and solder lugs, two and three conductor. The jack connector, also known as phone jack, audio jack, headphone jack or jack plug, is a family of electrical connectors typically used for analog audio signals. It has 2.5mm (3/32″), 3.5mm (1/8″) and 6.35mm (1/4″) size, the most popular size is 1/4 inch jack. Also, it has male and female two types, suitable for guitar pedal, media player, MP3 player, MP4 player, audio-video equipment, etc.

1/4 JACK

Terminals

Terminals

The terminal is used to realize the electrical connection of a kind of accessories products, the industry is divided into the category of connectors. With the increasing degree of industrial automation and industrial control requirements more and more strict and accurate, the use of terminal gradually increased. With the development of the electronic industry, more and more terminals are used, and more and more kinds. The most widely used in addition to PCB board terminal, there are hardware terminal, nut terminal, spring terminal,Insulated Terminals, and so on. The terminals supplied by our company, mainly cold pressing terminals and insulated terminals, are matched with our switches/sockets/indicator lights. Because of our specialty, we will recommend the most suitable terminal to you.

Terminals

WAGO Connector
