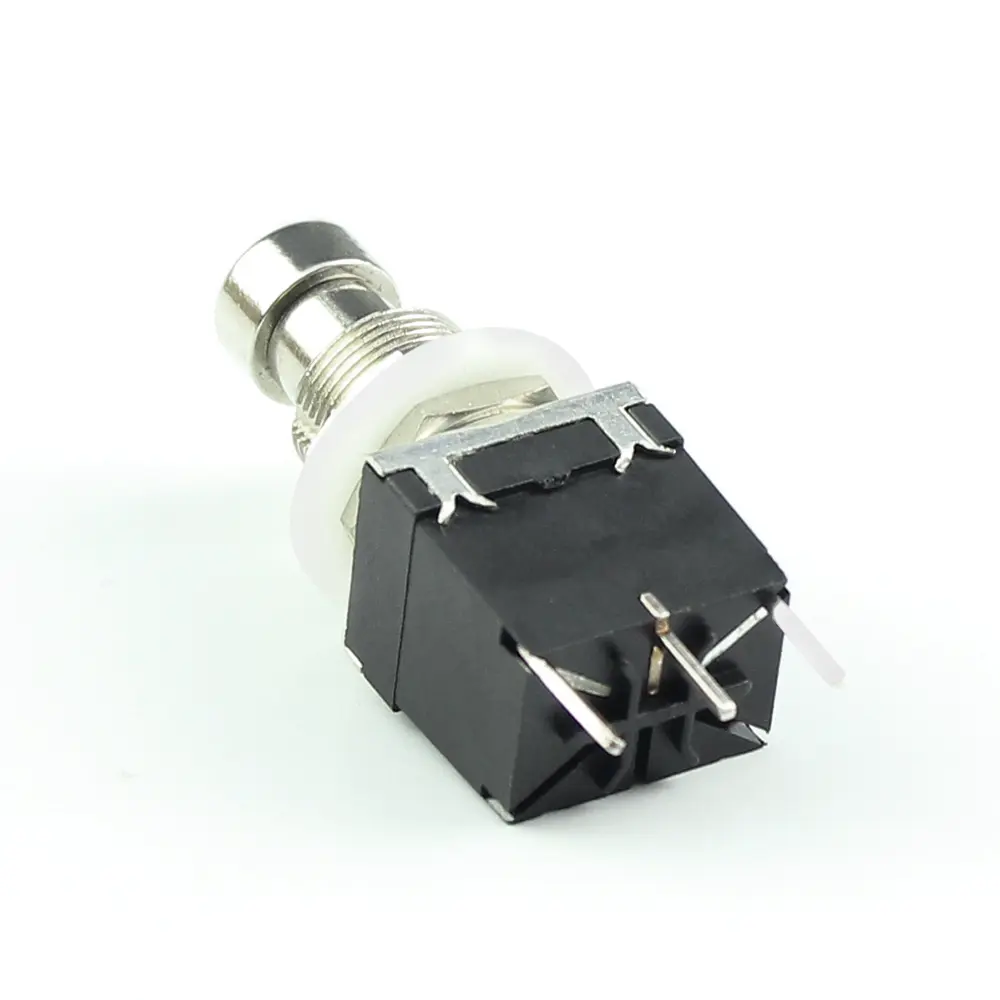

PBS-24-102P 3pin Guitar Latching Foot Switch


PBS-24-102P 3pin guitar latching foot switch, contact type: ON-ON, SPST; rated voltage: 4A 125V AC/2A 250V AC; terminal: 3 Pin.

The latching foot switch made of plastic and meta and for rewiring vintage pedals or effect boxes.

Category :

Foot Switch

PBS-24-102P 3pin Guitar Latching Foot Switch Details

  • Easy Installation

This switch saves the trouble of welding and makes the button type instantaneous switch easy to install and use.

  • Automatic Mechanism

The automatic mechanism immediately returns the switch to the standard position, thereby restoring the original switch state.

  • Sturdy Construction

Soft Touch Switch (No Click Sound when press down), It’s silent operation, easy to press and durable.

  • Wide Application

It is widely used in home improvement and control the operation of many small power electronic projects.

PBS-24-102P Datasheet

Rating 4A 125V AC; 2A 250V AC
Contact R 20mΩ max
Insulation 500V DC 100MΩ min
Dielectric Strength 1 Minute 1000V AC
Electrical Life 10,000 Cycles
L 14.2; 11.8; 9.8

PBS-24-102P Related Product

PBS-24-102P SPDT,  ON-ON
PBS-24-112P SPDT, ON-(ON)
