Compact Snap-Action Switches for OEM Assemblies
Sub-Miniature Micro Switches

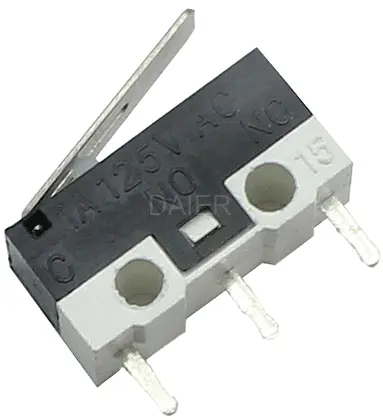

DAIER KW10 sub-miniature micro switches bring plunger, lever and roller actuation to compact mechanisms and computer peripherals. Solder and PCB terminal versions support wired and board-mounted assemblies.
- Product Family KW10 Series
- Actuator Styles Plunger, Lever & Roller
- Operation Momentary Snap Action
- Terminal Options Solder & PCB Versions
Sub-Miniature Micro Switch Models
KW10-Z0P
KW10-Z0P is rated for controlling electrical loads ranging from logic-level/computer-based circuits to limited power-duty switching (up to 3 A/125 Vac).
KW10-Z3P Normally Open Micro Switch
KW10-Z3P normally open micro switch is14.9mm in lever length
KW10-Z4P Roller Micro Switch
KW10-Z4P roller micro switch terminal is brass with sliver plated
KW10-Z1P
KW10-Z1P is rated for controlling electrical loads ranging from logic-level/computer-based circuits to limited power-duty switching (up to 3 A/125 Vac).
KW10-Z2P Lever Micro Switch
KW10-Z2P is available with either solder terminals or a variety of different styles of printed circuit board (PCB) terminals to fulfill the requirements for electrical connectivity.
KW10-Z7P Mouse Micro Switch
KW10-Z7P mouse micro switch is 13.5mm in lever length
Selection Guide
Compare Sub-Miniature Micro Switches
The KW10 family offers different actuator shapes and connection styles within a compact switch format. Compare these three features to find the version that fits the mechanism.
Actuator & Travel
A plunger receives direct pressure, while a lever extends the contact point. The roller version follows a moving surface. Actuator reach, operating travel and force determine how the switch engages.
Circuit & Load
Choose the contact state needed before and after actuation. Match the contact diagram and switching rating to the circuit voltage, current and load type.
Mounting & Terminals
Solder terminals connect to wiring; PCB terminals locate the switch on a board. Compare pin spacing, mounting holes and available clearance with the assembly drawing.
For compact designs, consider the space around the actuator as well as the switch body.
Applications
Typical Switch Applications
Compact snap-action switching for peripheral mechanisms, position detection and board-mounted assemblies.
Computer Peripherals
Compact KW10 models provide actuation options for mouse and peripheral mechanisms.
Position Detection
Choose direct, lever or roller actuation to detect movement or position in a compact mechanism.
OEM PCB Assemblies
Match terminal spacing, mounting points and actuator clearance to the board and enclosure drawing.
Common Questions
Micro Switch FAQs
Answers about actuators, connections, replacement and ordering.
For a Project Enquiry
Have a model code or reference photo? Send it with the required quantity.
Send Project DetailsKW10 switches combine a compact body with plunger, lever or roller actuation. Solder and PCB terminal versions provide connection options for peripheral mechanisms and small equipment assemblies.
Use a plunger for direct pressure, a lever when the contact point needs more reach, or a roller for contact with a moving surface. Compare approach direction, travel and operating force.
Normally open contacts close when actuated; normally closed contacts open. The required state before and after movement determines which connection to use on the model diagram.
Solder terminals suit wired connections. PCB versions connect directly to a board, where pin spacing, terminal direction and actuator clearance determine the layout.
Send the existing model code, a clear photo and quantity. A drawing showing the actuator position, mounting holes and terminals helps compare the fit.
Discuss Your Micro Switch Requirements
Send the model code and quantity for a quotation. For a new design or replacement, add a drawing or photo and a brief description of the application.
Prefer email? [email protected]
