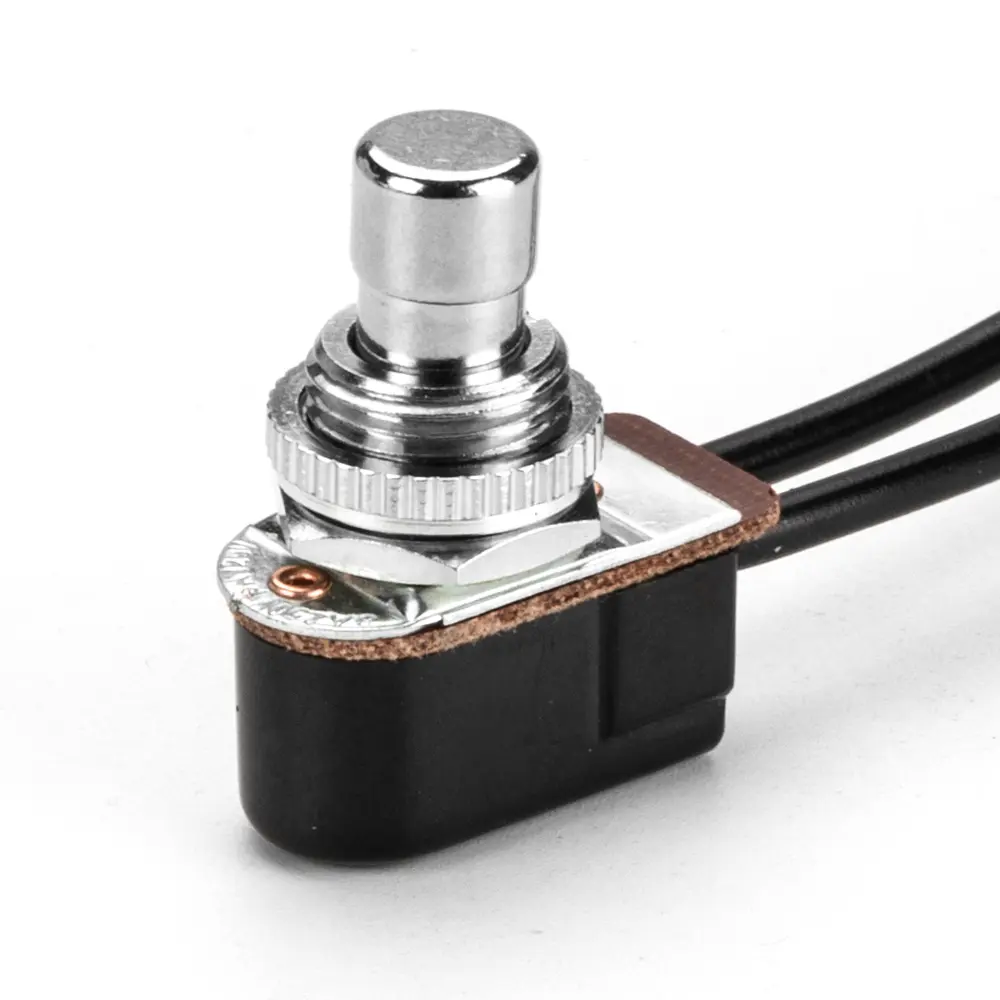

PBS-24B-4SW SPST Guitar Footswitch With Wiring
Part#PBS-24B-4SW
PBS-24B-4SW SPST guitar footswitch with wiring, contact type: OFF-(ON), SPST; rated voltage: 6A 125V AC, 3A 250V AC; terminal: 2 Pin.
This product is pre-wired in advance, making the installation more simple and convenient.
Category :
Foot Switch
PBS-24B-4SW SPST Guitar Footswitch Detail
- Easy Installation
This switch saves the trouble of welding and makes the button type instantaneous switch easy to install and use.
- Automatic Mechanism
The automatic mechanism immediately returns the switch to the standard position, thereby restoring the original switch state.
- Sturdy Construction
Soft Touch Switch (No Click Sound when pressing down), It’s silent operation, easy to press, and durable.
- Wide Application
It is widely used in home improvement and controls the operation of many small power electronic projects.
PBS-24B-4SW / PBS-24C-4SW Datasheet
| Rating Value | 3A 250VAC / 6A 125VAC | Ambient Temperature | -25℃~80℃ |
| Mechanical Life | >50,000 | Humidity | <85%Rh |
| Electrical Life | >20,000 | Withstand Voltage | ≥1500V 50/60Hz, last for 1min |
| Operating Force | ≤24N | Vibration | 10~55Hz,1.5mm |
| Dielectric Strength | 1,000V RMS (MIN) | Mounting Method | Bushing mount |
| Insulation Resistance | 100MΩ (MIN) | Poles | SPDT |
| Base Material | Polypropylene material | Dimensions | φ12mm+0.2 |
PBS-24B-4SW Related Product
| PBS-24B-4SW | OFF-(ON), SPST, 2P solder lugs, with wiring |
| PBS-24C-4SW | ON-(OFF), SPST, 2P solder lugs, with wiring |
Still, have a question about the PBS-24B-4SW and PBS-24C-4SW that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
