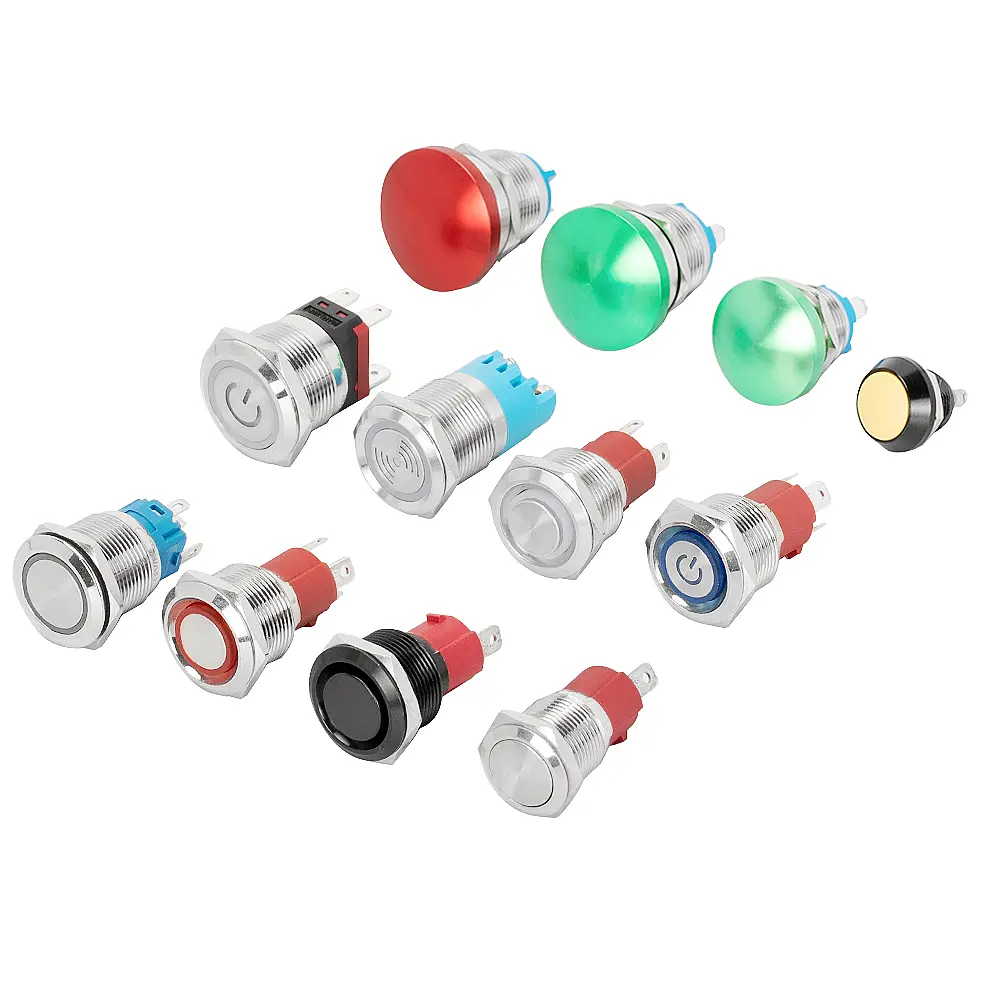

Anti-vandal switch is a category of push button switch, usually referring to metal push button switch (the actuator and housing are made of metal). Metal switches are hard-wearing and ideal for devices which require repetitive/high usage, such as pedestrian crossings, coffee machines, lifts, access control systems, and even push-to-start button engine in cars.
In addition to the difference in appearance, another difference is that anti-vandal switches are all waterproof, IP65, IP67 or IP68, and anti-vandal switches with a long life of 50,000 cycles.
Daier Electron Co., Ltd has a range of options to help customers find the correct metal push button switch for your design: Our metal switches’ cut-out mounting diameters include 8mm, 10mm, 12mm, 16mm, 19mm, 22mm, 25mm, 30mm, and 40mm.
LED Options: LED illumination of ring, dot, power logo, or custom symbols with single color, bi-color or RGB triple color. Alternatively, all metal push button switches are available without LED illuminated.
Switch Function: Momentary or Latching (alternate) for your selection. Momentary means the actuator of the switch returns immediately when releasing the finger after pressed. Latching metal push button switch means that when it is first pressed, the central part of the switch stays down (latched) and requires to be pressed again to return to its normal state.
Many of our push button metal switches are available in a variety of finishes such as brushed steel, colorful anodized, chrome finish to support your design.The terminals of our metal switches can be soldered or quick connected, and you can also choose the harness that we supply.
8MM Metal Push Button Switch8mm push button switch is a metal push button switch with 8mm in diameter. Have 2 Pins Self-locking Latching and Self-reset Momentary for your choice. Support a variety of LED display illumination options and colours.Have white, red, blue and green LED with 12V, 24V, 110V and 220V.
8MM Metal Push Button Switch
10MM Anti-VandalWe provide a wide range of panel mounts, push button metal switches which are used for a wide range of industries and appliances. 10mm mounting size is one of our sizes. It's waterproof IP 65, available in brushed steel and anodized aluminum (black standard), Select from momentary or latching functioning push button switches.
12MM Anti-Vandal12mm Push Button Switches are electromechanical components, designed to turn a device on/off or control a set function within an electronic device. Have a flat button and a high button for your choice.ON Off Round Pushbutton Switch for Car Marine Boat.
16MM Anti-Vandal16mm waterproof metal switch is one of the most popular items. With LED Illumination of Ring, Dot, Power logo, or Custom Symbol. Many of our metal switches are available with Single LED illumination, Bi-Colour LED illumination, and/or RGB. Red, White, Green, and Blue LED options. Alternatively, all our metal push button switches are available without LED illumination.
19MM Anti-Vandal19mm metal push button switch, as it is a full metal appearance and with a rubber ring, the switch achieves IP65 waterproof degree. It can be used in a wet environment, such as boat control panels, kitchens, outdoors, etc. Note that this switch can be used under water. The Mechanical work Life is 500,000 times
22MM Anti-Vandal22MM Anti Vandal push-button switch, contact mode: 1 NO, 1 NO 1 NC SPST, 2 NO 2 NC DPDT. Shell Metarial: metal material & IP65 waterproof protection；Mechanical life : 1000,000 cycles ；Electrical life: 200,000 cycles. Self-locking Latching and Self-reset Momentary for your choice. Support a variety of LED display illumination options and colors. Have white, red, blue and green LED with 12V, 24V, 110V, and 220V.
