What are Micro switches?Microswitches, also known as snap switches, are operated by using spring-loaded levers to open and close the two internal coordinates inside the device. Micro switches are inexpensive parts that can function for a very long time. And some of the parts can withstand more than 10 million cycles before they break down. The switches are used in a variety of different applications, but their main characteristics being easily actuated and incredibly durable make them common in consumer devices, industrial applications and other uses where they endure many cycles over their lifespan.
How does the micro switch work?The power supply is usually connected to a common terminal, which leads to the switch and supplies power to the spring. Because the spring contacts the normally closed pin, the power supply is sent out here that is called a stationary state. Once the robotic arm moves, the power is transferred to the regular budget.
Where can you find them?These are small devices, usually only designed to carry low current and low voltage. These switches are very safe because they are reliable, cheap, and can be circuited when needed, thereby preventing someone from the opening: the machine or closing the door, so safety devices are often used. Daier provides sealed miniature and ultra-miniature microswitches that comply with industry standards and RoHS regulations. Daier’s MICRO SWITCH switches fill many roles in customers’ applications. Also, it includes presence, absence, positioning as well as inspection, recognition, condition measurement, etc. From sealed switches used in high temperature aerospace applications to large cable-pull switches that ensuring safety on conveyors, Daier is the right switch! MICRO SWITCH series standard miniature basic switches are precision snap-action mechanisms enclosed in accurately molded plastic cases. Besides, these switches are designed for high precision, presence/absence detection, where physical contact with an object is permissible and in simple on-off actions. These switches are suitable for application flexibility. Furthermore, Daire's certifications include CE, CQC, & TUV. Normally, the annual production of microswitch in Daier is very huge, we can meet all of the requirements from each customer. With years of design and manufacturing experience, Daier Electron is the market leader in the micro switch. We have 20 years of design experience, we are your best choice.
Rocker SwitchesRocker switches are a means to open and close a circuit. In this case, the switch involves a piece that “rocks” back and forth in order to do this.
Getting StartedOne of the most common method of using a rocker switch is on a light switch, but they are in quite a few other devices and applications as well including surge protectors and appliances. It is possible to change existing switches and turn them into rocker switchers. These sorts of switches are advantageous to many types of applications because they have a relatively small profile and they require actual manual manipulation in order to activate. Because of the nature of the rocker switch, they work well with appliances, tools, lights, and more. Large rocker switches that are easy to manipulate are helpful for those who do not have fine motor control, as they would have to do if the device had a toggle switch instead. The rocker switch received its name because of the way in which it works. The user will rock the switch in one direction or the other, which will open or close the circuit. These sorts of switches will generally have an up and down motion, but a side-to-side motion is possible as well, depending on the device and the location of the switch. In the case of a surge protector, they have a back and forth motion since they are on the floor, but the general conceit is the same. They simply rock back and forth. Rocker switch is Daier main product. Daier Electron snap-in rocker switches offer countless options for ratings, circuits, colors, illuminations and symbols. As a matter of fact, these single or double pole switches feature removable actuators in a choice of actuator styles and colors. Also, it may be purchased and stocked separately. An optional plug-in terminal connector enables pre-wiring of wire harness. These switches are vibration, shock, thermoshock, moisture and salt spray resistant. At the same time, its operating temperature is ranging from -40°C to 85°C. With years of design and manufacturing experience, Daier Electron is the market leader in rocker switch. We have 20 years of design experience. Of course, Daier is your best choice.
Push Button Switch
Daier extensive range of standard miniature, subminiature and ultra-miniature push button switch for printed circuit board, surface mount and panel mount applications. It includes momentary and latching versions with the widest selection of actuator styles, shapes and colors. Available in SPST, SPDT, DPST and DPDT functions, Daier push button switch are also available in illuminated, sealed and low-profile configurations, and with smd, threaded or snap-in mounting options. Whether you need to switch signal level or power, a sealed or backlit solution, DAIER provides the largest selection of pushbuttons. Innovative pushbutton designs for the most demanding applications keeps Daier at the forefront of pushbutton switch technology. Daier push button switches range in size from miniature to industrial power switches. What's more，it is available in non-illumination or illumination with multiple LED color options. Push button switches offer long travel.
Push Button Switch
A quality product containing parts manufactured from brass, steel and alloy materials. The barrel is finished in chrome with a polished bezel. The lock is a separate item with a chrome finished body that fits into the barrel, after mounting, in any one of four positions. The tumblers of the lock are made from brass, steel and bronze.
Daier Electronics tact switch is advanced, compact and thin switch for which our original precision processing technology has been used. This product offers excellent dust- and waterproof properties (Equivalent to IP67), and embodies high clicking performance and high reliability. This switch is best suited for locations where space is small and reliability is required, as for s mart phones, wearable devices, or vehicle parts. Daier offers a wide variety of tactile switches including 6mm process sealed, ultra-thin, and low profile tactile switch options. Daier tactile switches are specially sealed to permit automated wave soldering and washing. Logic-level surface-mount and PC board mounting options. Lighted and non-illuminated models and with various heights and operating force are designed to meet virtually any application.
Slide switch featuring ultra-miniature, micro, miniature, standard, industrial and power versions, C&K has slide switches compatible for printed circuit board, surface mount and panel mount applications. Available in SPST, SPDT, SP3T, DPST, DPDT, 3PDT, 4PDT and 4P3T functions, Daier provides slide switches with positive detent, sealing, and shorting or non-shorting contacts options. Daier’s many kinds series of slide switches give engineers more design flexibility and options when it comes to size, mounting, actuation types, ratings and packages. Whether you develop controllers or consumer goods; headphones or HVAC controls; portable speakers or laptops; audio equipment or alarms, DAIER slide switches quickly integrate into your next design.
With years of design and manufacturing experience, Daier is the market leader in marine application switches, switch panel and car sockets. From small boats to luxury yachts, small car to truck, OEM design engineers trust our products not only for their style but also for their performance. Daier's switches are widely used and the most recognizable switch brand in the industry with unmatched quality and aesthetics. Our marine switch panel is guaranteed to perform under extreme marine environments while keeping boats and boaters safe from electrical currents. By drawing upon over 20 years of design experience, Daier is also able to provide custom product solutions that are sure to meet the most stringent design requirements.
With the active support of our team of experts, we are engaged in offering a huge gamut of Indicator Lights. Our company is highly acclaimed in offering a wide range of Indicator Lights. We offer this superior make Indicator Light as per the diverse needs of our client. Being economically priced, this Indicator Light is very popular in the industry. We are amongst the prominent organizations that are involved in offering a wide array of Indicator Lights. These Indicator Lights offered by us are manufactured using high grade quality materials that are thoroughly tested. Besides, these Indicator Lights are available in different colors and have long functional life.
Fuse holder can be used in any applications where you need to ensure electrical protection, isolation and switching under load of inductive or resistive loads. The technology solutions applied to reduce power dissipation help to minimize module heating. Fuse holders are suitable for protection against overloads and short circuits. Daier offer fuse holders and fuse part for 15 years. Now Daier have glass fuse holders and inline fuse holders. Good glass fuse-holder fits 5x20mm, 6x30mm and 10x38mm grass fuse. Quality rubber fuse holders fits ATC/ATO size fuses. Holds and encloses fuse securely. Hinged cover protects fuse from impact, water and dust. 12-inch wire loop is made of 18 gauge flexible stranded red wire.
Power outlet allow electric equipment to be connected to the primary alternating current (AC) power supply in buildings and at other sites. Electrical plugs and sockets differ from one another in voltage and current rating, shape, size, and connector type. Different systems of plugs and sockets have been standardized, and different standards are used in different parts of the world. Daier offer many kinds of power outlet and plug for 15 years. Coordination of technical standards has allowed some types of plug to be used across large regions to facilitate trade in electrical appliances, and for the convenience of travellers and consumers of imported electrical goods. Some multi-standard sockets allow use of several types of plug; improvised or unapproved adaptors between incompatible sockets and plugs may not provide the full safety and performance of an approved socket–plug combination. Application to: TV, LCD TV, LCD Monitor, Set Top Box, DVD Player, DVR Recorder, Audio-Video Equipment, AV Equipment, Power Units, Industrial Equipment, personal computers, Consumer Electronics, Home Theater and peripherals… etc.

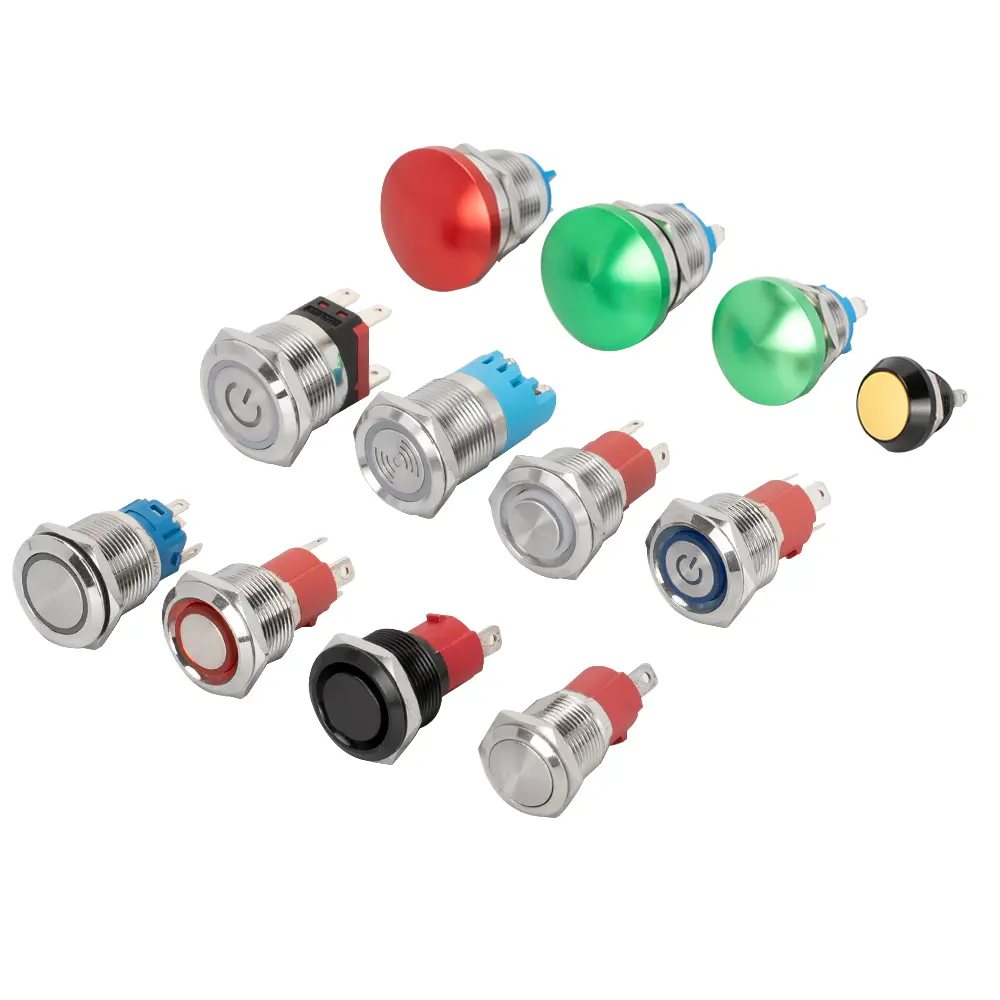

Anti-vandal switch are waterproof switch with many kinds of mount hole diameter. Anti-vandal switches can be found on kiosk and public ticket dispenser applications, along with other industrial type applications that require vandal resistance in a public setting. With a wide variety of options, including illuminated, sealed and long life expectancy. They are RoHs certified, offering a rating of 3A 250VAC. The switch has even more features: it is IP67 rated and has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching). It offers multiple color ring illumination options,and multiple voltage options. For LED, it offers one color, bi-color, tri-color options. It comes with 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. panel cutout size and SPDT or DPDT function. For the switch body shell, plastic and metal are available, it offers multiple color options including black, white, yellow, blue, green, red, nickel and stainless steel.
Overload protector are a type of switch designed to disrupt electrical current when an overload or short occurs. The overload protector carried at Daier are primarily automotive circuit breaker options, but can also be used in a variety of other electrical applications requiring circuit protection. Most DC circuit breaker options are thermally controlled, meaning during an over current condition, the additional current will cause excess heat to build up in the circuit breaker. With this excess heat, the breaker will trip, making it an essential safety component providing thermal overload protection to diverse applications including, marine, automotive, ambulance, fire equipment, portable generators, and other electrical applications. Available in Type 1 automatic reset, Type 2 modified reset and Type 3 manual reset, Daier has the largest selection of circuit breakers for your 12V electrical needs. Daier carries many types of circuit breakers ranging from 10A to 200A including: Hi-Amp panel or surface mount, mid-range panel or surface mount, stud mount or canned breakers, push button circuit breakers, ATO/ATC fuse style, Maxi and Mini fuse style circuit breakers, AGC fuse style circuit breakers and switch breakers. Characteristics differ across the circuit breakers offered, but all are single pole. The different characteristics of each of the types of circuit breakers provide you with different benefits for different applications that require a DC circuit breaker. Differences between each offering can include voltage range, amperage range, mounting style, compatibility and fuse blade types. The automotive circuit breaker variety offered by Daier allows the right protection needed for many different electrical application demands. The high amperage, mid-range and some low amperage breaker switches are designed to be panel mounted or surface mounted. Blade types are designed to be inserted into fuse panels and can upgrade the panel to circuit breaker protection with the same blade fuse configuration and size. With so many types of circuit breakers available, finding a breaker compatible to your application is easy. Some of the offerings below are specifically meant for wet environment or marine applications, while others are meant to be used as automotive circuit breaker switches. Many of the DC circuit breaker options offered are 12V circuit breaker switches. However, there are a variety of voltages available to meet the demands of multiple applications. Specific ratings can be found on each individual product line.
Daier series of surface mount half-pitch DIP switch, low profile and standard profile DIP switch, rotary and coded DIP switches, coded rotary DIP switches, SIP switches and jumper switches. They feature a variety of extended actuator and flush actuator styles. Also, Daier DIP switches are available in surface mount, through-hole, right angle and vertical mounting options. Most Daier miniature and ultraminiature DIP switches are process sealed for automated assembly (some require tape seal). What's more, they are available in SMT and thru-hole termination. Our large selection includes surface mount, through-hole, rotary, standard and half pitch, and multiple actuator designs. Consistent high contact pressure is achieved with a spring and ball contact system on select series. Other features include a low-profile, miniature versions, standard base seal, optional top-tape seal and also tape and reel packaging. Our DIP switch can be customized for your specific application.
A battery holder is one or more compartments or chambers for holding a battery. For dry cells, the holder must also make electrical contact with the battery terminals. For wet cells, cables are often connected to the battery terminals, as is found in automobiles or emergency lighting equipment. A battery holder is either a plastic case with the shape of the housing moulded as a compartment or compartments that accepts a battery or batteries, or a separate plastic holder that is mounted with screws, eyelets, glue, double-sided tape, or other means. Battery holders may have a lid to retain and protect the batteries or may be sealed to prevent damage to circuitry and components from battery leakage. Coiled spring wire or flat tabs that press against the battery terminals are the two most common methods of making the electrical connection inside a holder. External connections on battery holders are usually made by contacts with pins, surface mount feet, solder lugs, or wire leads.
Our selection of electrical auto switch and relays. Our auto switch line includes toggle switches, rocker switches, high power battery switches, marine grade switches, keyed switches, push and pull switches, and switch panels. We also carry 12 volt automotive relays such as the standard 5 prong relays, as well as high amperage relays up to 200 amps, and solenoids for high power switching. Our toggle switches and rocker switches are dual voltage and can be used for either low voltage 12 volt and 24 volt DC switching or 120-240 volt AC switching. They are also available in different switching configurations such as SPST (single pole single throw), SPDT (single pole double throw), DPST (double pole single throw), and DPDT (double pole double throw). On, Off, and Momentary On switch functions are available for the toggle switches and rocker switches as well. Automotive companies worldwide have come to rely upon Daier’s reliable, high-performance, high-quality switches to power their innovative applications and designs. Features such as tight product tolerances, haptic-on-demand, acoustical adaptation, environmental & process sealing and mechanical or electrical interface integration are the core values of automotive switching – and Daier is known for successfully delivering these to customers for more than 15 years.
Daier builds many kinds of aluminum enclosures, at present all of them are used as Guitar Effect. The material is made by Aluminum Alloy, Diecast, or CNC Solid. Unpainted Pedal Box is Vibra finished for a smooth surface with no sharp edges. Colorful Pedal Box is Powder coated, Spray painted, or Anodized. Daier provides custom CNC Machining, Painting, Silkscreening. Are you ready to use when you receive them? Standard versions are designed to meet IP54. THEBox and Lid are Shrink-wrapped and Comes with 304 Stainless Steel Screws. Hammond Clone Guitar Effect Pedal Stomp Box Enclosure size as below:
- 1590LB Pedal Stomp Box is 50.5*50.5*31mm
- 1590G Pedal Stomp Box is 100*50*26mm
- 1590A Pedal Stomp Box is 92.5*38.5*31mm
- 1590B Pedal Stomp Box is 112*61*32mm
- 1590BS Pedal Stomp Box is 112*61*42mm, Taller 1590B
- 125B(1590N1) Pedal Enclosure is 122*66*39.5mm
- 1590BB Pedal Stomp Box is 120*94.5*34mm
- 1590BB2 Pedal Stomp Box is 120*94*38mm, Taller 1590BB
- 1590C Pedal Stomp Box is 120*94.5*50mm, Taller 1590BB
- 1590XX(1790NS) Pedal Stomp Box is 145*121*39.5mm
- 1032L Looper Stomp Box is 254*71*52.5mm
- 1590DD Pedal Stomp Box is 188*119*37.5mm
- 1590D Pedal Stomp Box is 188*119*56.5mm, Taller 1590DD
- GEP-2 Wah Wah Pedal Enclosure with kits.
Banana plugs, jacks and binding posts have become the connection of choice at almost all levels of audio. The relative ease of termination and the time tested reliability of the connector provide one of the best solutions for audio professionals and enthusiasts alike. These banana plug accept a wide range of wire diameters to suite the needs of your system. A small screwdriver is the only extra tool you need for terminating the wires; no crimping and no soldering. Color coded vinyl insulators made of highly conductive brass, slide easily over the connector and are long enough to provide added protection from accidental short circuits when pulled up to the mating jack surface. Includes connectors and insulators to create equal pairs of plugs.
A binding post is a connector commonly used on electronic test equipment to terminate attach a single wire or test lead. They are also found on loudspeakers and audio amplifiers as well as other electrical equipment. A binding post contains a central threaded metal rod and a cap that screws down on that rod. The cap is commonly insulated with plastic and color-coded: red commonly means an active or positive terminal; black indicates an inactive (reference or return) or negative terminal; and green indicates an earth (ground) terminal. Binding posts stand the test of time for good reason. They're versatile, reliable, and easy to use. That's why they're ubiquitous in speakers, amps, test equipment, and electronics in general. With our vast selection of styles, sizes, and finishes, you're sure to find the binding posts you need for your next project or repair! Daier binding posts are designed to prevent accidental contact with current carrying parts. They feature a “limited opening” captivated head to insure safety.
A alligator clip is a sprung metal clip with long, serrated jaws which is used for creating a temporary electrical connection. This simple mechanical device gets its name from the resemblance of its jaws to that of an alligator's or crocodile's. It is used to connect an electrical cable to a battery or some other component. Functioning much like a spring-loaded clothespin, the clip's tapered, serrated jaws are forced together by a spring to grip an object. When manufactured for electronics testing and evaluation, one jaw of the clip is typically permanently crimped or soldered to a wire, or is bent to form the inner tubular contact of a ~4 mm female banana jack, enabling quick non-permanent connection between a circuit under test and laboratory equipment or to another electrical circuit. The clip is typically covered by a plastic shroud or "boot" to prevent accidental short-circuits.
