Snap-Action Switches for Equipment Mechanisms
Medium Micro Switches
DAIER medium micro switches offer plunger, lever and roller actuation for equipment and appliance mechanisms. Browse KW1, KW and BVM3 models to compare actuator reach, contact arrangement and installation layout.
- Product Range KW1, KW & BVM3
- Actuator Options Plunger, Lever & Roller
- Actuator Reach Multiple Lever Styles
- Selection New & Replacement Assemblies
Medium Micro Switch Models

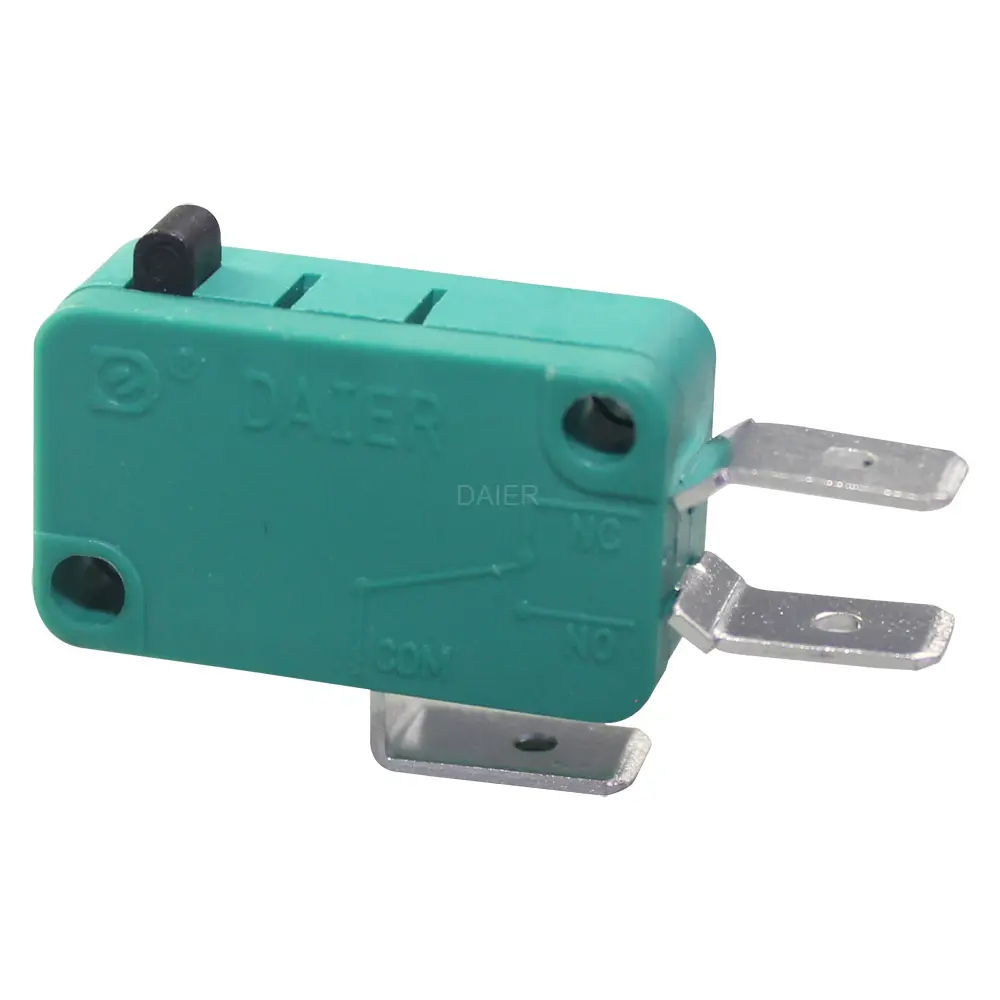

KW1-103-5
KW1-103-5 spdt micro switch electrical life ≥ 10,000 Cycles
KW1-103-11
KW1-103-11 micro switch 250v rating is 16A 250VAC/20A 125VAC
KW-1038
KW-1038 limit micro switch rating is 16A 250VAC/20A 125VAC
KW1-103-1
KW1-103-1 micro switch house color have green or black or red
KW1-103-2
KW1-103-2 microswitch electrical ratings from low levels up to 26 Amps
KW1-103-3
KW1-103-3 micro switch type have many certifications are CE, CQC, TUV, SGS
KW1-103-4
KW1-103-4 micro lever switch contact resistance ≤30mΩ
KW1-103-6
KW1-103-6 roller lever micro switch switch operation is OFF - momentary ON
KW1-103-7
KW1-103-7 micro switch roller lever operating temperature is -25℃~+85℃
KW1-103-12
KW1-103-12 lever switch have many house color like green or black or red
KW1-103-13
KW1-103-13 electric micro switches use brass with sliver plated terminal
KW1-103-Z2B-D
KW1-103-Z2B-D dpdt-micro-switch ambient temperature Used〈85% RH
KW1-103-Q
KW1-103-Q micro switch manufacturers contact configuration is SPDT
KW-1039
KW-1039 micro door switch electrical life ≥ 10,000 Cycles
KW-1037
KW-1037 limit switches use Iron with nickle plate to made of lever
BVM3
BVM3 microswitch industrial dielectric strength is 1500VAC 1 minute
Selection Guide
Compare Medium Micro Switches
This range brings together KW1-103 variants, KW-1037, KW-1038, KW-1039 and BVM3. Actuator style and installation layout provide the clearest starting points for comparing models.
Actuator & Travel
Plungers receive direct pressure; levers extend the contact point. KW1-103-6 and KW1-103-7 show roller-lever options for contact with moving parts.
Circuit & Load
Choose the contact state and number of circuits required by the equipment. Use the model diagram and switching rating to match the circuit voltage, current and load type.
Mounting & Terminals
Body dimensions, hole spacing and terminal direction affect installation. Compare these details with the equipment drawing, together with room for actuator movement and wiring.
For replacement work, a photo of the installed switch helps show the contact point and connection layout.
Applications
Typical Switch Applications
Mechanical actuation for appliance assemblies, moving equipment parts and replacement installations.
Appliance Mechanisms
Use movement within the appliance assembly to operate a plunger or lever at the required contact point.
Equipment Position Detection
Lever and roller actuators provide contact points for detecting the movement or position of equipment parts.
OEM & Replacement Assemblies
Compare switch body, actuator and terminal layouts for a new assembly or replacement in existing equipment.
Common Questions
Micro Switch FAQs
Answers about actuators, connections, replacement and ordering.
For a Project Enquiry
Have a model code or reference photo? Send it with the required quantity.
Send Project DetailsThe category includes KW1-103 actuator variants, KW-1037, KW-1038, KW-1039 and BVM3. Browse the models to compare actuator shapes and installation layouts.
A roller provides a rolling contact point against a moving surface. Its position and lever reach help determine where the mechanism operates the switch.
A double-pole arrangement can operate two circuits together. Specify the required contact sequence and use the diagram for the complete ordering code to identify the matching version.
Compare the body, mounting holes, actuator position and terminals. Operating travel and force also matter when the existing mechanism must actuate the replacement in the same position.
Send the full model code and quantity. For a new design, include a drawing or photo of the mechanism and a brief description of the switching requirement.
Discuss Your Medium Micro Switch Requirements
Send the model code and quantity for a quotation. For a new design or replacement, add a drawing or photo and a brief description of the application.
