SMTS Series for Electronic Equipment
Sub-Miniature Toggle Switches

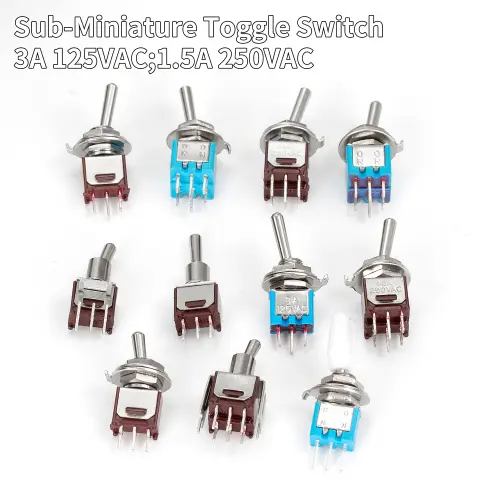

DAIER SMTS sub-miniature toggle switches provide compact manual control for instruments, communication equipment and electronic assemblies. The range includes ON-OFF, ON-ON and ON-OFF-ON functions, with single-pole and double-pole configurations and solder or PCB terminal options by model.
- Series SMTS Sub-Miniature
- Functions ON-OFF / ON-ON / ON-OFF-ON
- Contacts Single-Pole & Double-Pole
- Terminals Solder & PCB Options
SMTS Switch Models & Accessories
SMTS-101 Sub Minature Toggle Switch
- Function: ON-OFF
- Poles: Single Pole
- Terminals: 2 Solder Terminals
SMTS-202 ON-ON 2 Way Toggle Switch
SMTS-202 ON-ON 2 Way Toggle Switch DPDT with 6 Terminals
SMTS-203-2A1 ON-OFF-ON Toggle Switch
SMTS-203-2A1 ON-OFF-ON Toggle Switch, DPDT With 6 Terminals
SMTS-102 ON-ON Mini Toggle Switch
SMTS-102 ON-ON Mini Toggle Switch SPDT with 3 terminals
SMTS-103-2A1 Single Pole Toggle Switch
SMTS-103-2A1 Single Pole Toggle Switch with ON-OFF-ON Function
SMTS-102-2C3 PC-H Terminal Toggle Switch
SMTS-102-2C3 PC-H Terminal Toggle Switch, SPDT 3 pins
WPC Series Waterproof Rubber Toggle Switch Cover
The rubber toggle switch cover for MTS Miniature toggle switches and KN3C toggle switches. Screw on the tough weatherproof rubber cover to protect all GB toggle switches from moisture and dust.
Product Range
Compact Switches for Electronic Assemblies
The SMTS range covers compact lever-operated switches for panel and PCB assemblies. Compare the switching function, contact arrangement and terminal style for the exact part number. A similar appearance does not mean that two models have the same circuit or mounting footprint.
Single-Pole Functions
SMTS-101 provides ON-OFF control with two solder terminals. SMTS-102 provides SPDT ON-ON switching with three terminals, while SMTS-103-2A1 adds an OFF position between the two ON positions.
Double-Pole Functions
SMTS-202 provides DPDT ON-ON switching with six terminals. SMTS-203-2A1 provides DPDT ON-OFF-ON switching. Check the circuit diagram when your assembly needs two circuits operated by one lever.
Solder & PCB Terminals
SMTS-102 and SMTS-202 product pages list solder-terminal models and A2 PCB versions. The SMTS-102-2C3 is a three-pin PC-H terminal model. Confirm the terminal direction, pin spacing, bushing and panel clearance against the drawing.
Electrical Ratings & Accessories
The published SMTS-101 and SMTS-202 specifications list 3A at 125VAC and 1.5A at 250VAC. These are model-specific AC switching ratings, not a universal DC rating. For DC or inductive loads, send the operating voltage, current and load type for confirmation.
Toggle switch covers are shown as related accessories. The WPC page lists MTS and KN fitments; compatibility with an SMTS switch and the required sealing performance need separate confirmation.
Supply & OEM Enquiries
Send the full model code, terminal version and quantity for a quotation. OEM/ODM enquiries can include a drawing, circuit function and assembly requirements. Sample availability, packaging, minimum order quantity, lead time and any required certification documents should be confirmed for the quoted part.
