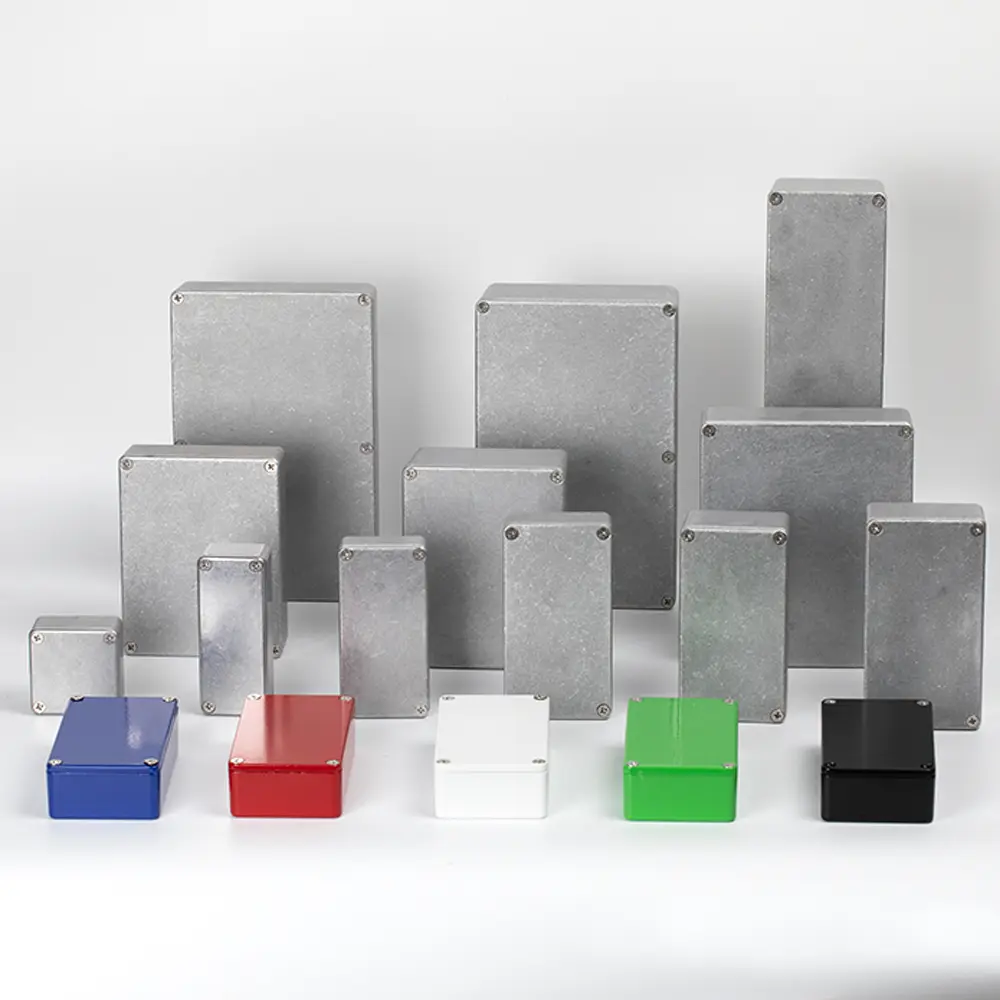

Guitar Pedal Enclosures

Do not use overall length, width and height as the usable PCB space. Wall thickness, corner radii, lid fixing posts and component projections affect the available room. Use the dimensional drawing and your component layout to verify the board, switches, jacks and closed-lid clearance.

Die-cast versions use a cast aluminum-alloy body. CNC versions are machined from solid aluminum and are listed with custom size and hole options. Choose the construction around the required geometry, surface finish and machining details; the same appearance does not confirm the same internal dimensions.

Yes. The catalog lists drilling, CNC machining and silkscreen options for enclosure orders. Provide a dimensioned hole layout, orientation, finish requirement and artwork so the required work can be reviewed. Available processes and the final supply condition depend on the enclosure and order specification.

It is an enclosure and mechanical-parts kit. The listing includes a rubber tread plate, an aluminum bottom plate and installation parts. Confirm the included hardware against the kit list and specify the electronics and control components separately when planning the complete pedal assembly.

No. Protection depends on the exact enclosure version and the completed assembly, including the lid joint, drilled openings, switches and connectors. A coating or a metal body alone does not establish an ingress-protection rating for the finished pedal. State the exposure conditions if protection is a project requirement.
