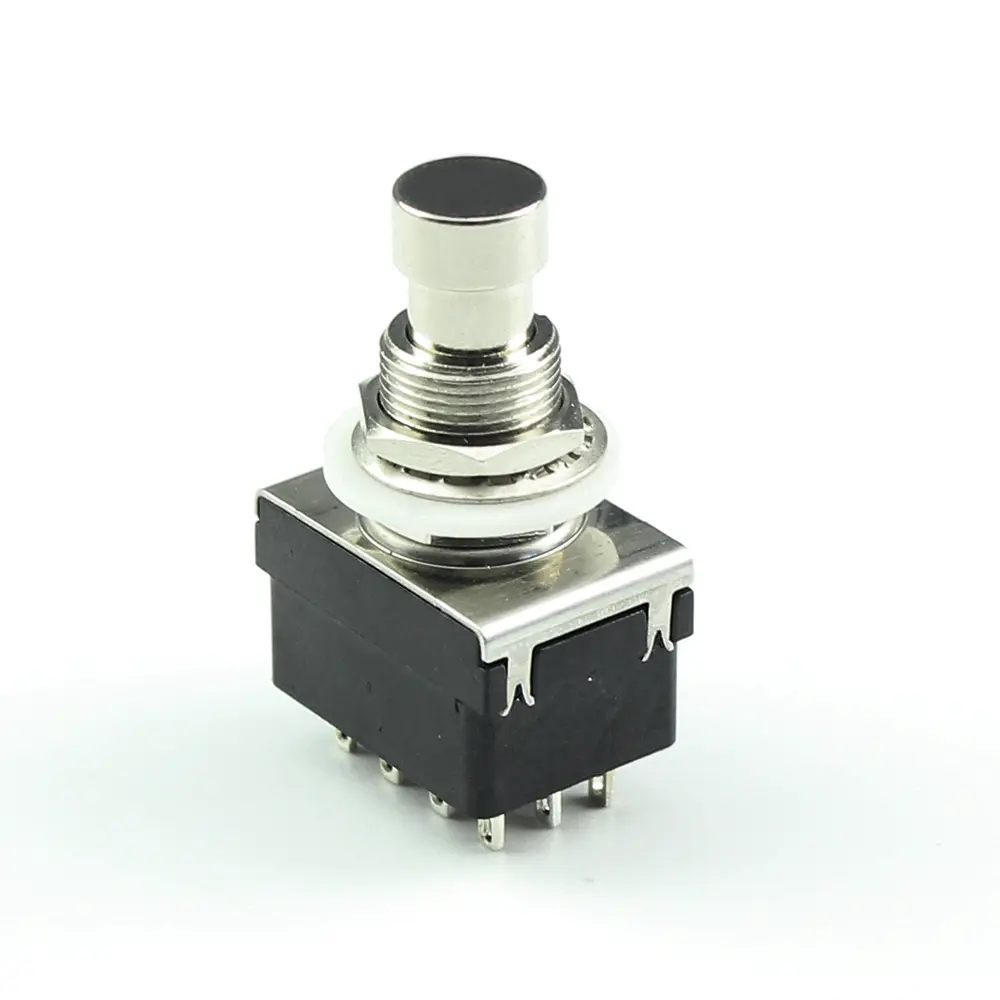

PBS-24-402 Guitar Pedal Solder 4PDT Foot Switch

Part#PBS-24B-402

PBS-24-402 guitar pedal 4PDT foot switch, contact type: ON-ON; rated voltage: 6A 125V AC, 3A 250V AC, 4A 30V DC; terminal: 12 Pin solder lugs.

Compared with the 3PDT switch, it is an additional electrode and uses high-temperature plastic housing and epoxy high-quality internal components.

Category :

Foot Switch

PBS-24-402 4PDT Foot Switch Details

  • Easy Installation

This switch saves the trouble of welding and makes the button type instantaneous switch easy to install and use.

  • Automatic Mechanism

The automatic mechanism immediately returns the switch to the standard position, thereby restoring the original switch state.

  • Sturdy Construction

Soft Touch Switch (No Click Sound when press down), It’s silent operation, easy to press and durable.

  • Wide Application

It is widely used in home improvement and control the operation of many small power electronic projects.

PBS-24-402 / PBS-24-412 Datasheet

Rating 6A 125V AC; 3A 250V AC; 4A 30V DC
Insulation Resistance ≥100 MΩ (Min), 500V DC
Contact Resistance 30mΩ (Max)
Dielectric Strength 1000V AC / 1minute
Electrical Life ≥10,000 Cycles

PBS-24-402 Related Products

PBS-24-402 4PDT, Solder Lug, ON-ON
PBS-24-412 4PDT, Solder Lug, ON-(ON)
PBS-24-402P 4PDT, PBC Lug, ON-ON
PBS-24-412P 4PDT, PBC Lug, ON-ON

Still, have a question about the PBS-24-402 and PBS-24-412 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
