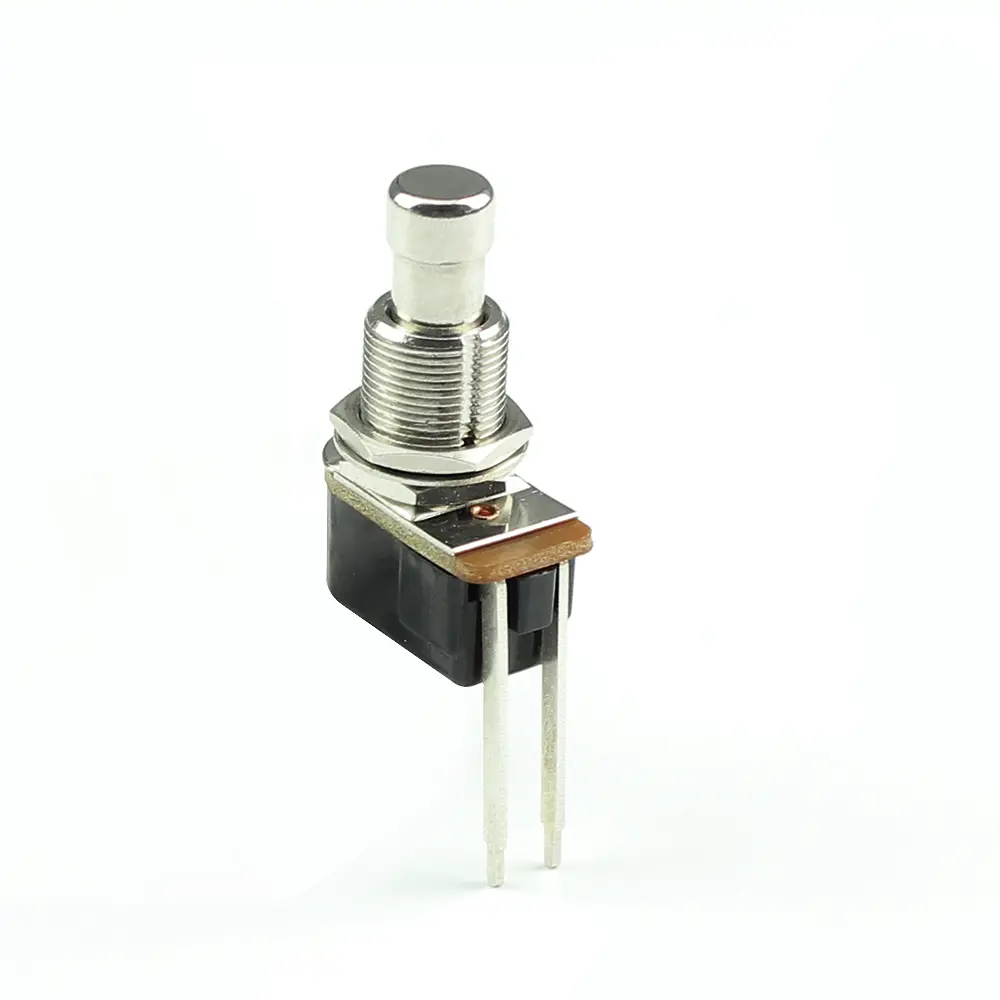

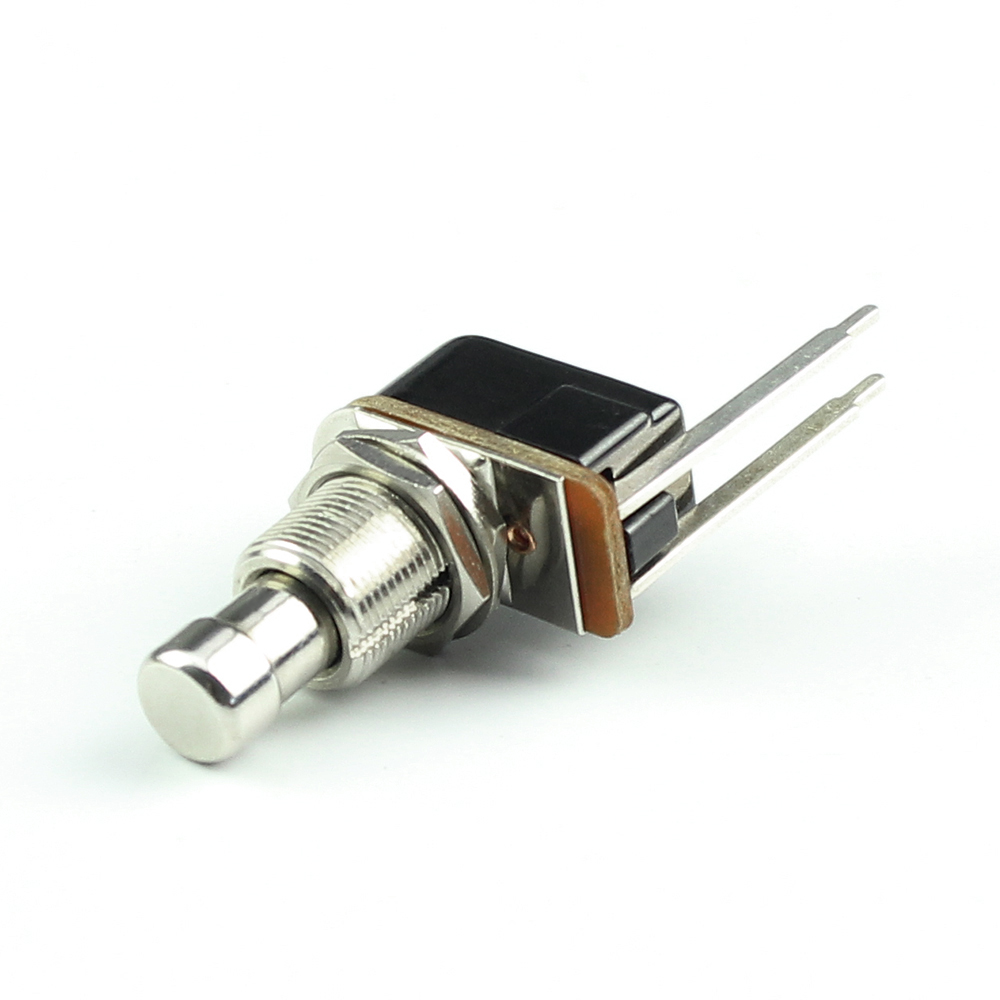

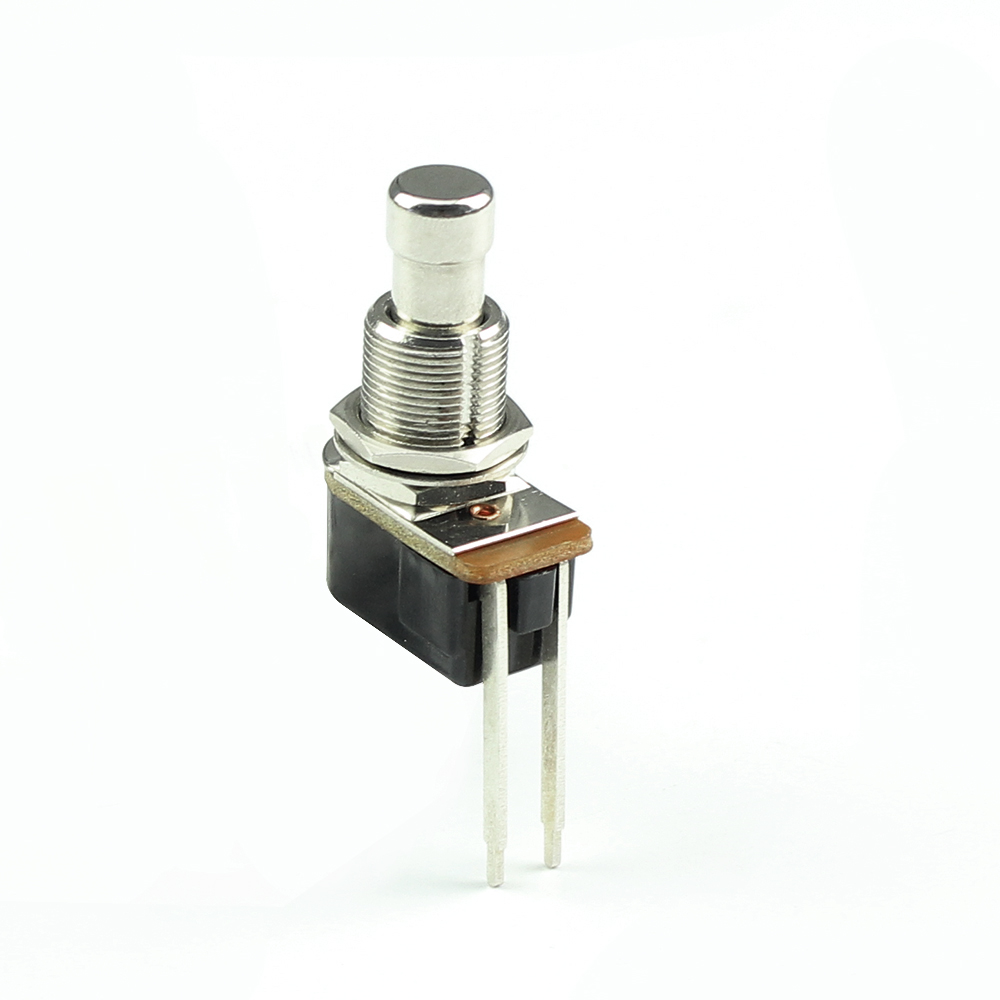

PBS-24B-4L Soft Touch 2PIN Foot Pedal Switch
Part#PBS-24B-4L
PBS-24B-4L Soft Touch 2PIN Foot Pedal Switch normally open operation, 2A 250VAC, OFF-(ON), 2 pin with long PBC lug.
The right-angle terminals make this switch super-easy to mount to a PCB.
Category :
Foot Switch
PBS-24B-4L Foot Pedal Switch Details
- Easy Installation
This switch saves the trouble of welding and makes the button type instantaneous switch easy to install and use.
- Automatic Mechanism
The automatic mechanism immediately returns the switch to the standard position, thereby restoring the original switch state.
- Sturdy Construction
Soft Touch Switch (No Click Sound when press down), It’s silent operation, easy to press and durable.
- Wide Application
It is widely used in home improvement and control the operation of many small power electronic projects.
PBS-24B-4L Datasheet
| Rating | 4A 125V AC; 2A 250V AC |
| Contact R | 20mΩ max |
| Insulation | 500V DC 100MΩ min |
| Dielectric Strength | 1Minute 1000V AC |
| Operating Temperature | -25℃~+85℃ |
| Electrical Life | 50,000 Cycles |
