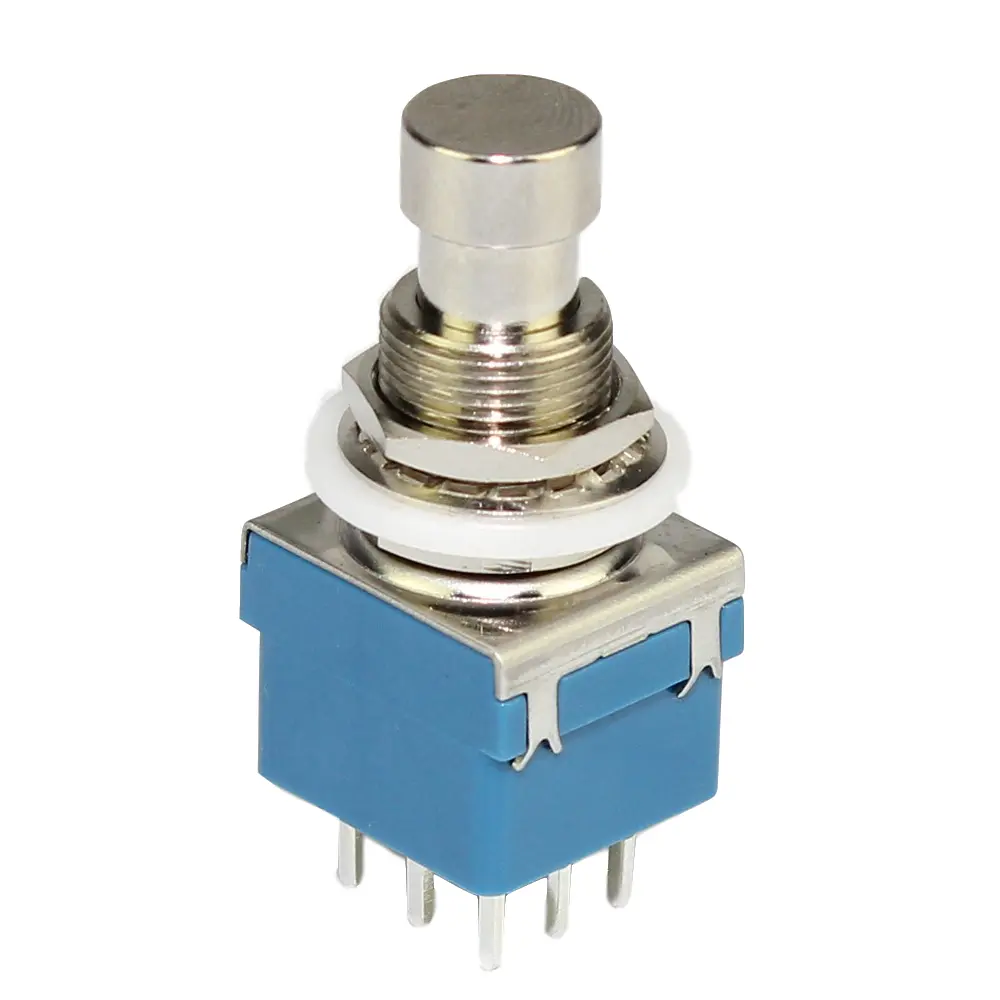

PBS-24-302P 3PDT Foot Pedal Push Switch

Part#PBS-24-302P

PBS-24-302P 3PDT foot pedal push switch, contact type: ON-ON, 3PDT; rated voltage: 2A 250V AC / 5A 125V AC; terminal: 9 Pin PBC lugs.

It can be used to rewire old-fashioned pendants or effect boxes like Electro-Harmonix, T Rex, Retro FX, Radial Bigshot, etc.

Category :

Foot Switch

PBS-24-302P 3PDT Foot Pedal Push Switch Details

  • Easy Installation

This switch saves the trouble of welding and makes the button type instantaneous switch easy to install and use.

  • Automatic Mechanism

The automatic mechanism immediately returns the switch to the standard position, thereby restoring the original switch state.

  • Sturdy Construction

Soft Touch Switch (No Click Sound when press down), It’s silent operation, easy to press and durable.

  • Wide Application

It is widely used in home improvement and control the operation of many small power electronic projects.

PBS-24-302P Datasheet

Rating 3A 250V AC; 6A 125V AC; 4A 30V DC
Insulation Resistance ≥100 MΩ
Contact Resistance ≤100 mΩ
Test Voltage ≥1500V AC/5S
Electrical Life 50,000 Cycles
Temperature Grade T85
Operating Force (OF) ≤0.25N
Operating Position (OP) 14.6 + 0.5mm

PBS-24-302P Related Products

PBS-24-302P 3PDT, PCB Lug, ON-ON
PBS-24-312P 3PDT, PCB Lug, ON-(ON)

Still, have a question about the PBS-24-302P and PBS-24-312P that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
