Miniature Toggle Switches

DAIER miniature toggle switches provide compact manual control for electronic equipment, instrument panels and OEM assemblies. Explore maintained and momentary switching functions, single- and multi-pole circuits, solder and PCB terminals, and different actuator styles to match your circuit and mounting layout.

Request a Quote View Products

Switching Functions Maintained & Momentary
Circuit Options Single- & Multi-Pole
Terminal Options Solder & PCB Connections
Actuator Options Multiple Handle Styles

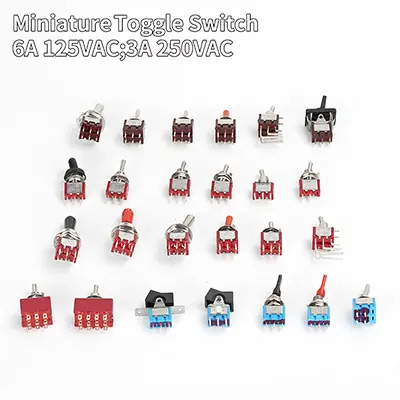

Miniature Toggle Switch Products

MTS-102 6mm Single Pole Toggle Switch

MTS-102 6mm Single Pole Toggle Switch, SPDT 3p

MTS-101 6A 125VAC Mini Toggle Switch

MTS-101 6A 125VAC Mini Toggle Switch, SPST 2 Pins

MTS-201 2 Way 6A 125VAC Toggle Switch

MTS-201 2 Way 6A 125VAC Toggle Switch DPST 4P

MTS Series DPDT 6-Pin Miniature Toggle Switch with Multiple Contact Configurations

The MTS Series DPDT 6-Pin miniature toggle switches, featuring multiple configurations, and solder/PC terminals, are designed for industrial, instrumentation, and networking uses.

MTS-302 3PDT ON-ON Toggle Switch

MTS-302 3PDT ON-ON Toggle Switch 3PDT 9P

MTS-402 4PDT Toggle Switch

MTS-402 4PDT Toggle Switch, ON-ON, solder terminal

MTS-102-L1 Large Handle Toggle Switch

MTS-102-A2T Toggle Switch with Bracket

MTS-102-A2T metal toggle switches are 3Pin, ON-ON, with bracket

MTS-102-C3 PC-H terminal Toggle Switch

MTS-102-C4 PC-V terminal Toggle Switch

MTS-102-E1 Toggle Switch with Plastic Handle

MTS-102-F1 Toggle Switch with Metal Handle

KNX-1-D1 Toggle Switch with Plastic Cover

MTS-102-B1 Toggle Switch with Long Handle

RLS-102-A1 Miniature Rocker Toggle Switch

RLS-102-A3 Single Pole Rocker Toggle Switch

RLS-102-A4 SPDT Rocker Toggle Switch

RLS-102-F1 Miniature Rocker Toggle Switch

Product Range

Miniature Toggle Switch Options for Panel & PCB Assembly

Miniature toggle switches provide manual circuit control where installation space is limited. This range includes different switching functions, pole configurations, terminal layouts and handle styles. Start with the required circuit operation, then compare the electrical rating and mounting drawing for the exact version. Related rocker-actuator and covered-handle styles are also listed in this category.

Maintained & Momentary Functions

Choose maintained operation when the switch needs to stay in its selected position, or momentary operation when it should return after release. Available circuit functions include ON-OFF, ON-ON and center-OFF arrangements. In catalog function codes, parentheses indicate a momentary position, such as OFF-(ON) or (ON)-OFF-(ON). Confirm the required switching sequence and number of poles before ordering.

Solder & PCB Terminals

Solder terminals suit wired assemblies, while PCB terminals connect the switch directly to a circuit board. The catalog also shows horizontal, vertical and long solder-terminal options. Terminal direction, pin spacing and support brackets affect fit, so compare the drawing with the intended wiring or PCB layout. Availability depends on the product version.

Handle & Mounting Options

Standard, long, short and flat handles offer different reach and operating feel. Plastic and metal actuator styles, handle caps and bracket-supported versions are shown in the catalog. Check the panel opening, thread, bushing length, panel thickness and clearance around the actuator. A handle cap or protective cover does not by itself establish an IP rating.

Electrical Ratings & Specification Checks

The miniature toggle catalog lists AC ratings of 6A at 125VAC and 3A at 250VAC. These values provide a reference for the covered catalog range; the current product specification and exact ordering code determine the applicable rating. Use the specified AC or DC rating for the actual load rather than treating the two as interchangeable.

For motors, lamps and other loads with starting or inrush current, include the load type as well as the operating voltage and current in the enquiry. Temperature limits, contact resistance, insulation performance and electrical life should be confirmed against the current datasheet for the required version.

Samples & Production Enquiries

Send the required switching function, pole configuration, terminal style, mounting dimensions and estimated quantity. Include a drawing or reference photo if the switch will replace an existing part. Confirm the full ordering code, included mounting hardware, sample requirements, packaging and delivery schedule with the quotation.

Applications

Typical Switch Applications

Compact toggle switches give operators a direct control point on electronic equipment. The circuit function, mounting space and load requirements determine the appropriate model.

Instrumentation & Test Equipment

Provide manual ON-OFF or function switching on compact instrument panels and electronic test assemblies.

Communication Equipment

Use single-pole or double-pole switching for control functions in telecommunications and networking equipment.

OEM Electronic Assemblies

Match solder or PCB terminals to the assembly layout, with the circuit function and mounting drawing agreed before production.
