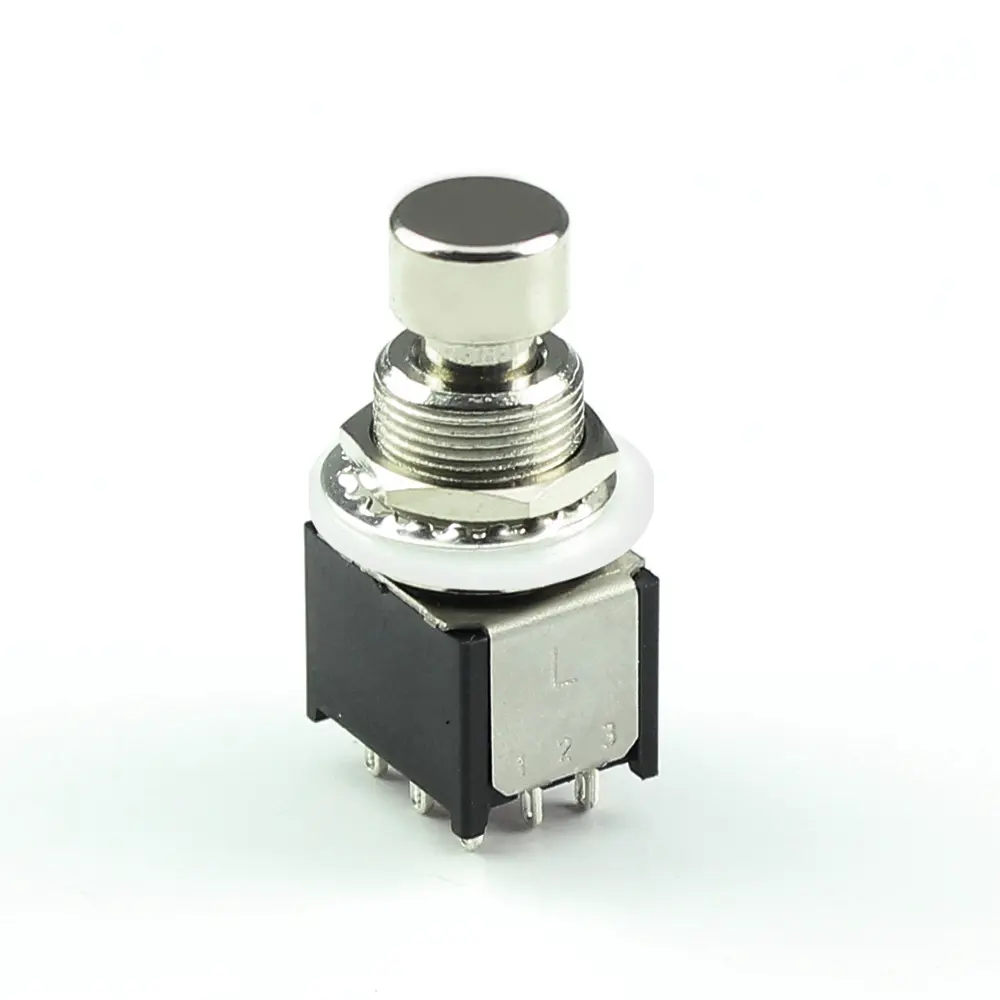

PBS-24-302S 9 Pin 3PDT Guitar Pedal Switch
Part#PBS-24-302S
PBS-24-302S 9 pin 3PDT guitar pedal switch with solder lug, contact type: ON-ON, 3PDT; rated voltage: 3A 250V AC; 6A 125V AC; 4A 30V DC.
It is suitable for unbuffered bypassing/true bypass of the effect circuit without coloring the tone of the instrument or other components in the signal chain.
Category :
Foot Switch
PBS-24-302S 9 Pin 3PDT Guitar Pedal Switch Details
- Easy Installation
This switch saves the trouble of welding and makes the button type instantaneous switch easy to install and use.
- Automatic Mechanism
The automatic mechanism immediately returns the switch to the standard position, thereby restoring the original switch state.
- Sturdy Construction
Soft Touch Switch (No Click Sound when press down), It’s silent operation, easy to press and durable.
- Wide Application
It is widely used in home improvement and control the operation of many small power electronic projects.
PBS-24-302S Datasheet
| Rating | 3A 250V AC; 6A 125V AC; 4A 30V DC |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤100 MΩ |
| Test Voltage | ≥1500V AC/5S |
| Electrical Life | 50,000 Cycles |
| Temperature Grade | T85 |
| Operating Force (OF) | ≤0.25N |
| Operating Position (OP) | 14.6 + 0.5mm |
PBS-24-302S Related Products
| PBS-24-302S | 3PDT, ON-ON, Solder Terminal |
| PBS-24-312S | 3PDT, ON-(ON), Solder Terminal |
Still, have a question about the PBS-24-302S and PBS-24-312S that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
