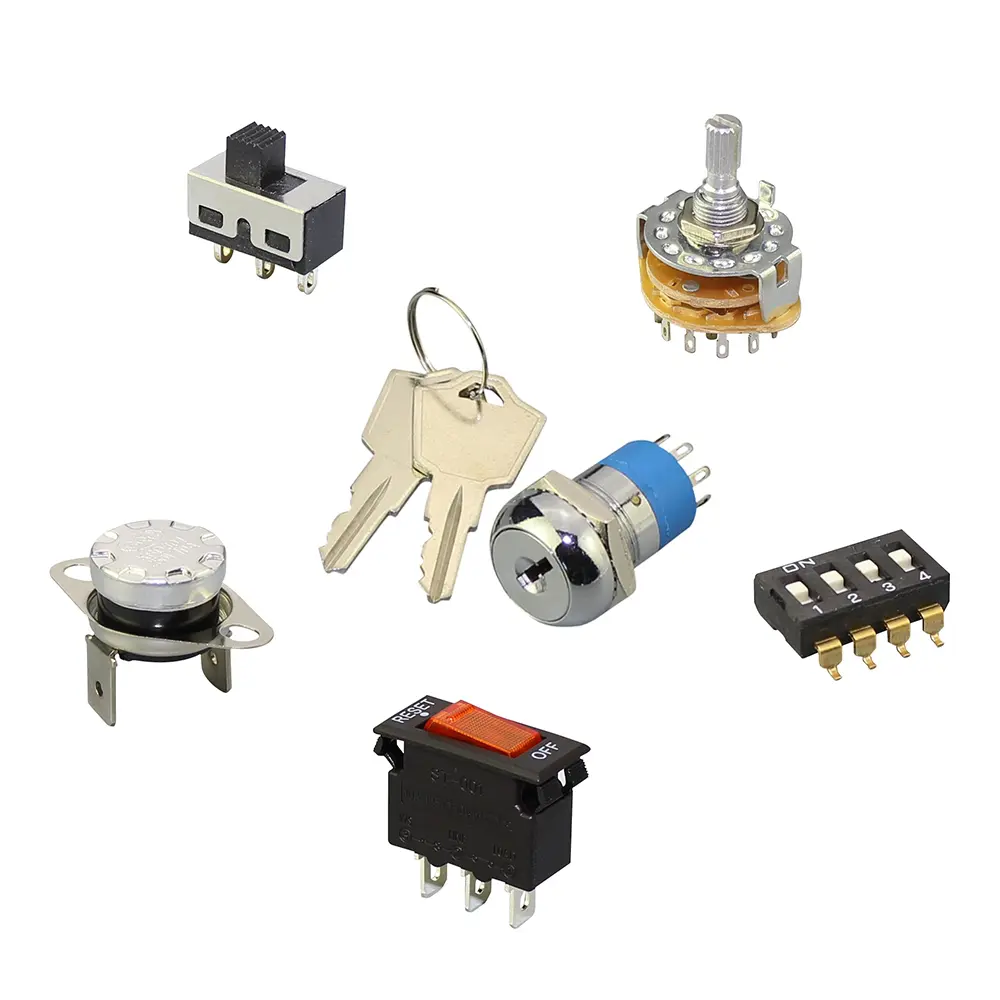

Other Switch

Dip Switch

Dip Switch

The DIP switch is an address switch for operation control, which uses the principle of 0/1 binary coding. In layman's terms, it is a miniature switch that can be toggled by hand. There are many models of DIP switches. According to the pin position, they are divided into Through Hole type and SMD type. According to the way of dialing, they are divided into flat dial and side dial. According to the pitch of switch terminals, there is 2.54mm and 1.27mm. And black, red and blue according to the color. According to the number of poles, it is normally 1 pole to 12 poles. Each Actuator corresponds to two pins of the switch, turn it to the ON side, the two pins below are connected; otherwise, it is disconnected. All Actuators are independent and not related to each other. This type of component is mostly used for binary coding, which can be set to 1 when on; 0 when off. Dip switch is widely used in data processing, communication, remote control, and anti-theft automatic alarm system, air shower room, train model, and other products that require manual programming.

Dip Switch

Key Switch

Key Switch

The key lock switches we supplied are used as electronic switches to control the circuit ON/OFF, not mechanical locks. They are used in computer locking and other security systems. Our key switches’ cut-out mounting diameters included 12mm, 16mm, 19mm, and 22mm. 12mm size key switches only with ON/OFF function. 16mm and 19mm keyswitches can be ON/OFF, ON/ON, OFF/ON/ON, ON/OFF/ON with latching or momentary. All of our keylock switches are with common keys and non-waterproof.

Key Switch

Overload Protector

Overload Protector

Our overload protectors include circuit breaker switches and thermostats. Circuit breaker switch is designed to protect electrical circuit from damage caused by excess current. The circuit breaker switch's basic function is to interrupt current flow after a fault is detected. Our ST-1 and ST-2 series Push Button type circuit breaker switches with M10 Panel Mounting Hole size, The current ranges from 3A to 60A. Waterproof rubber caps are available for them. Our ST-001 series Rocker type circuit breaker switch is widely used on power extension sockets,it can not only control the socket ON/OFF like a rocker switch, but also protect the circuit. This switch can be Short Terminals or Long Terminals, with LED illuminated or Non-illuminated. Thermostat is designed to protect electrical circuit from damage caused by excess temperature. There is a bimetal disc inside the thermostat,The bimetal disc will snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, and then caused the circuit ON/OFF finally. Circuit breaker switches and TLRS-9700(KSD9700) Thermostats are Manual Reset type. KSD301 thermostats can be Manual Reset or Auto Reset.

Overload Protector

Rotary Switch

Rotary Switch

A rotary switch is a kind of switch that rotates the handle to control different circuit functions. Normal switches only have three positions at most, but the rotary switch can have 2 positions to 12 positions. They are used in large quantities for old-fashioned televisions, electric fans, microwave ovens, juicers, Industrial machine control units, and other electrical equipment. Our rotary switches are available in a variety of indexing options for applications ranging from 15mA to 16 Amps. With multi-pole, multi-position designs.

Rotary Switch

Slide Switch

Slide Switch

Slide switch is defined by it’s method of operation, the circuit is switched by moving actuator. The slide switches in our company are classified into Vertical Mini Slide switch, Horizontal Mini Slide switch, Vertical slide switch, Horizontal slide switch,AC power slide switch. We have slide switches compatible for PCB Mount and panel mount applications. Available in SPST, SPDT, SP3T, DPST, DPDT, 3PDT, 4PDT and 4P3T functions. Because of its low price and stable quality, Slide switches are widely used in instruments equipment, toys, fax machines, audio equipment, medical equipment, beauty equipment, consumer electronics, industrial controls, and test equipment, among many others.

Slide Switch
