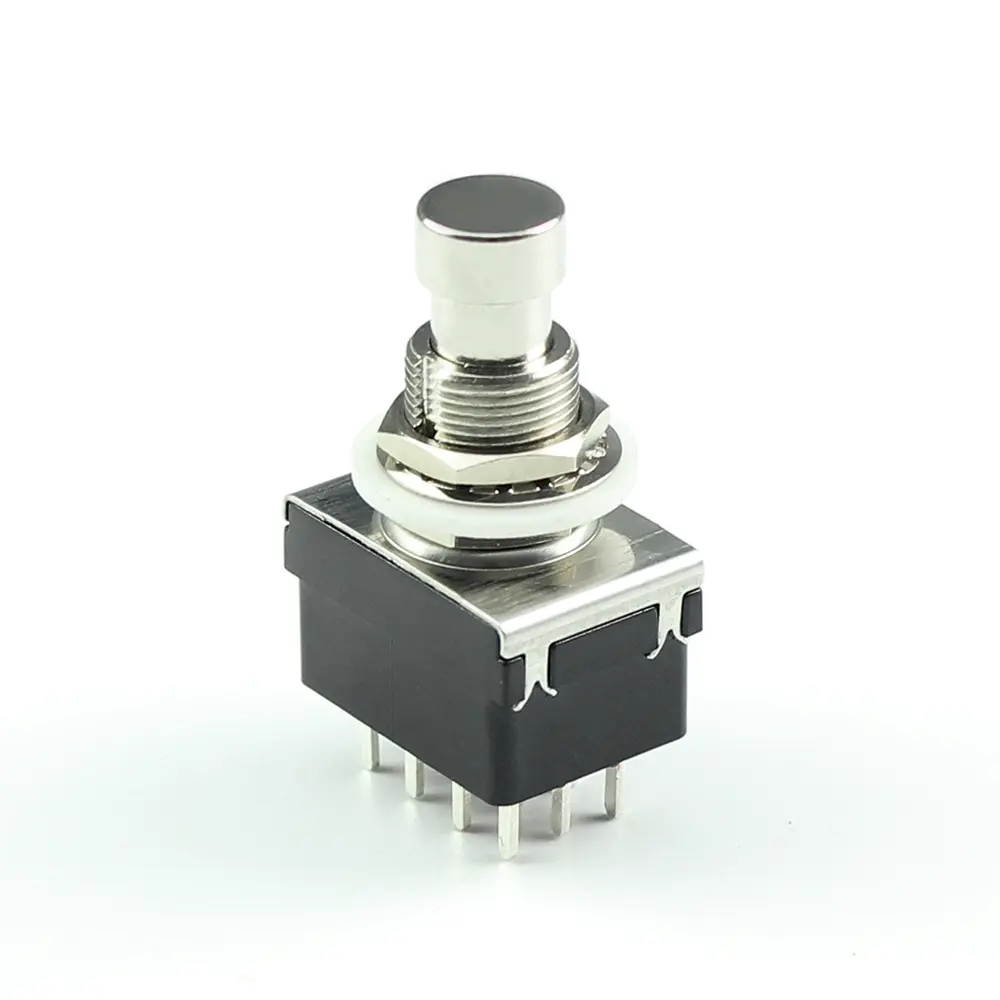

PBS-24-402P 4PDT PCB Lug Latching Footswitch
Part#PBS-24B-402P
PBS-24-402P latching footswitch, contact type: ON-ON, 4PDT; rated voltage: 6A 125V AC, 3A 250V AC, 4A 30V DC; terminal: 12 Pin PCB lugs.
It has an additional electrode compared to the 3PDT switch, while using a high temperature plastic housing and epoxy high quality internal components.
Category :
Foot Switch
PBS-24-402P 4PDT PCB Lug Latching Footswitch Details
- Easy Installation
This switch saves the trouble of welding and makes the button type instantaneous switch easy to install and use.
- Automatic Mechanism
The automatic mechanism immediately returns the switch to the standard position, thereby restoring the original switch state.
- Sturdy Construction
Soft Touch Switch (No Click Sound when press down), It’s silent operation, easy to press and durable.
- Wide Application
It is widely used in home improvement and control the operation of many small power electronic projects.
PBS-24-402P / PBS-24-412P Datasheet
| Rating | 6A 125V AC; 3A 250V AC; 4A 30V DC |
| Insulation Resistance | ≥100 MΩ (Min), 500V DC |
| Contact Resistance | 30mΩ (Max) |
| Dielectric Strength | 1000V AC / 1minute |
| Electrical Life | ≥10,000 Cycles |
PBS-24-402 Related Products
| PBS-24-402 | 4PDT, Solder Lug, ON-ON |
| PBS-24-412 | 4PDT, Solder Lug, ON-(ON) |
| PBS-24-402P | 4PDT, PBC Lug, ON-ON |
| PBS-24-412P | 4PDT, PBC Lug, ON-ON |
Still, have a question about the PBS-24-402P and PBS-24-412P that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
