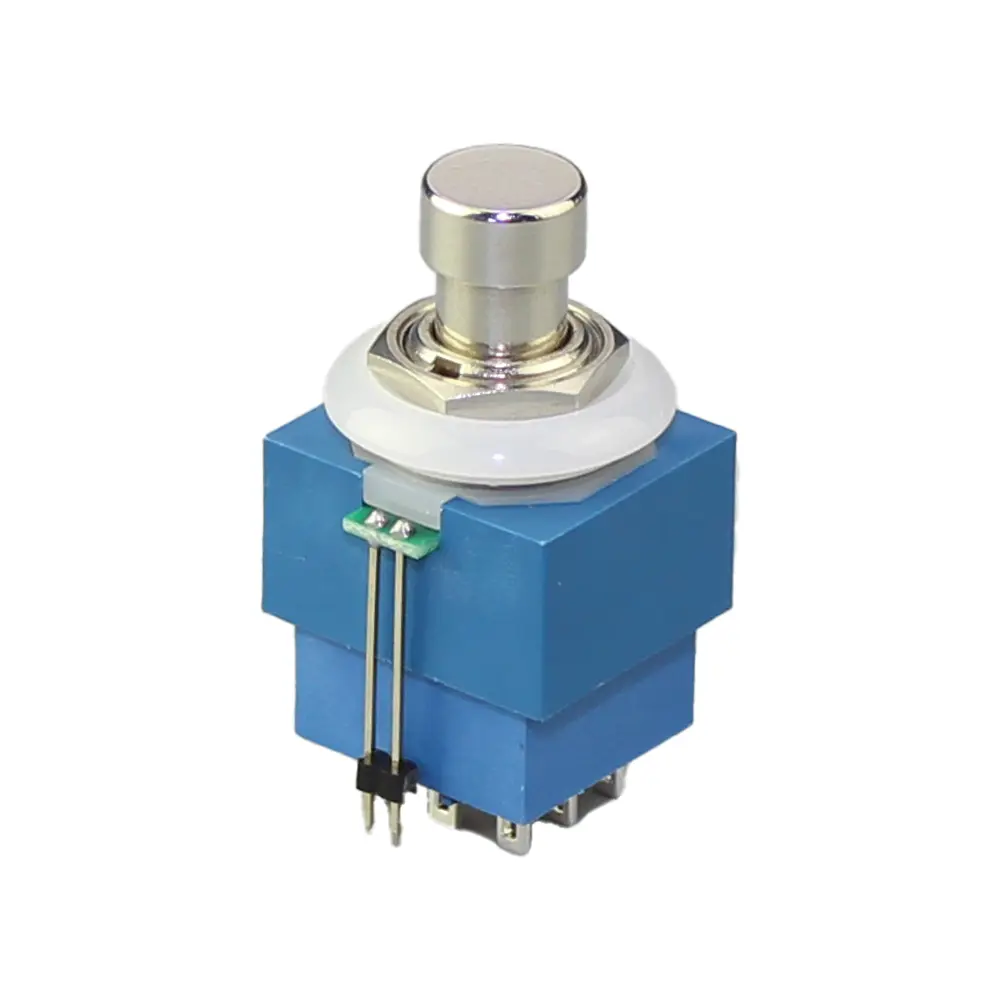

PBS-24-302-N1 ON-ON Single-color LED Footswitch
Part#PBS-24-302-N1
The LED footswitch, LED: R, G, BL, W, PL; contact type: ON-ON, 3PDT; rated voltage: 2A 250V AC, 4A 125V AC, 4A 30V DC; terminal: 9 Pin solder lugs.
The LED of the switch is 2-3V, we recommend you to use 470-ohm resistance if you use the button switch for a 9V adapter.
Category :
Foot Switch
PBS-24-302-N1 ON-ON Single-color LED Footswitch Details
- Easy Installation
This switch saves the trouble of welding and makes the button type instantaneous switch easy to install and use.
- Automatic Mechanism
The automatic mechanism immediately returns the switch to the standard position, thereby restoring the original switch state.
- Sturdy Construction
Soft Touch Switch (No Click Sound when press down), It’s silent operation, easy to press and durable.
- Wide Application
It is widely used in home improvement and control the operation of many small power electronic projects.
PBS-24-302-N1 Datasheet
| Rating | 2A 250V AC; 4A 125V AC; 4A 30V DC |
| Insulation Resistance | ≥100 MΩ, 500V DC |
| Contact Resistance | ≤50 mΩ |
| Withstand voltage | 1000V AC/min |
| Electrical Life | ≥10,000 Cycles |
| Operating Force (OF) | -L: 3.0 Kgf ± 0.8Kgf; -M: 3.0 Kgf ± 0.8Kgf |
PBS-24-302-N1 Related Products
| PBS-24-302-N1 | 3PDT, Solder Lug, ON-ON, LED: R, G, BL, W, PL |
| PBS-24-302-N2 | 3PDT, Solder Lug, ON-ON, Dual LED: R/G, R/BL |
Still, have a question about the PBS-24-302-N1 and PBS-24-302-N2 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
