Panel-Mount Switches for Equipment & OEM Assemblies

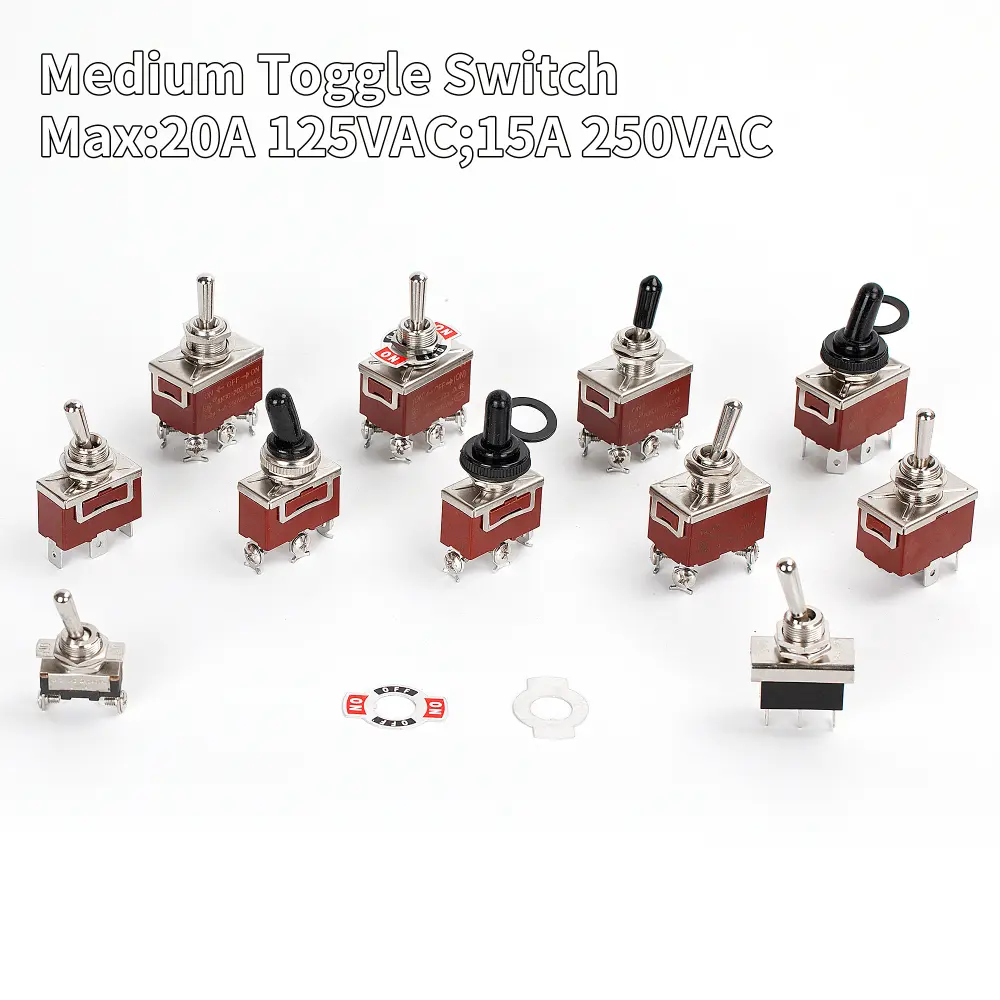

Medium Toggle Switches
Panel-mounted toggle switches for equipment controls and OEM assemblies. Compare maintained and momentary functions, single- and multi-pole circuits, screw and spade terminals, pre-wired options, and selected sealed or covered versions. Ratings and mounting dimensions depend on the exact product.
- Switching Functions Maintained & Momentary
- Circuit Options Single- & Multi-Pole
- Connections Screw, Spade & Wire Leads
- Installation Options Panel, Covered & Sealed
Medium Toggle Switch Products
KN3C-102 SPDT Medium Toggle Switch
KN3C-102 SPDT Medium Toggle Switch with ON-ON function
R13-401-101 ON OFF Toggle Switch Autozone
R13-401-101 ON OFF Toggle Switch Autozone is used for 12 V DC systems, 50A, SPST, ON-OFF and 2PIN with screw terminals.
KN3C-302P 3PDT Electrical Toggle Switch
KN3C-302 series are 3PDT electrical toggle switches with ON-ON function.
R13-401-103 3 Position Toggle Switch
R13-401-103 3 Position Toggle Switch, 50 Amp 12V Heavy Duty 3 Way Toggle Switch SPDT with ON-OFF-ON function, 3 Pin 12 Volt for Automotive Car
R13-501-101 Heavy Duty Toggle Switch
R13-501-101 Heavy Duty Toggle Switch, IP65 Waterproof Switch 50 Am 12V , 2 Pin ON-OFF with Rubber Boot Cover
KN3C-101 Heavy Duty Toggle Switch
KN3C-101 Heavy Duty Toggle Switch,Delicate appearance with strong Construction.Look chic and high-end on your equipment.
KN3C-101A-GOLD 30A 12V Gold Handle Toggle Switch | SPST 2-Pin ON-OFF
This 30A 12V gold handle toggle switch features a heavy-duty SPST design and silver-copper hybrid contacts for reliable high-current performance without a relay.
KN3C-101P Spade Terminal Toggle Switch
KN3C-101P Spade Terminal Toggle Switch,Delicate appearance with strong Construction.Look chic and high-end on your equipment.
KN3C-101AA+WPC-06+DS-S1-T 12mm SPST ON-OFF Toggle Switch with Mounting Bracket and Cover
The 12mm SPST ON-OFF toggle switch with mounting bracket and cover is a heavy-duty solution designed with a robust rating of 30A 12VDC, 20A 125VAC, and 15A 250VAC.
KN3C-101AA+WPC-06+DS 30A 12VDC SPST Latching Toggle Switch with Aluminum Panel and Cap
The 30A 12VDC SPST latching toggle switch is a rugged and durable solution for heavy-duty applications, boasting a waterproof design and effortless ON/OFF operation.
KN3C-123AP+UPDOWN 30A 12V DC 3-Pin Momentary Toggle Switch with UP/Down Mounting Plate
The 30A 12V DC 3-pin momentary toggle switch with up/down mounting plate is a (ON)-OFF-(ON) SPDT switch with a waterproof design, offering a 3-way function.
KN3C-201 DPST Medium Toggle Switch
KN3C-201 DPST Medium Toggle Switch, best popular item
KN3C-202 DPDT Medium Toggle Switch
KN3C-202 DPDT Medium Toggle Switch, best popular item
KN3C-223A+WPC-06 12V DC 30A DPDT 6-Pin Medium Momentary Toggle Switch with Waterproof Cover
This 12V DC 30A DPDT 6 Pin 3 Position medium momentary toggle switch is designed for momentary operation, providing efficient power control with its (ON)-OFF-(ON) configuration.
KN3C-223AAP+WPC-06+UPDOWN 30A 12VDC Polarity Reversal (ON)-OFF-(ON) 6 Pin Momentary Toggle Switch
The 30A 12VDC polarity reversal 6 pin momentary toggle switch is a heavy-duty, (ON)-OFF-(ON) switch with UP/Down mounting plate and waterproof cap.
KN3C-402P 4PDT ON ON Toggle Switch
KN3C-402 series are 4PDT ON ON toggle switches 20 A/125 VAC.
KN3C-202E 2 Way Toggle Switch
KN3C-202E 2 Way Toggle Switch DPDT with screw terminals
KN3F-101 30A 12VDC IP67 2 Pin SPST Waterproof ON-OFF Toggle Switch with Screw Terminal
IP67 waterproof ON-OFF toggle switch specification is 2pin SPST, 30A 12VDC / 20A 125VAC / 15A 250VAC, perfect for simple ON/OFF control in a variety of applications.
KN3F-103/KN3F-123 30A 12VDC IP67 Latching/Momentary 3-Pin SPDT Toggle Switch
The IP67 3-Pin SPDT toggle switch for 30A 12VDC / 20A 125VAC / 15A 250VAC, and offer enhanced versatility with ON-OFF-ON and (ON)-OFF-(ON) configurations.
KN3F-201 IP67 Waterproof 30A 12VDC ON-OFF 4 Terminal DPST Toggle Switch For Multi-Circuit Control
The 4-pin on-off toggle switches provide expanded functionality, making them suitable for a wider range of applications that require more complex control.
Selection Guide
Compare Medium Toggle Switches for Your Assembly
Medium toggle switches give equipment operators a direct panel-mounted control. The products below include maintained and momentary switches, single- and multi-pole circuits, sealed versions, pre-wired units, and switches supplied with covers or mounting accessories. Compare the required function, connection and installation first; then verify the electrical rating for the exact product.
Switching Function & Circuit
Choose ON-OFF for circuit isolation, ON-ON for selecting between connections, or a center-OFF arrangement when a neutral position is needed. Maintained switches stay in position; momentary positions return after release and are shown in parentheses. Single- and multi-pole products are listed. Confirm the contact diagram rather than using terminal count alone.
Terminal & Wiring Options
Screw terminals, quick-connect spade terminals, solder terminals, PCB connections and pre-attached wire leads are represented in this range. Compare terminal size, direction and clearance with your harness or board layout. Purpose-specific polarity-reversing assemblies use a defined jumper arrangement; verify the wiring diagram before choosing a replacement.
Mounting & Protection
Compare the panel cutout, bushing thread, panel thickness and space behind the panel. Selected products include protective caps, mounting plates or brackets. Sealed versions and covered versions have different protection specifications: a cover alone does not establish an IP rating. Confirm the exact switch, accessories and installation conditions.
Electrical Ratings Depend on the Version
This category includes both power-control switches and an electric-guitar pickup selector. They do not share one electrical rating or application. For example, the listed heavy-duty ON-OFF screw-terminal switch specifies 50A at 12VDC, while the sealed ON-OFF switch lists 15A at 250VAC, 20A at 125VAC and 30A at 12VDC. These ratings apply to those listed versions, not every switch in this category.
Specify AC or DC voltage, operating current and load type. Motor starting current, lamp inrush and other load conditions require checking against the current product specification. Do not convert an AC rating into a DC rating or select a switch from its appearance alone.
Details for a Comparable Quotation
Use three core comparison items for similar products: switching function and circuit configuration; electrical rating for the intended load; and terminal with mounting dimensions. Include the full ordering code or a reference drawing, required accessories, sample quantity and expected production volume. Confirm the current specification and supplied assembly before ordering.
Applications
Typical Switch Applications
Match the switch function and electrical specification to the assembly. Power-control and signal-selection products in this range serve different requirements.
Equipment Control Panels
Provide maintained ON-OFF, circuit selection or momentary control with the required poles, terminals and panel dimensions.
Vehicle & OEM Wiring
Compare screw, spade and pre-wired options for harness assembly. Check the specified DC rating and load conditions for the selected switch.
Instrument & Guitar Controls
Select purpose-specific signal or pickup switching by the contact arrangement and wiring layout. A guitar selector is not a general power switch.
Common Questions
Toggle Switch FAQs
Answers about switching functions, terminals, ratings and production enquiries.
For a Project Enquiry
Send a model code and quantity, or share the circuit function and mounting drawing.
Send Project DetailsCompare switching function and circuit configuration, electrical rating for the actual load, and terminal with mounting dimensions. Confirm maintained or momentary operation and the contact diagram for the exact version.
Parentheses identify a momentary position that returns after release. For example, (ON)-OFF-(ON) has two momentary positions with a center OFF position. Specify the required return action and circuit diagram.
Versions with specified AC and DC ratings can be used in the corresponding circuits. Select the exact switch by its rated voltage, current and load type, including starting or inrush current where relevant. Where only an AC rating is listed, contact DAIER to confirm the applicable DC specification.
No. A protective cover or cap does not by itself establish an IP rating. Confirm the documented protection level for the exact switch and the complete installed assembly.
Do not assume that it can. A reversing assembly may include jumper bars or pre-arranged wiring. Compare the contact diagram, jumper arrangement, terminal layout and load requirements before substitution.
Send the switching function, poles and throws, AC or DC voltage, current and load type, terminal style, mounting drawing, accessories and quantity. A part number or reference photo can help identify the required version.
Discuss Your Medium Toggle Switch Requirements
Share the switching function, circuit configuration, AC or DC voltage, current and load type, terminal and mounting requirements, and estimated quantity. Include a drawing or reference part and any required cover, bracket or wiring accessories.
