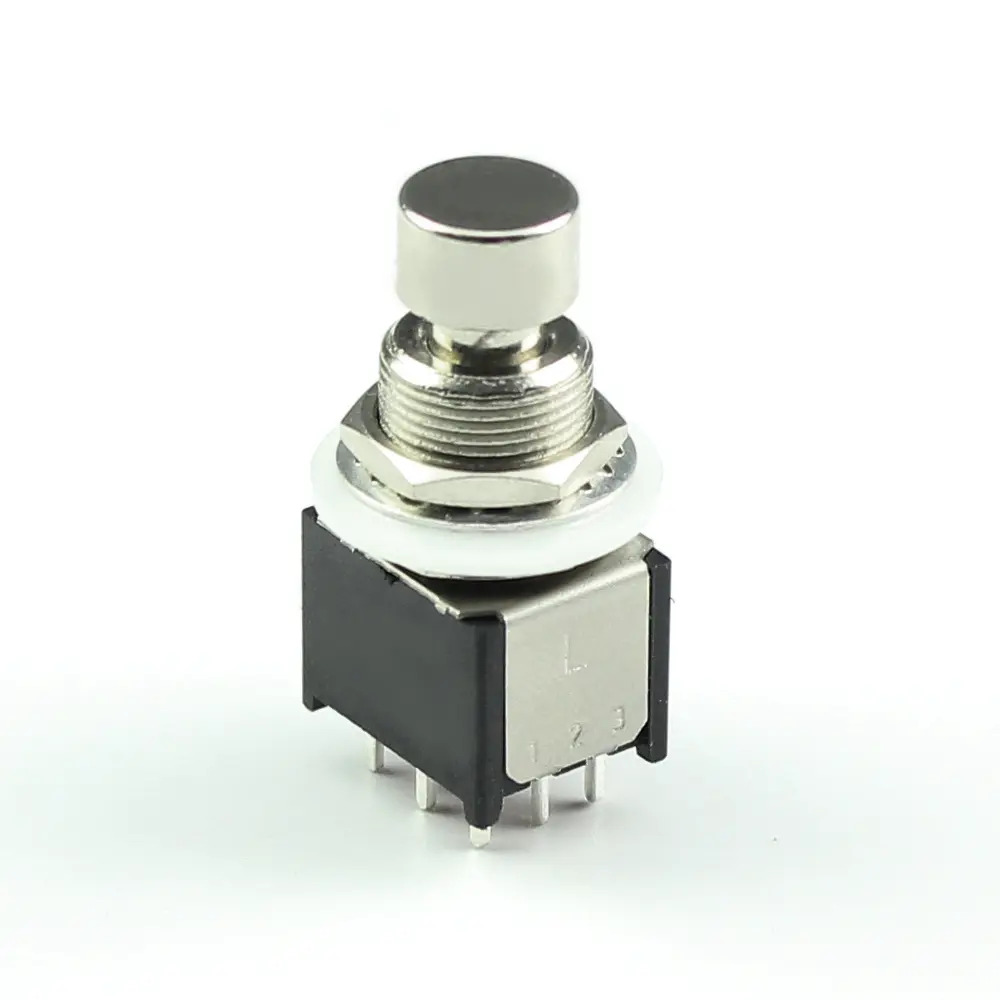

PBS-24-302SP 3PDT PCB Guitar Pedal Footswitch
Part#PBS-24-302SP
PBS-24-302SP 3PDT PCB guitar pedal footswitch with 9Pin, contact type: ON-ON, 3PDT; rated voltage: 3A 250V AC; 6A 125V AC; 4A 30V DC.
The item can be used to rewire vintage pedals or effects boxes and the third pole can be wired to control an LED status light or other custom function.
Category :
Foot Switch
PBS-24-302SP 3PDT PCB Guitar Pedal Footswitch
- Easy Installation
This switch saves the trouble of welding and makes the button type instantaneous switch easy to install and use.
- Automatic Mechanism
The automatic mechanism immediately returns the switch to the standard position, thereby restoring the original switch state.
- Sturdy Construction
Soft Touch Switch (No Click Sound when press down), It’s silent operation, easy to press and durable.
- Wide Application
It is widely used in home improvement and control the operation of many small power electronic projects.
PBS-24-302SP Datasheet
| Rating | 3A 250V AC; 6A 125V AC; 4A 30V DC |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤100 MΩ |
| Test Voltage | ≥1500V AC/5S |
| Electrical Life | 50,000 Cycles |
| Temperature Grade | T85 |
| Operating Force (OF) | ≤0.25N |
| Operating Position (OP) | 14.6 + 0.5mm |
PBS-24-302SP Related Products
| PBS-24-302SP | 3PDT, ON-ON, PCB Lug |
| PBS-24-312SP | 3PDT, ON-(ON), PCB Lug |
Still, have a question about the PBS-24-302SP and PBS-24-312SP that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
