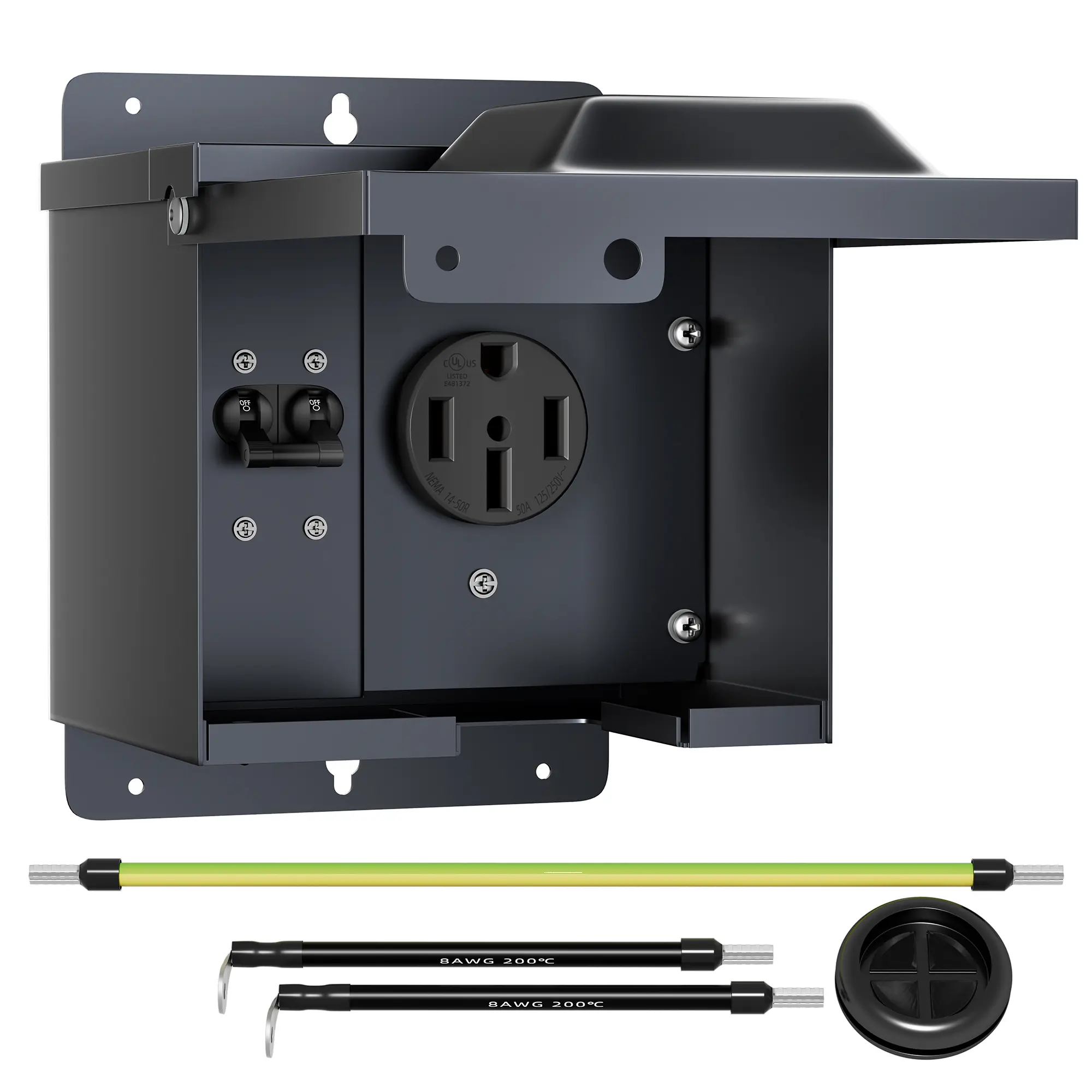

POP-1-50A-C 125/250V 50 Amp RV Outlet Box with Circuit Breaker NEMA 14-50R Receptacle
Part#POP-1-50A-C
The 125/250V 50 Amp RV Outlet Box with built-in circuit protection and a NEMA 14-50R receptacle features a 50A circuit breaker for automatic overload prevention, ensuring both convenience and safety.
This professional-grade outdoor electrical receptacle panel is constructed from durable cold-rolled steel with weatherproof and rust-resistant features, making it ideal for rigorous outdoor conditions.
POP-1-50A-C 125/250V 50 Amp RV Outlet Box with Circuit Breaker Details
- Professional-Grade 50Amp RV Outlet
This heavy-duty 50 Amp 125/250V RV power outlet box, crafted from robust cold-rolled steel, is built to endure harsh outdoor environments. Measuring 7.05″×6.42″×6.06″, it features a UL Certified 50 amp receptacle, each with dedicated circuit breaker protection, making it perfect for RVs, campers, travel trailers, and construction sites.
- Integrated Circuit Protection
For enhanced safety and convenience, our 50 Amp RV power outlet box comes equipped with a 50A circuit breaker. This provides automatic power interruption in case of overloads or short circuits, eliminating the need for a separate breaker installation.
- Weatherproof and Durable Design
The RV receptacle boasts a fully spray-coated shell and dual rust-resistant materials for superior corrosion resistance. This design makes it waterproof, anti-thunder, fire-resistant, dustproof, and UV-protected, ensuring a long lifespan. The swing cover of the 50A outlet box features a secure damping system, keeping it firmly in place while allowing easy opening and closing during use.
- Effortless Installation and Wiring
The outdoor 50 amp RV receptacle simplifies installation with pre-drilled mounting brackets conveniently located both above and below the box. Three strategically placed knockouts on the RV outlet box offer versatile options for power cord connections, saving time and effort.
- Versatile Outdoor Power Solution
This 50 Amp RV outlet panel is ideal for outdoor service and temporary power supply needs. It caters to various applications, including construction sites, RVs, campers, electric vehicle charging, motorcycles, and more. Enjoy a convenient and reliable power source wherever you need it.
POP-1-50A-C 125/250V 50 Amp RV Outlet Box Datasheet
| Material | Iron, Type 3R Enclosure Rainproof |
| Dimensions | 7.05″×6.42″×6.06″ / 179mm×163mm×154mm |
| Socket Type | Nema 14-50R |
| Current Rating | 50Amp |
| Operating Voltage | 125 Volts / 250 Volts |
| Wire Range | 10-4AWG |
Explore our range of RV power outlet boxes, including 30 Amp options like the POP-1-30A and POP-1-30A-C, as well as 50 Amp solutions such as the POP-1-50A, POP-1-50A-C, and the versatile POP-3 Weatherproof Temporary Power RV Panel with both 30 and 50 Amp receptacles.
If you have any unanswered questions about the product or would like more information, we encourage you to reach out to us via email at sales1@chinadaier.com or through our live chat. We are here to assist you and provide the information you need.
