POP-1-30A-C Weatherproof Outdoor 125/250V 30 Amp RV Outlet Box with NEMA TT-30R Receptacle
Part#POP-1-30A-C
The weatherproof 125/250V 30 Amp RV outlet box with NEMA TT-30R receptacle features a 30A circuit breaker for automatic overload prevention.

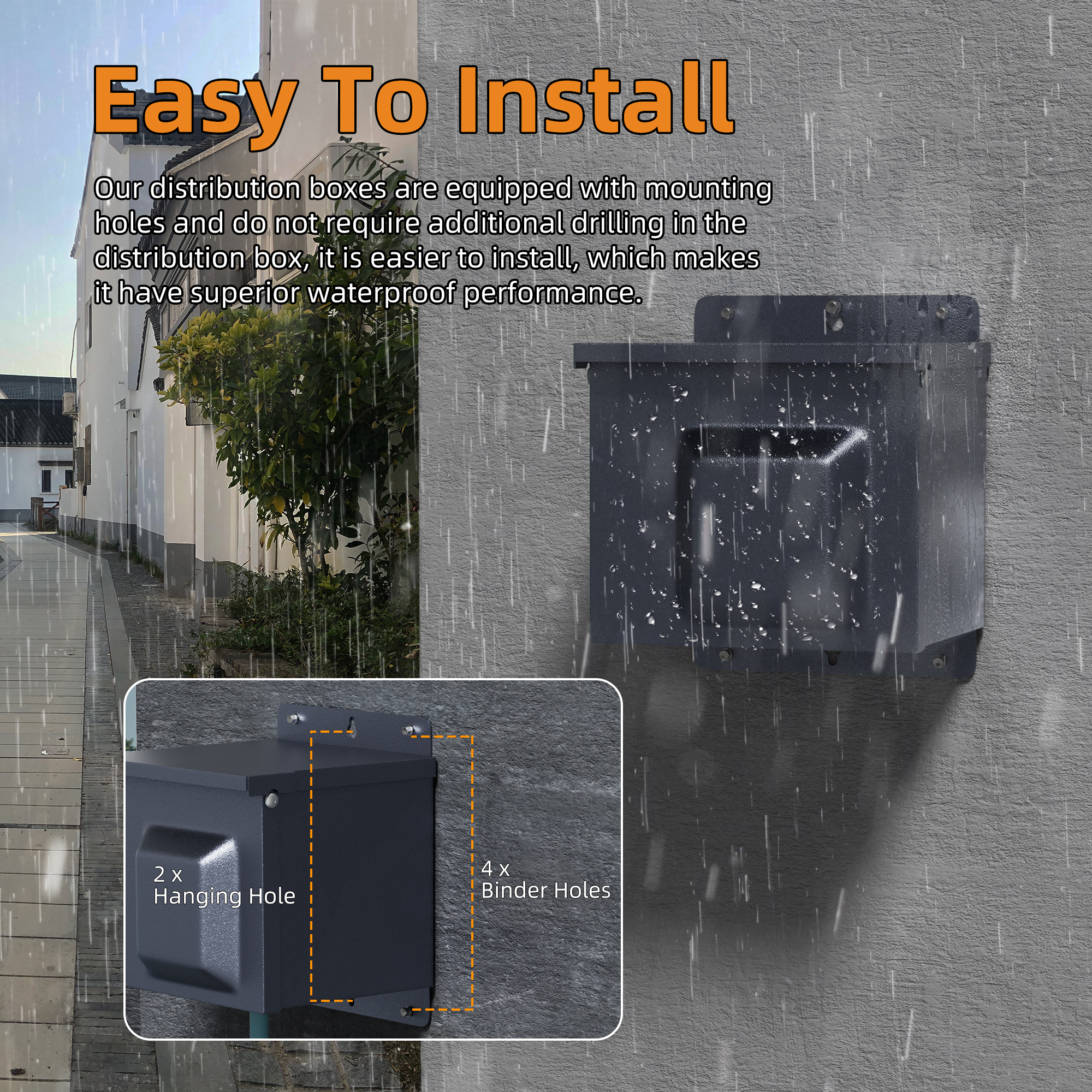

Its weatherproof design, ample space, and extensive compatibility make it a reliable choice for users seeking durability and functionality in a single unit.

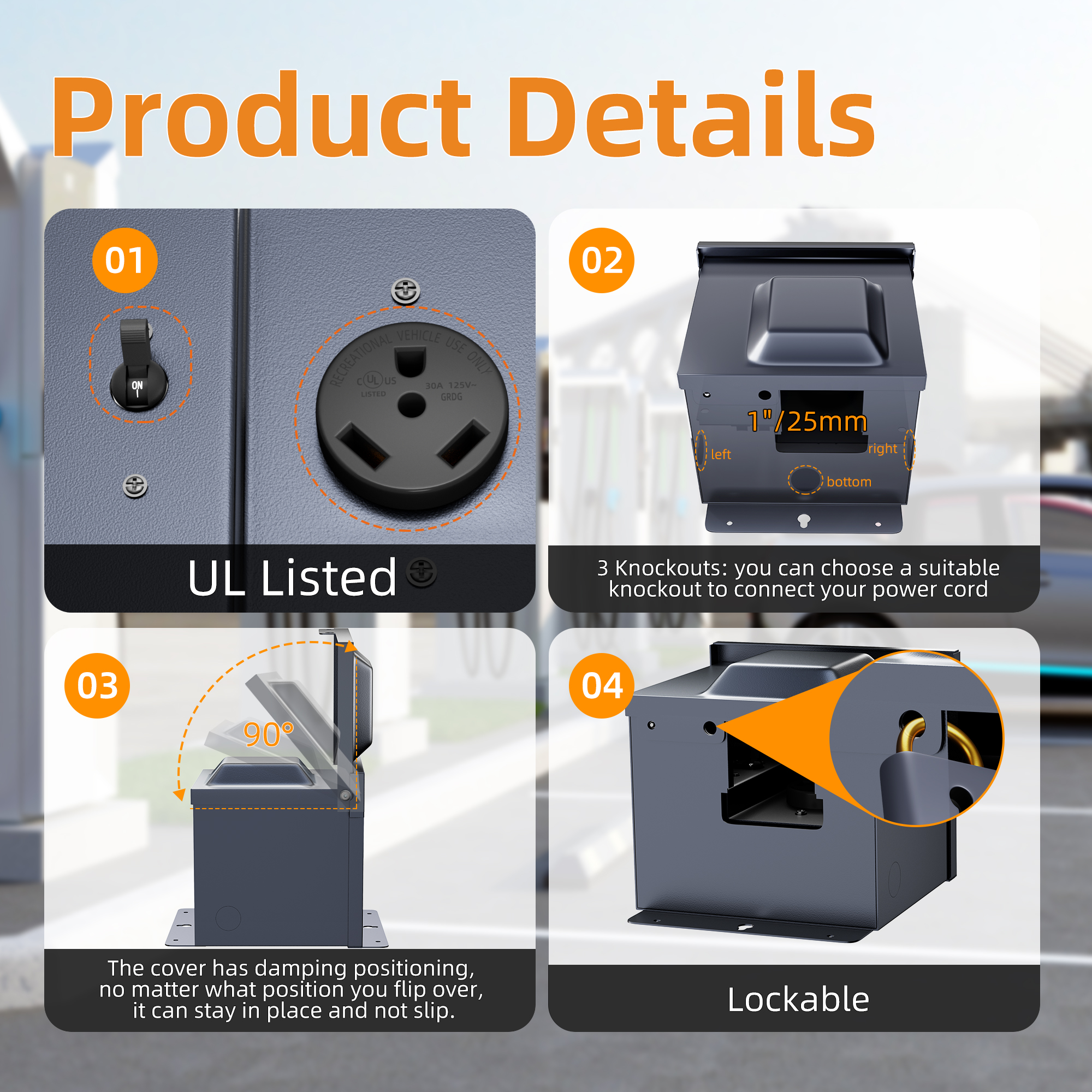

POP-1-30A-C 125/250V 30 Amp RV Outlet Box with NEMA TT-30R Receptacle Features

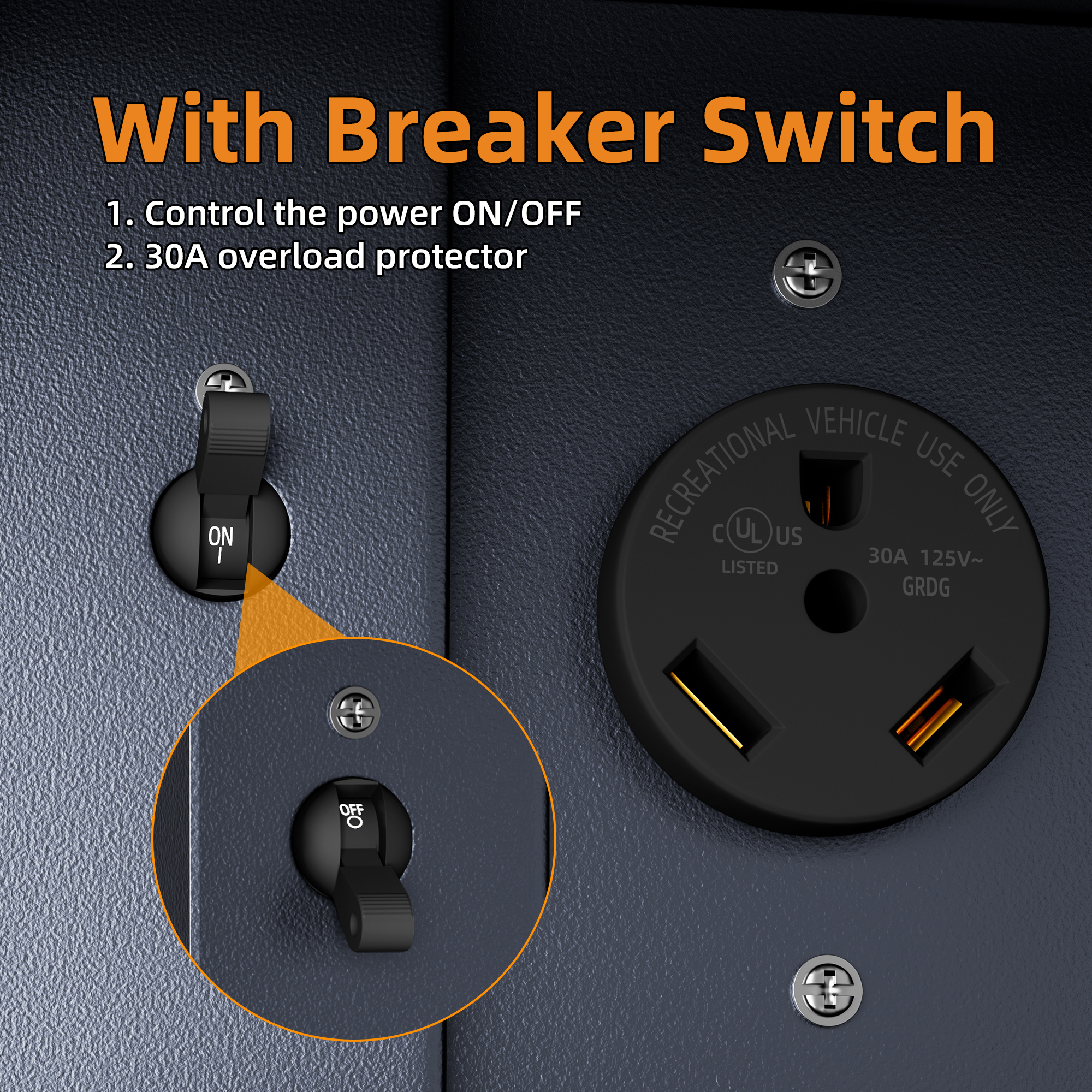

- Built-in Circuit Protection for Enhanced Safety
This RV power outlet box features a built-in 30A circuit breaker with an ON/OFF switch, providing automatic circuit protection in case of overload. This eliminates the need for separate installation, enhancing convenience and safety during operation.
- Heavy-Duty Construction for Durability
Crafted from robust cold-rolled steel, this 30 Amp 125V RV breaker box delivers durability and sturdiness. Sized at 6.7″×6.3″×6″, this outdoor receptacle panel is equipped with UL Certified 30 amp outlets, ensuring reliable performance in demanding environments.
- Ample Space for Easy Connections
Designed with generous space, the RV outlet box accommodates large handles and heavy-duty 30 amp-rated wires. This ensures easy plugging while still allowing the door to close and lock securely. The swing cover features a damping system for stability during operation.
- Weatherproof and Long-Lasting Design
The 30 Amp RV receptacle panel is built for long-lasting performance in outdoor settings. The complete spraying process and dual rust-resistant materials provide robust corrosion resistance. It’s waterproof, anti-thunder, fire-resistant, dustproof, and UV-protected, ensuring a longer life cycle and safe outdoor use.

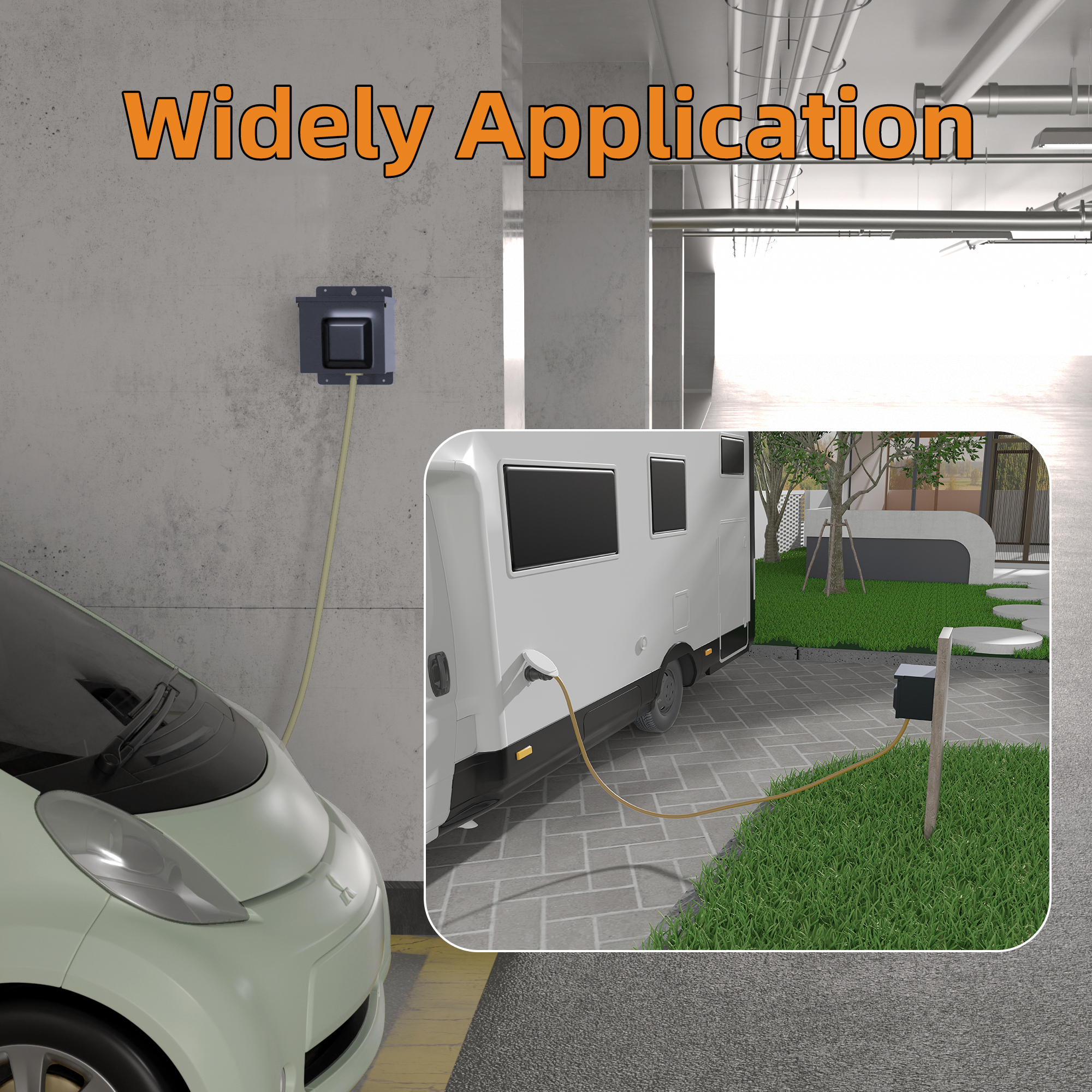

- Versatile Applications for Construction and Recreation
Tailored for outdoor service, the 30 Amp RV outlet box caters to the temporary power supply needs of various applications, including construction sites, RVs, new energy trams, motorcycles, and more. It provides a convenient and reliable solution for diverse power needs.
POP-1-30A-C 125/250V 30 Amp RV Outlet Box Datasheet
| Material | Iron, Type 3R Enclosure Rainproof |

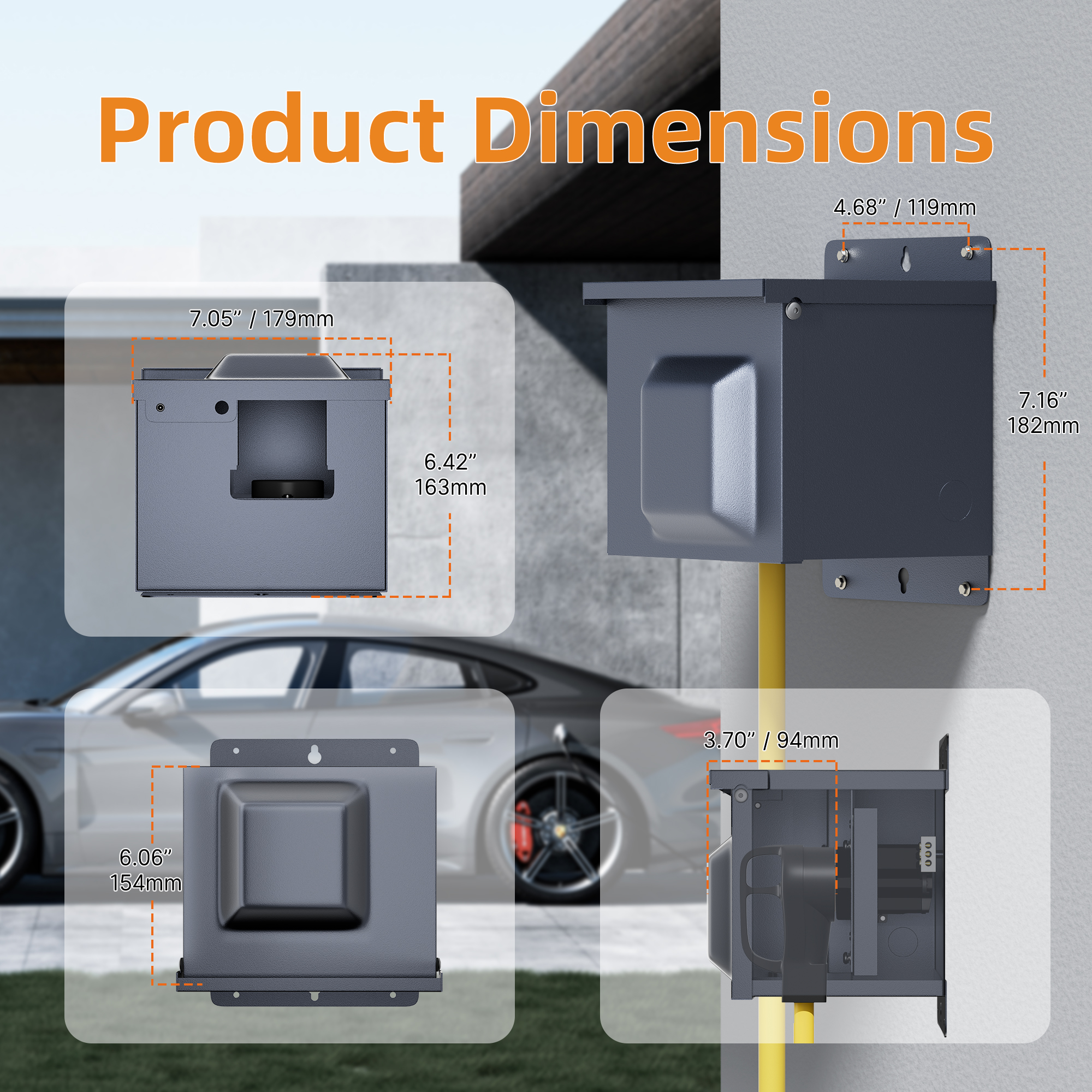

| Dimensions |
7.05″×6.42″×6.06″ / 179mm×163mm×154mm |
| Socket Type | NEMA TT-30R |
| Current Rating | 30Amp |
| Operating Voltage | 125 Volts / 250 Volts |
| Wire Range | 10-4AWG |
If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
