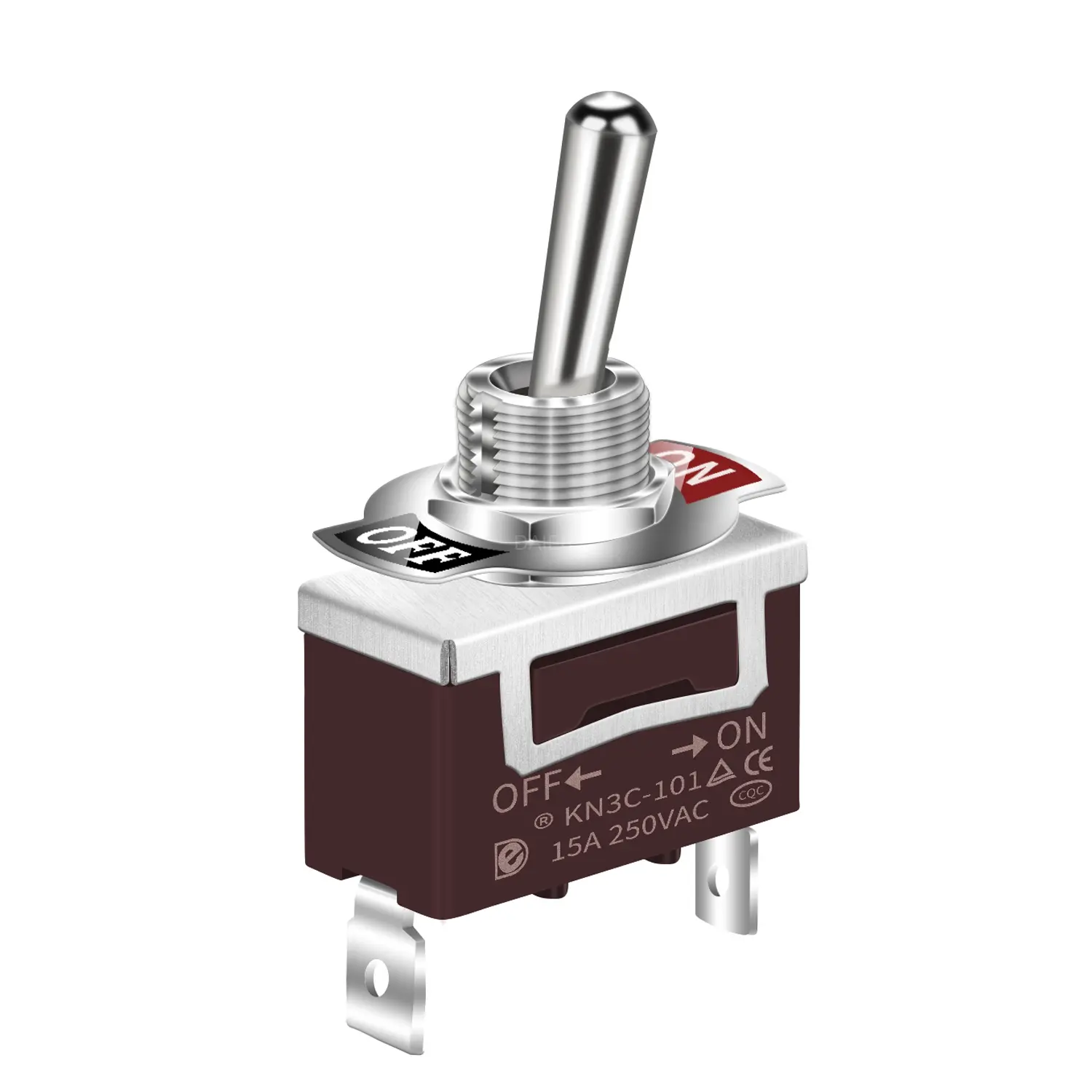

KN3C-101P Spade Terminal Toggle Switch

KN3C-101P Spade Terminal Toggle Switch

Delicate appearance with strong Construction.Look chic and high-end on your equipment.

KN3C-101P Spade Terminal Toggle Switch

Delicate appearance with strong Construction.Look chic and high-end on your equipment.

KN3C-101P Spade Terminal Toggle Switch

Feature: The SPST toggle switch is made of metal and bakelite.The shaft and bracket are both made of Brass Material.Delicate appearance with strong Construction.Look chic and high-end on your equipment.

Function: SPST toggle switch with 2 pins, SPST design (single pole single throw), designed with rocker style, easy to turn ON/OFF.The rating is 15A 250VAC/20A 125VAC.

Installation: Mounting hole size is 0.48 inches (12.2MM).Each of the terminals has a PCB terminal for quick connections.(Screw terminal is available)The thickness of Terminals is 0.8mm.

Mechanical life: more than 100,000 cycles. Electrical life: more than 10, 000 cycles.

Application: SPST toggle switch is widely applied to various additional electric equipment inside and outside the car, such as lights, chassis lamp, fog lamps, dome light etc.

Toggles switches range in Daier from 1 to 4 poles, 1 to 20 amps. We offer a variety of nylon and metal toggle styles, as well as illuminated toggles. We have many kinds of terminal, the most popular terminal is PCB terminal, then is screw terminal.

They are widely used in industrial equipment. Some of switches made by bakelite. Because of the advantage of switches are large current and long life, they are popular in market.

Several families of heavy-duty toggle switches are available, as well as a high-temperature snap-in toggle switch series. Certifications include CE, CQC, TUV&SGS.

The KN3C-101 toggles switches related product, pls check the detailed information as below:

KN3C-101 2Pin, ON-OFF, screw terminal
KN3C-111 2Pin, OFF- momentary ON, screw terminal
KN3C-101P 2Pin, ON-OFF, PCB terminal
KN3C-111P 2Pin, OFF- momentary ON, PCB terminal

Pls check the datasheet below:



Housing: Bakelite Lever: Brass with Nickel plated
Terminal: Brass with sliver plated Contact & Operation: ON-OFF/(ON)-OFF
Rating: 6A/10A/20A 250VAC Contact Resistance: 50mΩ max
Electrical Life: ≥ 10,000 Cycles Mechanical Life: ≥ 100,000 Cycles
Dielectric strength: 1500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 1000mΩ min (500VDC) OEM or ODM: Available
KN3C safety toggle switch
