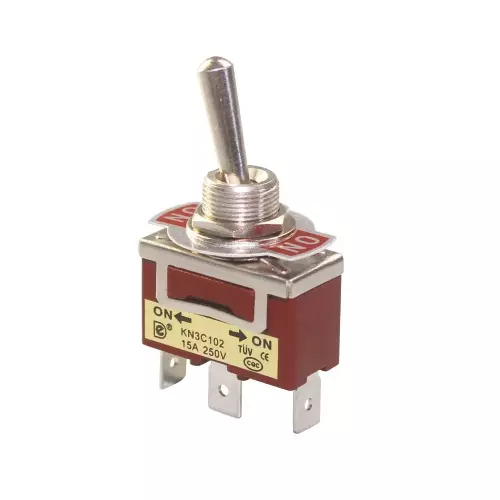

KN3C-102 SPDT Medium Toggle Switch

KN3C-102 SPDT 3P Medium Toggle Switch with ON-ON function

KN3C-102 3Pin, ON-ON, screw terminal KN3C-102P 3Pin, ON-ON, PCB terminal
KN3C-112 3Pin, ON- momentary ON, screw terminal KN3C-112P 3Pin, ON- momentary ON, PCB terminal
KN3C-103 3Pin, ON-OFF-ON, screw terminal KN3C-103P 3Pin, ON-OFF-ON, PCB terminal
KN3C-113 3Pin, ON-OFF- momentary ON, screw terminal KN3C-113P 3Pin, ON-OFF- momentary ON, PCB terminal
KN3C-123 3Pin, momentary ON-OFF- momentary ON, screw terminal KN3C-123P 3Pin, momentary ON-OFF- momentary ON, PCB terminal

KN3C-102 SPDT 3P Medium Toggle Switch Color of base: Brown color and Black color for your choice.

KN3C-102 SPDT 3P Medium Toggle Switch Handle: Standard handle, short handle and long handle for your choice.

KN3C-102 SPDT Medium Toggle Switch:

A toggle switch is actuated by moving a lever back and forth to open or close an electrical circuit. Toggle switches offer a variety of switching functions – SPDT, SPST, DPDT, DPST, and multiple actuator and bushing options. Our toggle switches also come in different sizes, from Sub-miniature, miniature to Medium.There are two basic types: maintained contact and momentary toggle switches. A maintained switch changes its position when actuated and will remain in that position until actuated again, such as an ON/OFF function. A momentary toggle switch is actuated only when someone is operating the switch.  Because of its ease of operation, the toggle switch is used in various applications, including military/aerospace, commercial, plant and industrial engineering, instrumentation, and medical equipment.

KN3C-102 SPDT Medium Toggle Switch datasheet below:



Housing: Bakelite Lever: Brass with Nickel plated
Terminal: Brass with sliver plated Contact & Operation: ON-OFF/(ON)-OFF
Rating: 6A/10A/20A 250VAC Contact Resistance: 50mΩ max
Electrical Life: ≥ 10,000 Cycles Mechanical Life: ≥ 100,000 Cycles
Dielectric strength: 1500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 1000mΩ min (500VDC) OEM or ODM: Available

KN3C-102 SPDT  Medium Toggle Switch related product, pls check the detailed information as below:

KN3C-102 3Pin, ON-ON, screw terminal KN3C-102P 3Pin, ON-ON, PCB terminal
KN3C-112 3Pin, ON- momentary ON, screw terminal KN3C-112P 3Pin, ON- momentary ON, PCB terminal
KN3C-103 3Pin, ON-OFF-ON, screw terminal KN3C-103P 3Pin, ON-OFF-ON, PCB terminal
KN3C-113 3Pin, ON-OFF- momentary ON, screw terminal KN3C-113P 3Pin, ON-OFF- momentary ON, PCB terminal
KN3C-123 3Pin, momentary ON-OFF- momentary ON, screw terminal KN3C-123P 3Pin, momentary ON-OFF- momentary ON, PCB terminal
