KN3C-223AAP+WPC-06+UPDOWN 30A 12VDC Polarity Reversal (ON)-OFF-(ON) 6 Pin Momentary Toggle Switch
Part#KN3C-223AAP+WPC-06+UPDOWN

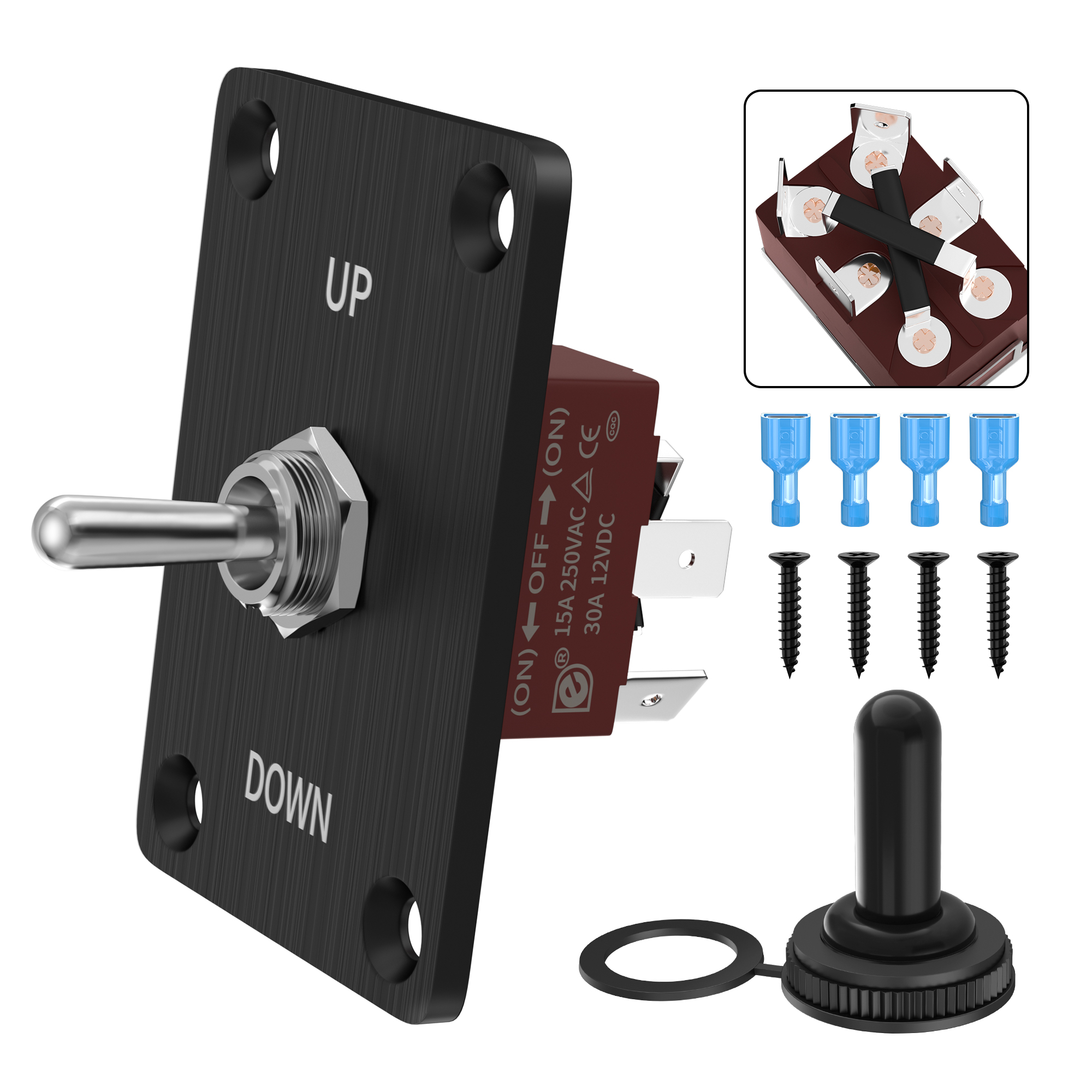

The 30A 12VDC polarity reversal 6 pin momentary toggle switch is a heavy-duty, (ON)-OFF-(ON) switch with UP/Down mounting plate and waterproof cap.

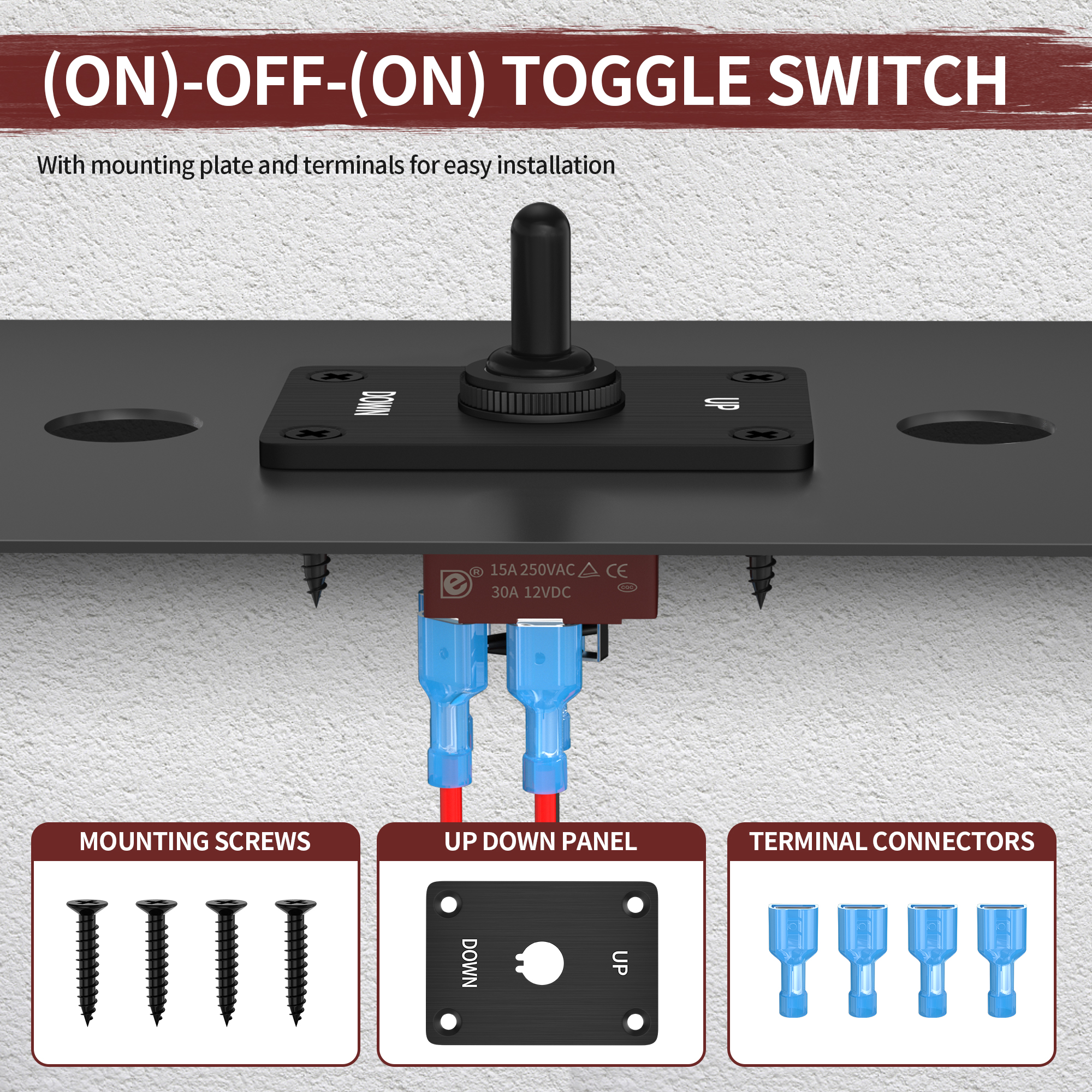

With a compact panel mount design, it provides efficient terminal connections and is ideal for controlling DC motor direction in various settings, such as RV power jacks and fifth-wheel applications.
KN3C-223AAP+WPC-06+UPDOWN 30A 12VDC Polarity Reversal (ON)-OFF-(ON) 6 Pin Momentary Toggle Switch Features
- Versatile Functionality
Featuring a momentary (ON)-OFF-(ON) DPDT 3-position configuration with 4 pins, this toggle switch is rated at 30A 12VDC, making it suitable for both DC and AC circuits, with ratings of 15A 250VAC and 20A 125VAC.
- Heavy-Duty Design
Specifically designed for controlling DC motor direction, this heavy-duty reverse polarity toggle switch serves as an ideal replacement for RV power jack switches, ensuring reliable performance in applications requiring robust switching capabilities.
- Compact Panel Mount

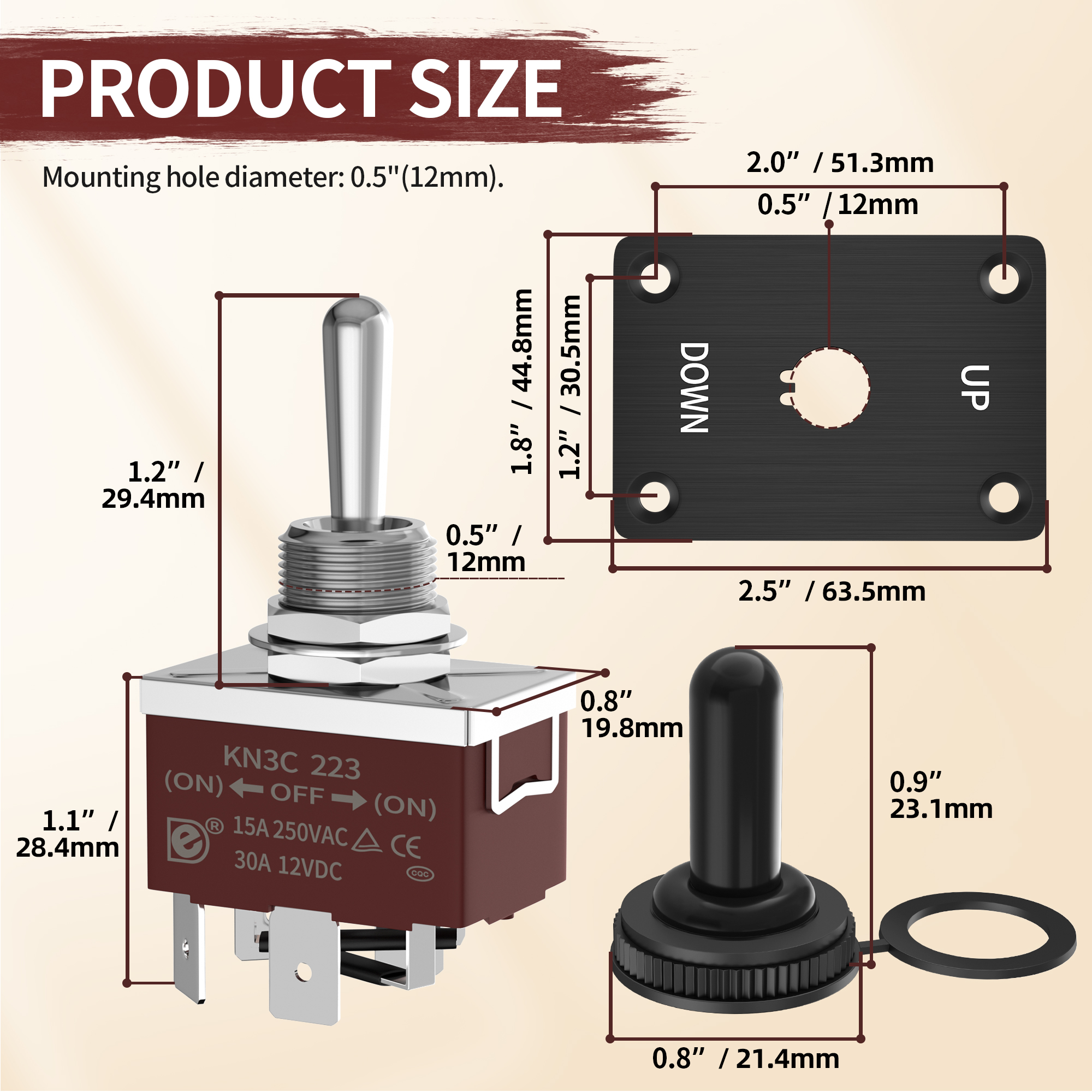

Designed for easy installation, this toggle switch is a panel mount type with a mounting hole size of 0.48 inches (12.2MM), providing a secure and stable fit for various applications.
- Efficient Terminal Connections
Equipped with marine-grade 3-way 12V toggle switches featuring #250 spade terminals (6.35X0.8mm), this toggle switch facilitates quick and secure connections for streamlined installation.
- Wide Range of Applications
With built-in jumper bars for polarity reversing, this toggle switch is a versatile replacement for most RV/trailer power tongue jacks, fits many fifth-wheel jacks, and serves as a suitable replacement for some power awning switches. Additionally, it is commonly used as a switch on most remote control handles.
KN3C-223AAP+WPC-06+UPDOWN 6 Pin Momentary Toggle Switch Datasheet
| Rating: | 30A 12V DC ; 20A 125VAC ; 15A 250VAC |
| Material: | Bakelite, Metal |
| Contact Material: | Silver |
| Panel Cut-Out Size: | 12mm |
| Function: | (ON)-OFF-(ON) DPDT |
| Terminal: | 4 Pins |
| Connector Type | Quick Connect(6.3×0.8mm) |
| Contact Resistance: | ≤50mΩ |
| Insulated Resistance: | ≥100MΩ |
| Dielectric Strength: | 1 Minute 1500V AC |
| Operating Temperature: | -25℃~+85℃ |
| Electrical Life: | ≥10,000 Cycles |
If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
