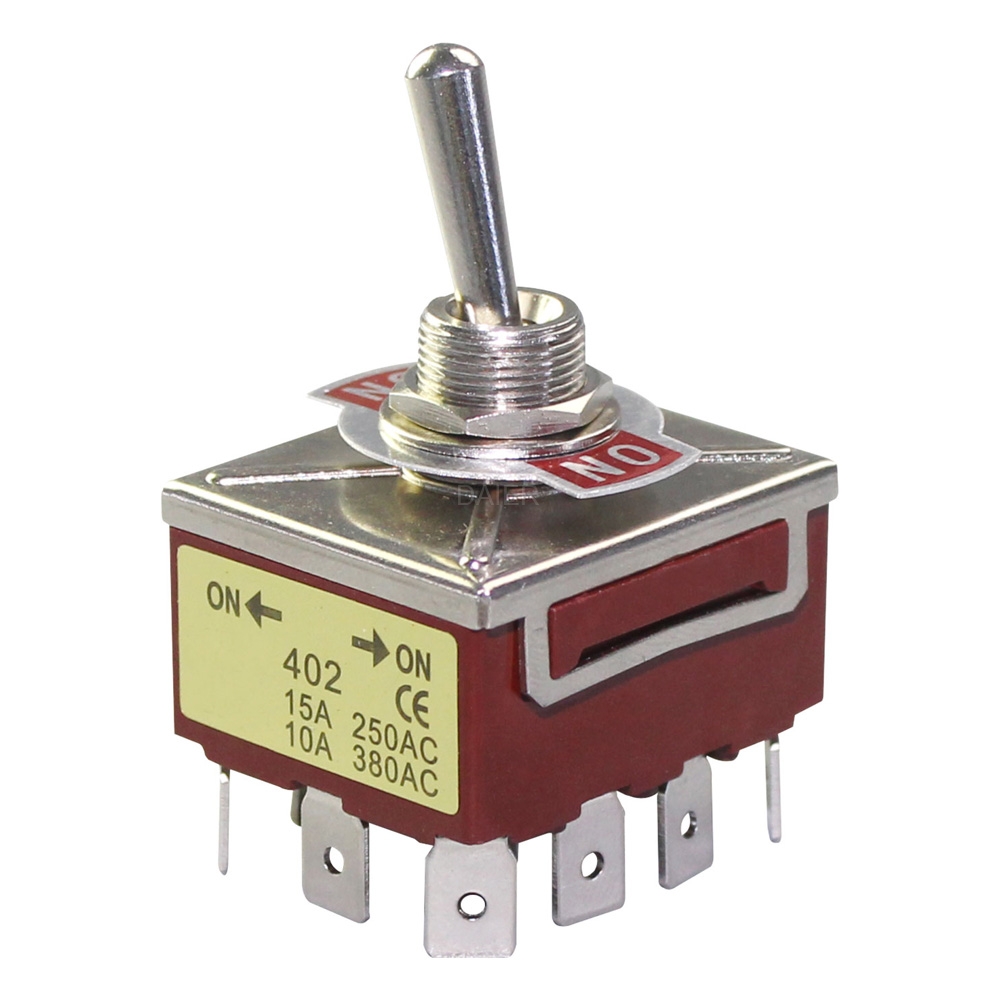

KN3C-402 4PDT ON ON Toggle Switch:
Toggles switches range in Daier from 1 to 4 poles, 1 to 20 amps. We offer a variety of nylon and metal toggle styles, as well as illuminated toggles. We have many kinds of terminal, the most popular terminal is PCB terminal, then is screw terminal.
They are widely used in industrial equipment. Some of switches made by bakelite. Because of the advantage of switches are large current and long life, they are popular in market.
Several families of heavy-duty toggle switches are available, as well as a high-temperature snap-in toggle switch series. Certifications include CE, CQC, TUV&SGS.
KN3C-402 4PDT ON ON Toggle Switch related items:
| KN3C-402 | 12 Pin, ON-OFF, screw terminal |
| KN3C-403 | 12 Pin, ON-OFF-ON, screw terminal |
| KN3C-402p | 12 Pin, ON-OFF, PCB terminal |
| KN3C-403P | 12 Pin, ON-OFF-ON, PCB terminal |

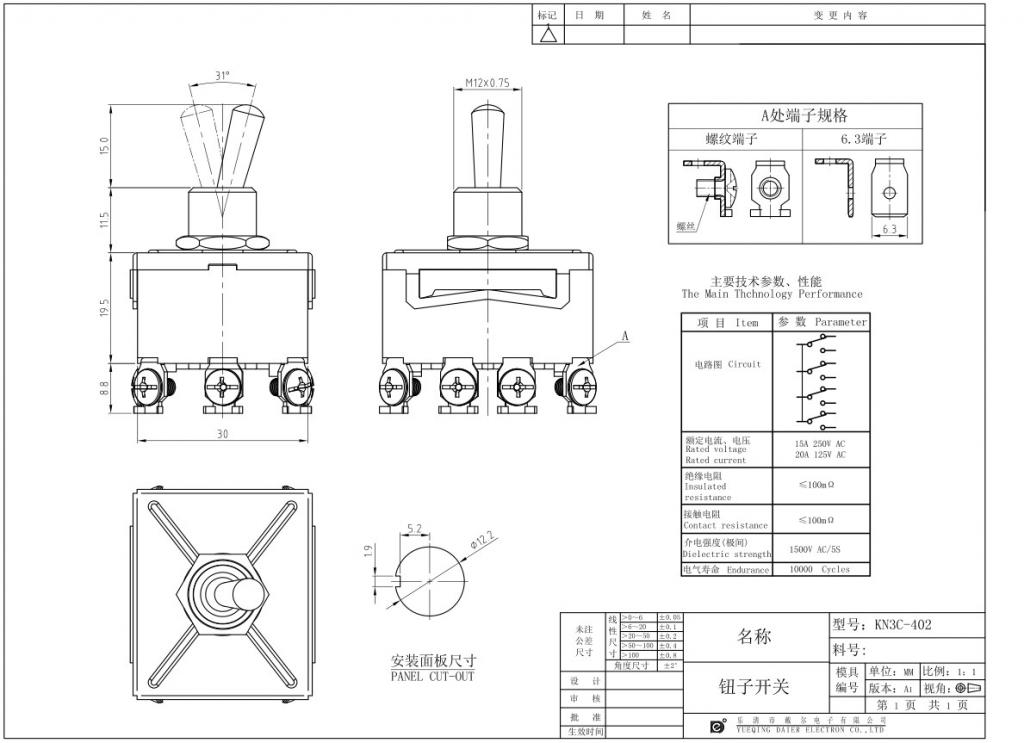

KN3C-402 4PDT ON ON Toggle Switch datasheet below:
| Housing: | Bakelite | Lever: | Brass with Nickel plated |
| Terminal: | Brass with sliver plated | Contact & Operation: | ON-OFF/(ON)-OFF |
| Rating: | 6A/10A/20A 250VAC | Contact Resistance: | 50mΩ max |
| Electrical Life: | ≥ 10,000 Cycles | Mechanical Life: | ≥ 100,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 1000mΩ min (500VDC) | OEM or ODM: | Available |
