R13-501-101 Heavy Duty Toggle Switch

R13-501-101 Heavy Duty Toggle Switch, IP65 Waterproof Switch 50 Am 12V , 2 Pin ON-OFF with Rubber Boot Cover

R13-501-101 Heavy Duty Toggle Switch:

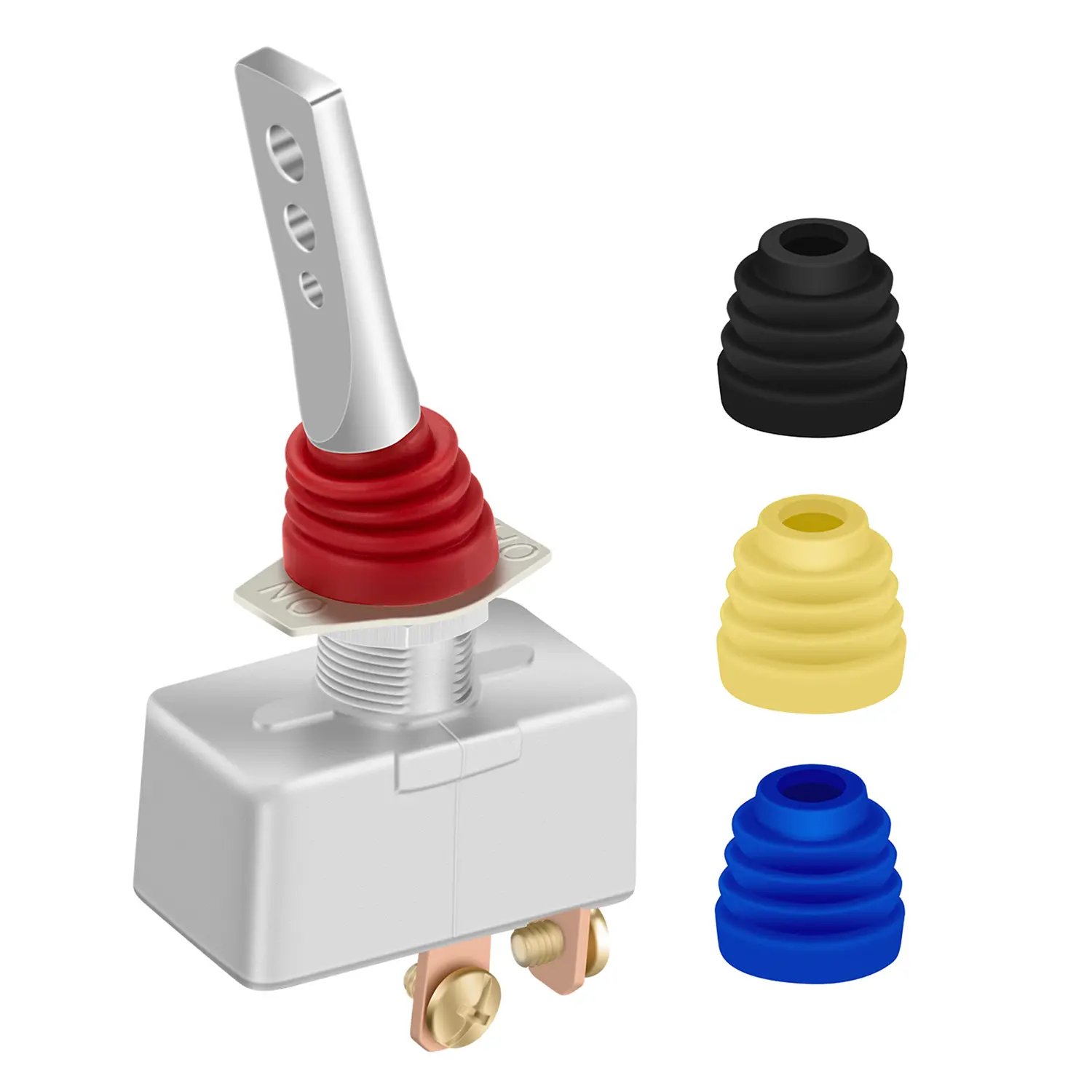

  • 【Waterproof Toggle Switch】The toggle switch with rubber boot covered to be IP65 waterproof, 4 colors of covers (black, amber, red, blue) for your choose.
  • 【50 Amp Toggle Switch 12 Volt】50A 12V Heavy Duty toggle switch with screw terminals.

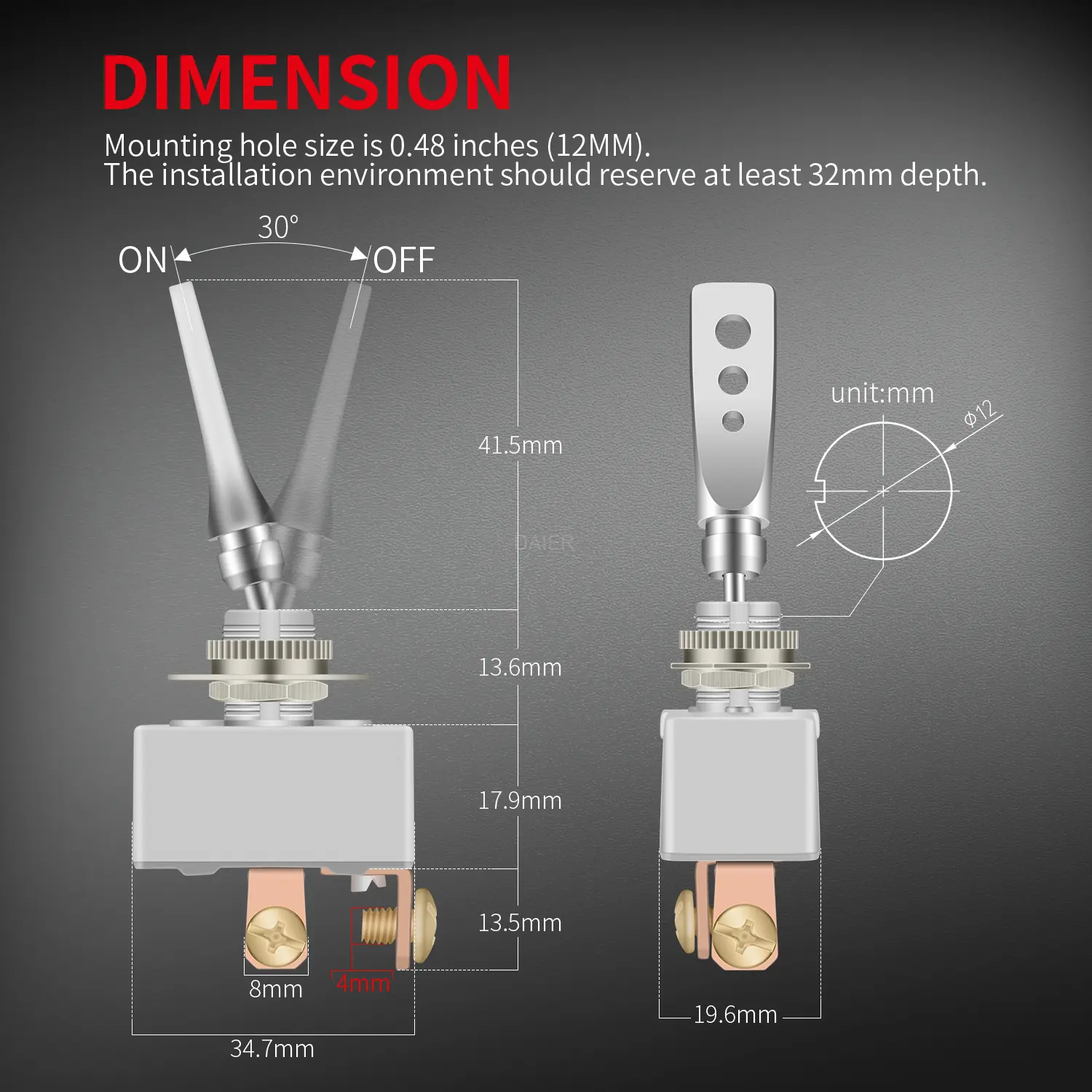

  • 【Aluminum Housing】The whole housing of this toggle switch is made of Aluminum, Durable enough. And the switch with 12mm panel mounting hole Dia.
  • 【ON OFF Toggle Switch】The toggle switch is 2 Pin SPST (Single Pole Single Throw) Version, Easy to toggle ON/OFF.
  • 【Application】 It’s widely used as Automotive Replacement Toggle Switch, Fit for most Car, RV, ATV, UTV, Truck, Automotive, Marine, Boat and other electric equipments.

R13-501-101 Heavy Duty Toggle Switch datasheet below:



Housing: Die-cast Aluminum Contact & Operation: ON-OFF
Rating: 50A / 12VDC Contact Resistance: 50mΩ max
Electrical Life: ≥ 10,000 Cycles Mechanical Life: ≥ 100,000 Cycles
Dielectric strength: 1500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 1000mΩ min (500VDC) OEM or ODM: Available
