RB-R6F6-3 12V Automotive 6 Way Fuse and Relay Module Box with LED Indicators
Part#RB-R6F6-3
This 12V 6 way fuse and relay module box offers a comprehensive wiring solution with pre-installed relays, fuses, a relay module, and LED indicators.
Ensures safe and reliable operation in a wide variety of applications and is ideal for organizing and protecting the circuits of automobiles, boats and other types of vehicles.
Category :
Relay & Relay Box
RB-R6F6-3 12V Automotive 6 Way Fuse and Relay Module Box with LED Indicators Details
-
High-Capacity and Versatile

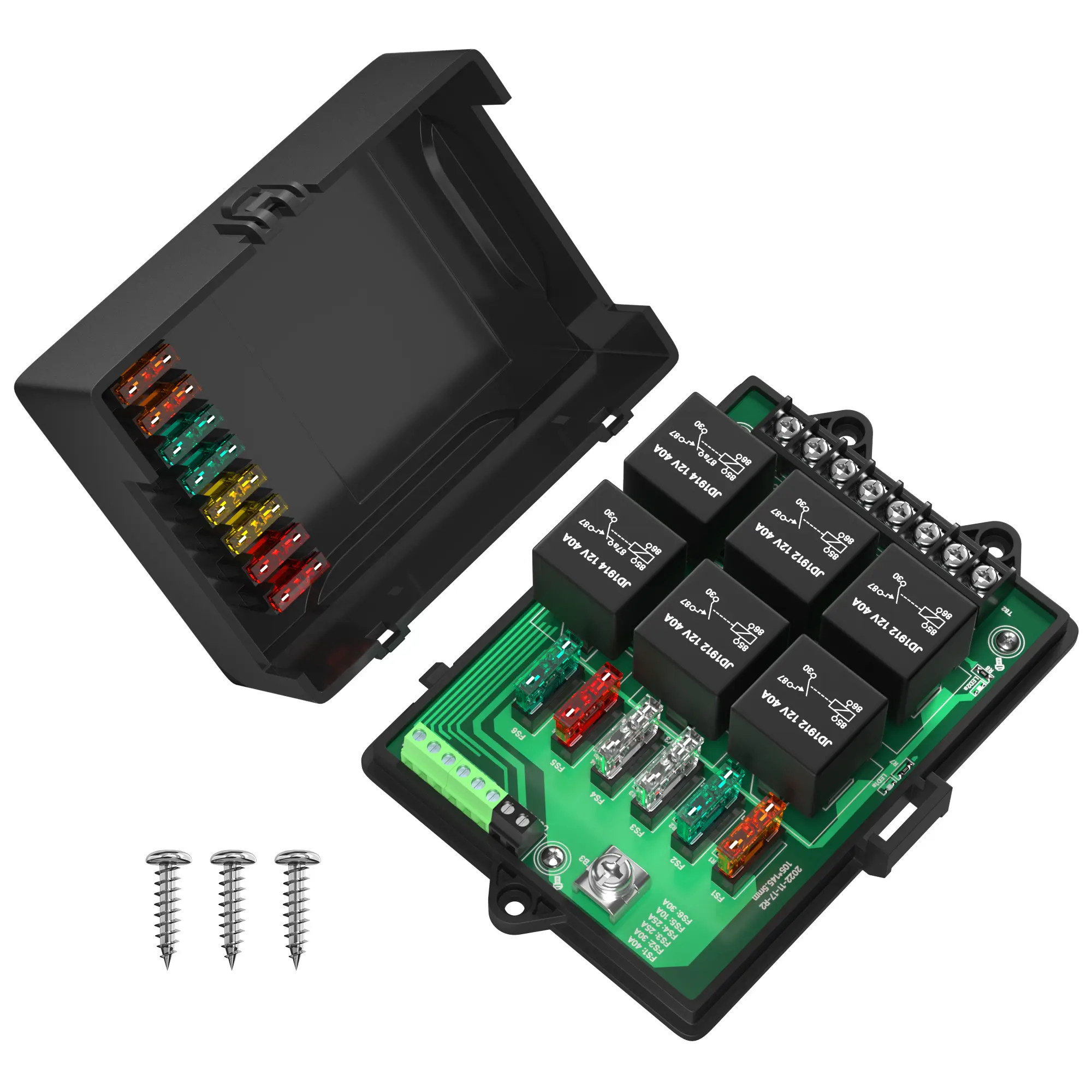

This 12V fuse and relay box offers ample capacity for various electrical circuits. The box comes pre-assembled with two 5-pin 40A relays, four 4-pin 40A relays, and a comprehensive assortment of fourteen blade fuses (10A, 15A, 20A, 25A, 30A, and 40A), providing a complete solution for your wiring needs.
-
Simplified Installation with Relay Module

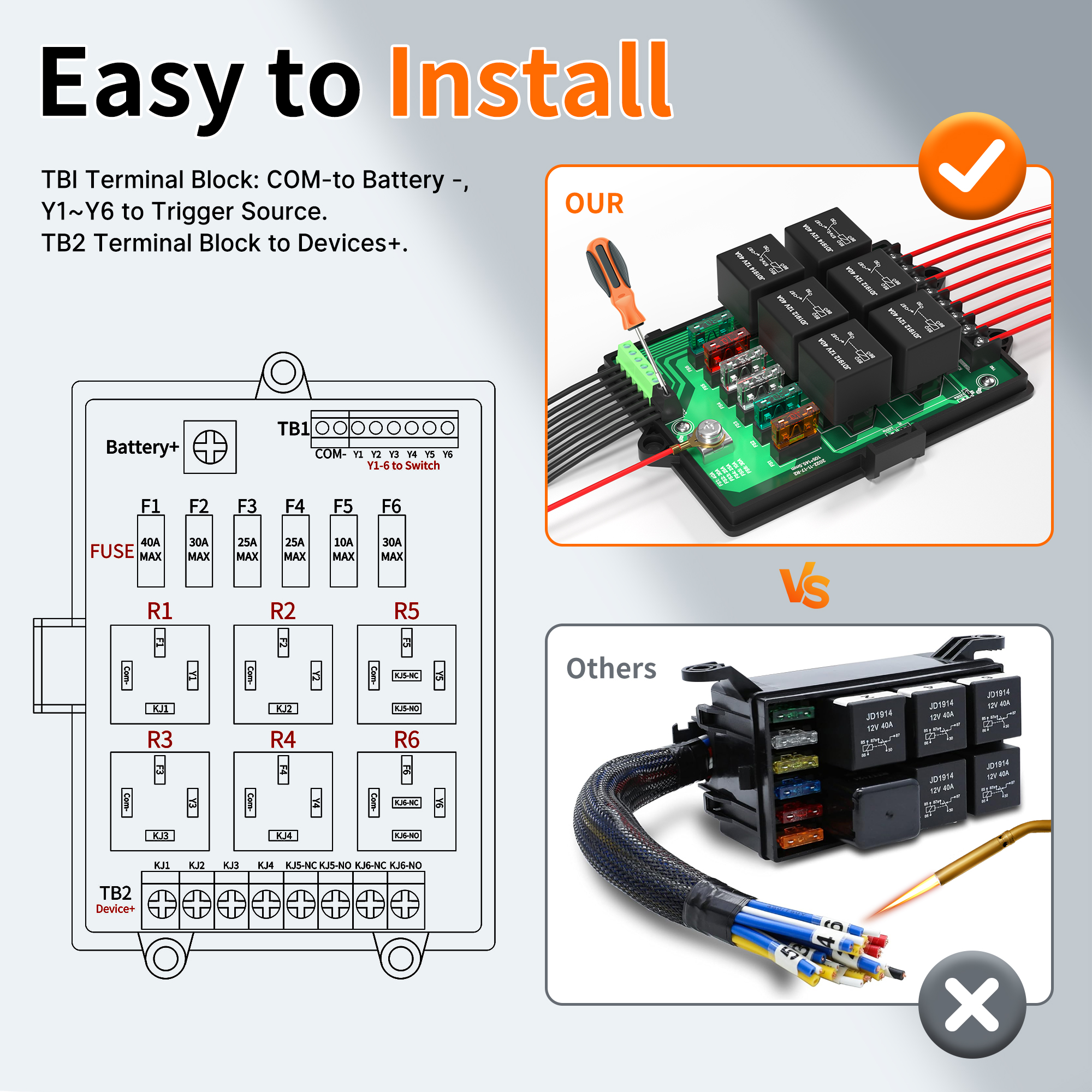

This upgraded fuse relay box features a pre-assembled relay module, eliminating the need for complex wiring or soldering. This streamlined design makes installation faster, easier, and more flexible. All necessary components are neatly organized within the box, simplifying your wiring projects.
-
Clear LED Status Indicators

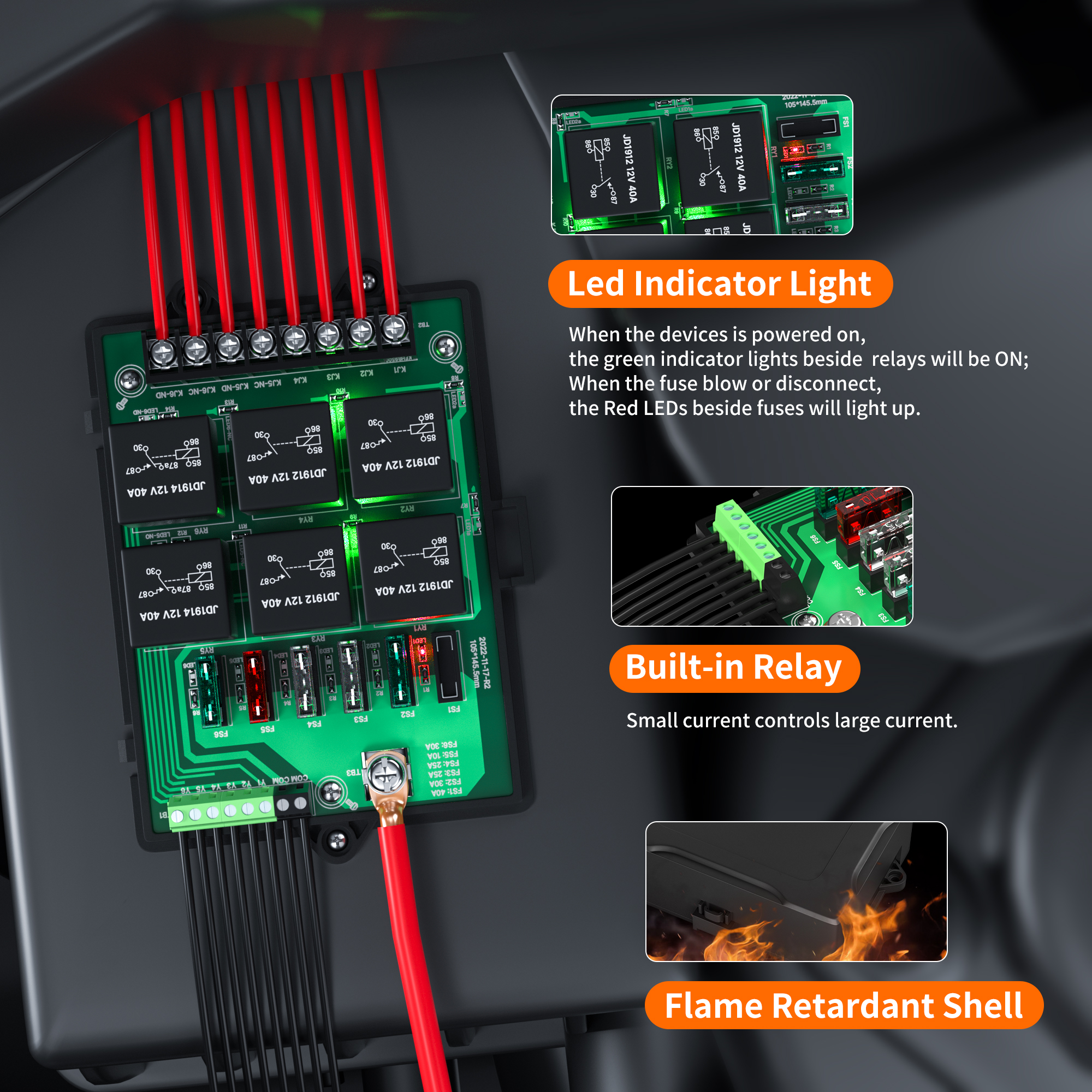

The relay box features LED indicator lights for each relay and fuse, providing real-time visual feedback on their operating status. This allows for quick and easy identification of any blown fuses or malfunctioning relays, simplifying troubleshooting and maintenance.
-
Durable and Safe Design

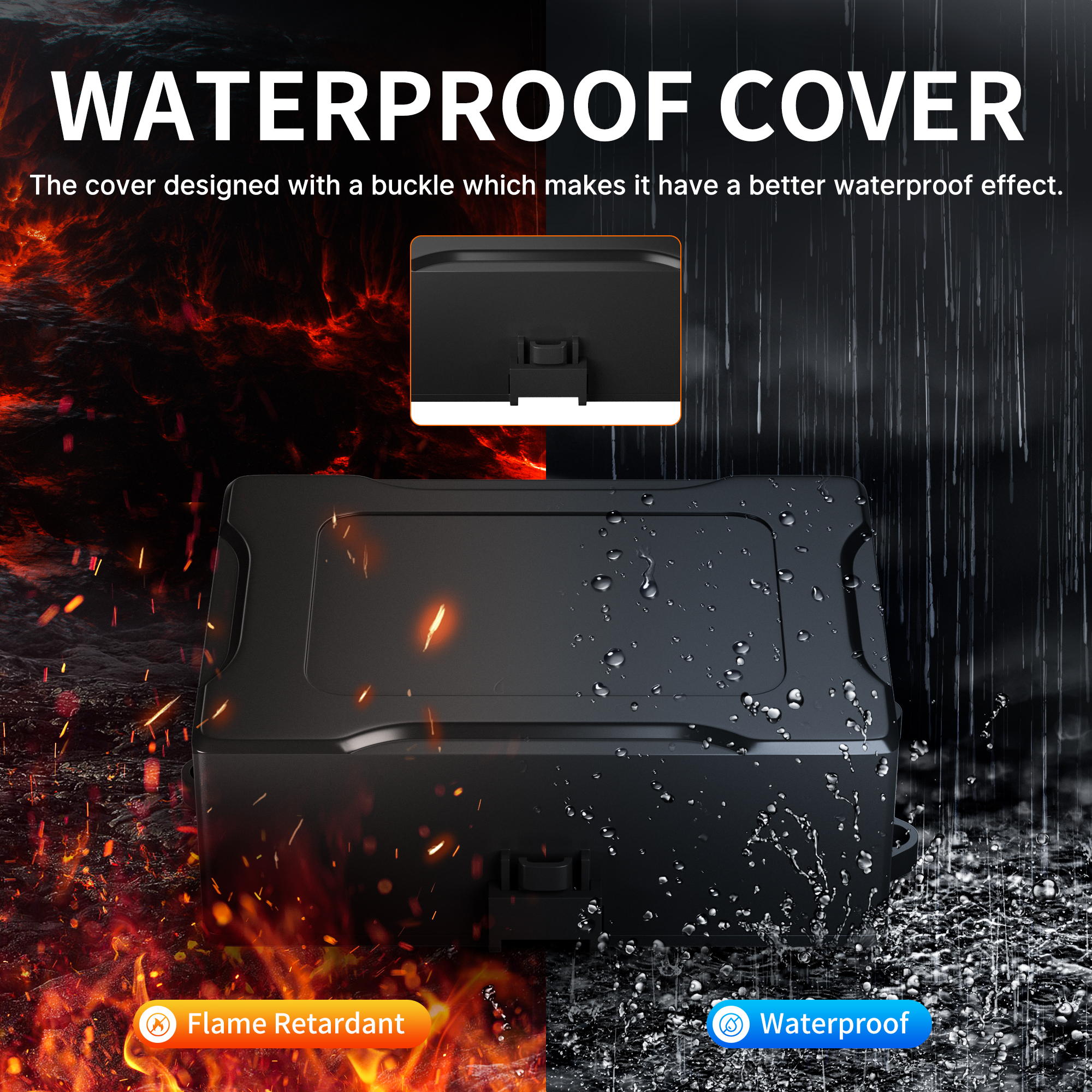

The relay box is constructed with a high-quality, flame-retardant nylon shell, providing reliable protection for your electrical system. The waterproof cover features a secure buckle, enhancing protection against moisture, dust, and other environmental factors. Additionally, the relay box offers overvoltage and surge protection, safeguarding your connected devices and ensuring safe operation.
- Compact and Space-Saving

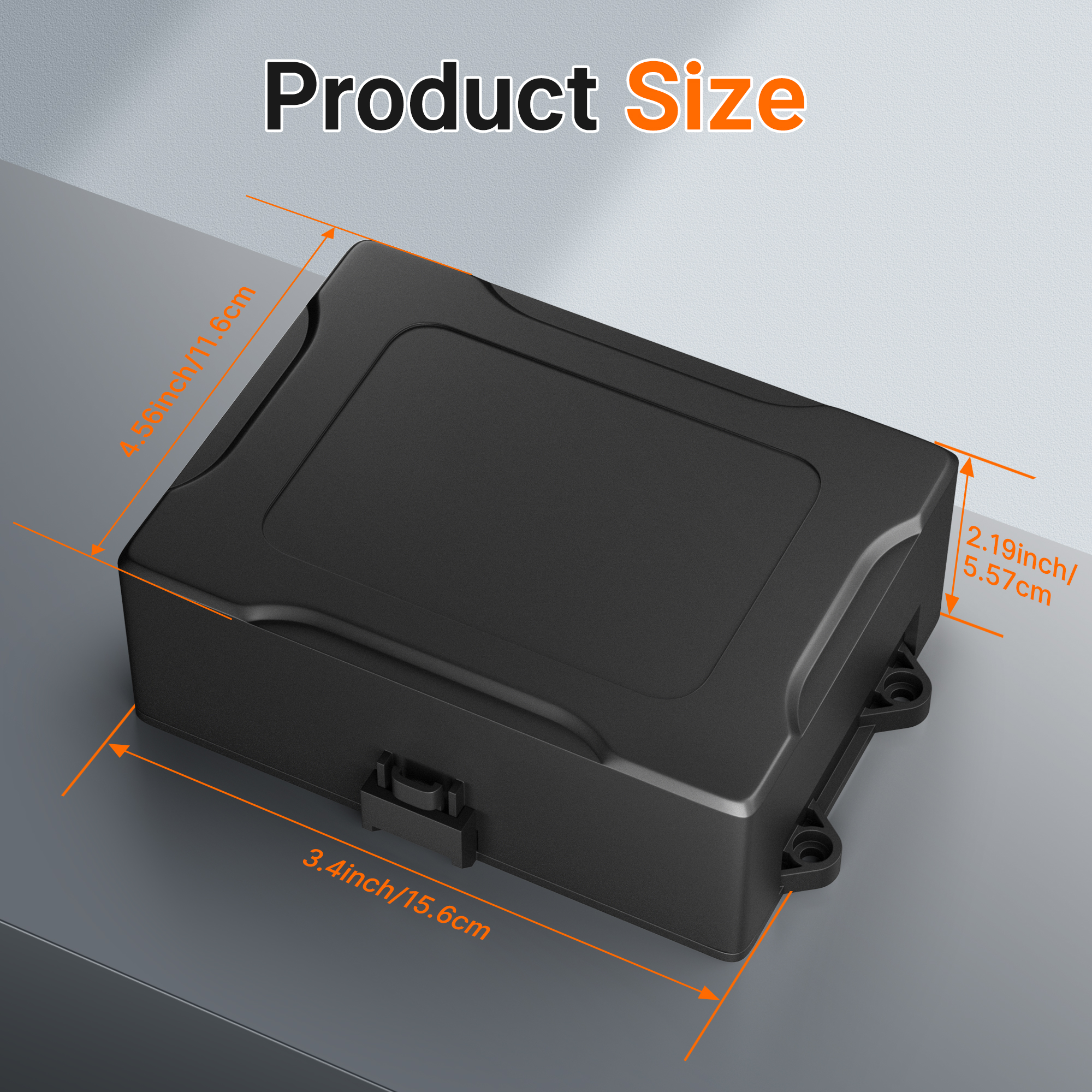

This relay box measures 3.4 x 2.19 x 4.56 inches (15.6 x 5.57 x 11.6 cm), making it a compact and space-saving solution for organizing your wiring and relays. It is easy to install in various locations within your vehicle or other applications.
- Wide Application Compatibility
This versatile relay box is suitable for a wide range of vehicles and applications, including cars, SUVs, UTVs, ATVs, RVs, pickup trucks, trailers, campers, marine boats, and more. Its broad compatibility makes it a valuable tool for managing electrical circuits in various automotive and marine settings.
RB-R6F6-3 12V Automotive 6 Way Fuse and Relay Module Box Datasheet
| Part NO | RB-R6F6-3 |
| Fuse Type | ATC & ATO Fuse |
| Relay Type | Bosch Relay |
| Number of Fuse Slots | 6 |
| Number of Relay Slots | 6 |
| Relay Box Size | 3.4 x 2.19 x 4.56 inches (15.6 x 5.57 x 11.6 cm) |
| Package Includes: | 1×Fuse and Relay Module Box 6×Relays (4×4 Pin Relay and 2×5 Pin Relay) 14×ATC/ATO Fuses (3×10A, 2×20A, 2×25A, 4×30A, 3×40A) |
