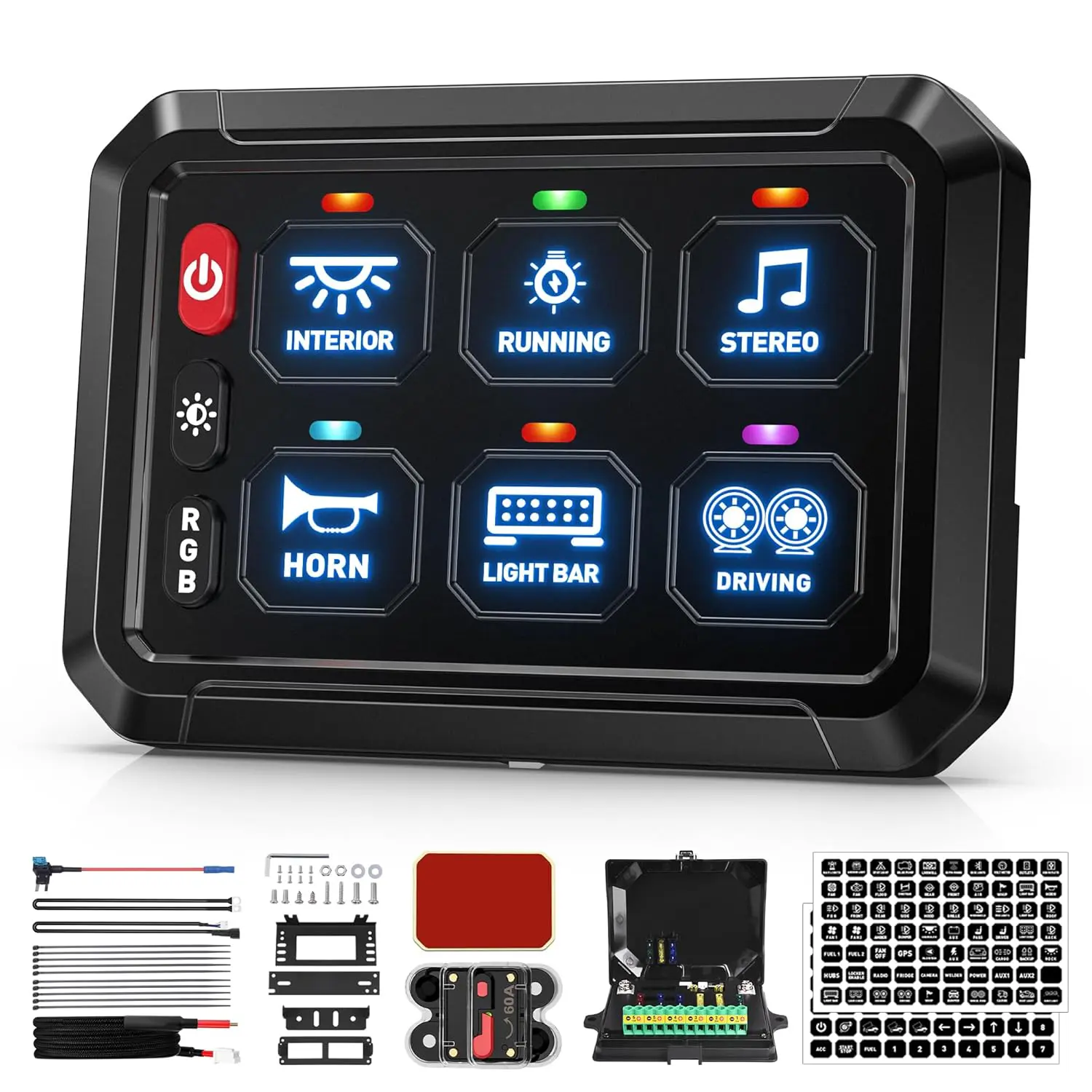

PN-SP6100B 6 Gang Switch Panel Relay System 4-Mode Control with Programmable RGB Backlighting – 8 Colors
Part#PN-SP6100B
This 6 gang switch panel offers centralized control of your vehicle’s accessories with customizable 8 colors backlighting, and four distinct switch modes (Constant, Momentary, Flash, Strobe).
The complete kit includes an 60A circuit breaker, a fused relay box for comprehensive protection, flexible mounting options, and the ability to draw power from either the battery or an ACC source.
PN-SP6100B 6 Gang Switch Panel Relay System 4-Mode Control Features
- Centralized Accessory Management
This 6 gang switch panel provides centralized control for all your vehicle’s electronic accessories from a single, convenient interface. The universal relay system is engineered to handle a maximum power of 720W at 12V or 1440W at 24V, with a total maximum current of 60A. Its high-power control box is ideal for managing light bars, horns, rock lights, and more.
- Customizable RGB Illumination
The RGB switch panel offers extensive personalization with 8 selectable solid colors to match your vehicle’s interior lighting. This illuminated control panel also features 5 levels of adjustable brightness and 3 dynamic backlight modes: Gradient, Jump, and Breathe. These settings allow you to create the perfect ambiance for your dash.
- Versatile Circuit Programming
Each of the 6 switches on this programmable switch panel can be individually set to one of three control modes: Constant Light (standard on/off), Momentary (press and hold), or Strobe (flashing). This multi-function relay box provides tailored control for diverse accessories like horns, warning lights, or winches. The system also remembers your last setting thanks to its integrated memory function.
- Comprehensive Circuit Protection
The automotive switch system includes an 60A manual reset circuit breaker for master protection of the entire system. Each of the 6 circuits is individually fused within the relay and fuse box, featuring varying ratings (1x 30A, 2x 20A, 2x 15A, 1x 10A) to match different accessory loads. This multi-layered protection design, including over-voltage and over-current safeguards, ensures safe and reliable operation.
- Flexible Installation & Power Source
This complete switch panel kit includes multiple mounting brackets for both the control panel and the relay box, allowing for a customized installation in your vehicle. A unique switch on the power distribution block allows you to select either the vehicle’s battery (BAT) or an ignition-switched source (ACC) for power. The kit also comes with 120 reusable switch labels for clear identification of your connected accessories.
PN-SP6100B 6 Gang Switch Panel Relay System 4-Mode Control Datasheet
| Part NO | PN-SP6100B |
| Operation Mode | ON-OFF |
| LED Color | 8 Colors |
| Operating Voltage | 12V-24V |
| Maximum Power | 720W/1440W |
| Maximum Current | 60A |
| Operating Temperature | – 40° C to 85° C |
| Panel Size | 5″×3.5″ |
| Relay Box Size | 6.4″×4.9″ |
