PN-SP12100B 12 Gang Switch Panel Relay System 3-Mode Control Box with RGB Backlighting – 8 Colors
Part#PN-SP12100B
This 12 gang switch panel offers centralized control of your vehicle’s accessories with customizable 8 colors backlighting, and three distinct switch modes (Constant, Momentary, Strobe).

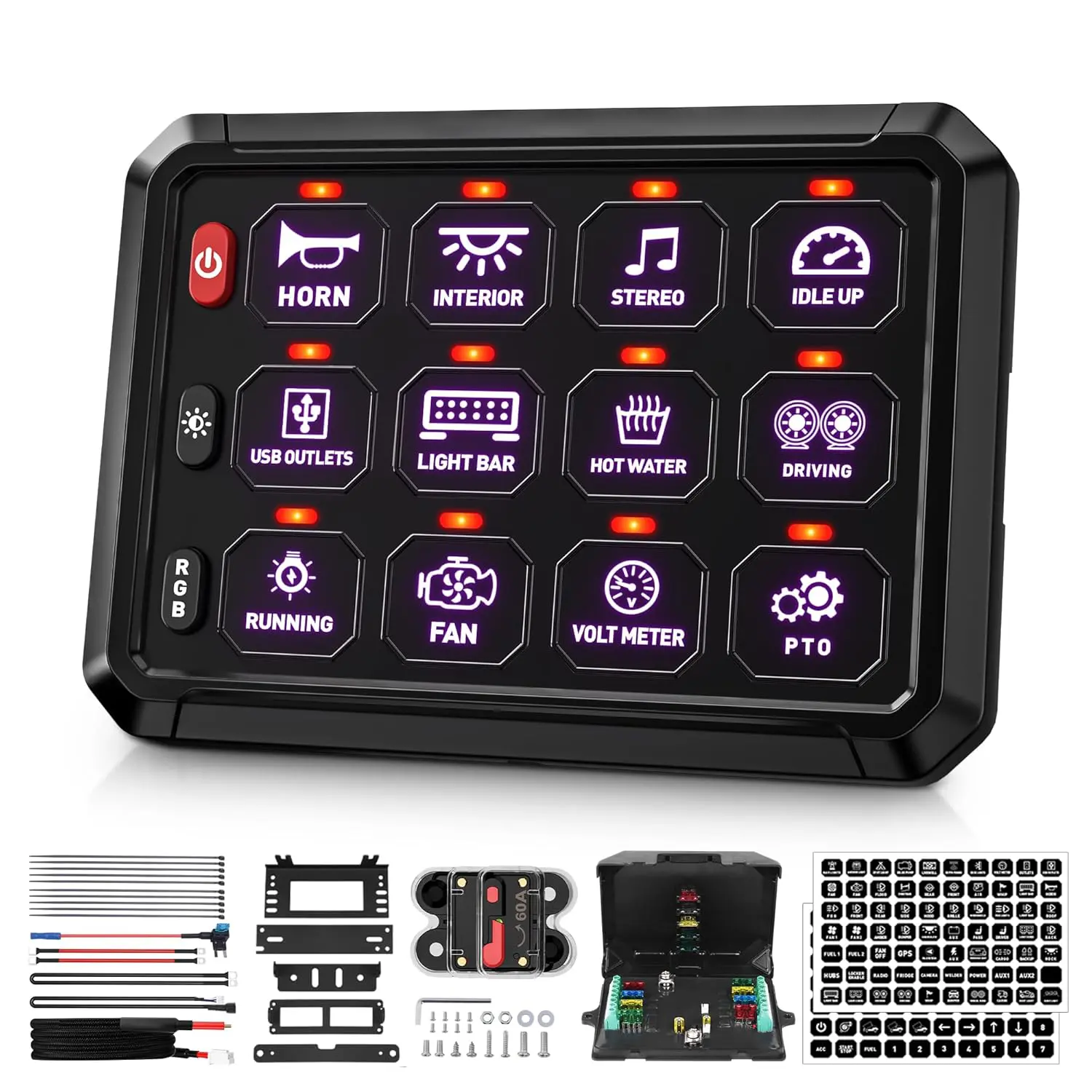

The complete kit includes an 80A circuit breaker, a fused relay box for comprehensive protection, flexible mounting options, and the ability to draw power from either the battery or an ACC source.
PN-SP12100B 12 Gang Switch Panel Relay System 3-Mode Control Box Features
- Centralized Accessory Management
This 12-gang switch panel provides centralized control for all your vehicle’s electronic accessories from a single, convenient interface. The universal relay system is engineered to handle a maximum power of 960W at 12V or 1920W at 24V, with a total maximum current of 80A. Its high-power control box is ideal for managing light bars, horns, rock lights, and more.
- Customizable RGB Illumination
The RGB switch panel offers extensive personalization with 8 selectable solid colors to match your vehicle’s interior lighting. This illuminated control panel also features 5 levels of adjustable brightness and 3 dynamic backlight modes: Gradient, Jump, and Breathe. These settings allow you to create the perfect ambiance for your dash.
- Versatile Circuit Programming
Each of the 12 switches on this programmable switch panel can be individually set to one of three control modes: Constant Light (standard on/off), Momentary (press and hold), or Strobe (flashing). This multi-function relay box provides tailored control for diverse accessories like horns, warning lights, or winches. The system also remembers your last setting thanks to its integrated memory function.
- Comprehensive Circuit Protection
The automotive switch system includes an 80A manual reset circuit breaker for master protection of the entire system. Each of the 12 circuits is individually fused within the relay and fuse box, featuring varying ratings (4x 30A, 2x 20A, 2x 15A, 4x 10A) to match different accessory loads. This multi-layered protection design, including over-voltage and over-current safeguards, ensures safe and reliable operation.
- Flexible Installation & Power Source
This complete switch panel kit includes multiple mounting brackets for both the control panel and the relay box, allowing for a customized installation in your vehicle. A unique switch on the power distribution block allows you to select either the vehicle’s battery (BAT) or an ignition-switched source (ACC) for power. The kit also comes with 120 reusable switch labels for clear identification of your connected accessories.
PN-SP12100B 12 Gang Switch Panel Relay System Datasheet
| Part NO | PN-SP12100B |
| Operation Mode | ON-OFF |
| LED Color | 8 Colors |
| Operating Voltage | 12V-24V |
| Maximum Power | 960W/1920W |
| Maximum Current | 80A |
| Operating Temperature | – 40° C to 85° C |
| Panel Size | 5″×3.5″ |
| Relay Box Size | 6.4″×4.9″ |
If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
