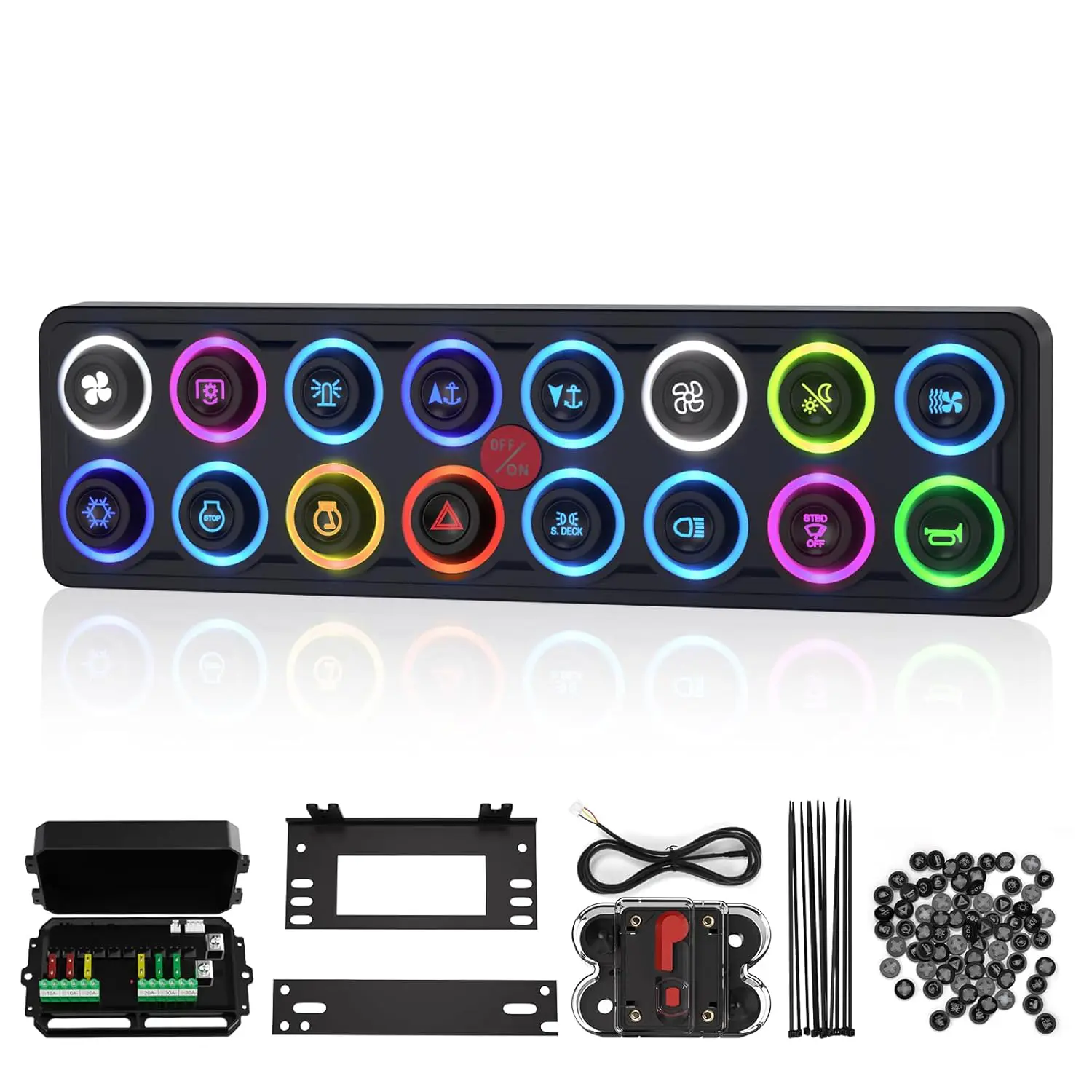

PN-RSP Series 4-Mode Control Switch Panel with 8-Color Backlight (5/6/8/12/16 Gang)

PN-RSP Series 4-Mode Control Switch Panel with 8-Color Backlight (5/6/8/12/16 Gang) Features

• Centralized Circuit Management

This switch panel system provides centralized control for up to 16 auxiliary circuits, making it ideal for managing all your vehicle’s accessories from one place. The automotive-grade control box supports a maximum power of 600W at 12V and 1200W at 24V, with a total current capacity of 60A. This universal relay system dramatically simplifies the wiring process for accessories like light bars, fog lights, rock lights, and horns.

• Advanced 8-Color Backlight

Each button on this illuminated switch panel features eight selectable color choices, allowing for complete personalization of your dashboard. The multi-color switch panel also offers four distinct lighting modes: Constant, Momentary, Strobe, and Chasing. This customizable interface provides both functional clarity and aesthetic appeal to perfectly match any vehicle interior.

• Innovative Reusable Icons

The programmable switch panel includes a set of 50 reusable icon stickers, offering superior flexibility compared to traditional permanent labels. These interchangeable button caps can be easily swapped to match the connected accessory, ensuring your panel layout remains accurate and intuitive. This user-friendly design allows for effortless reconfiguration as your accessory needs evolve.

• Resilient Panel & Protected System

The user-facing switch panel is IP68-rated sealed against dust and water ingress, making it suitable for dashboard mounting in open-cab or marine environments. The entire system is engineered to operate reliably in extreme temperatures from -40°C to 85°C (-40°F to 185°F). For complete electrical safety, the included 60A circuit breaker protects the entire system from over-current faults.

• Dedicated SOS Emergency Mode

This off-road switch panel features a unique, dedicated SOS strobe mode for emergency situations. A single press of the SOS button activates a flashing sequence of 3 short and 3 long bursts, mimicking a universal distress signal. This critical safety feature provides an added layer of security for marine, off-road, and remote travel applications.

PN-RSP Series 4-Mode Control Switch Panel with 8-Color Backlight Type

PN-RSP Series 4-Mode Control Switch Panel with 8-Color Backlight Datasheet

If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
