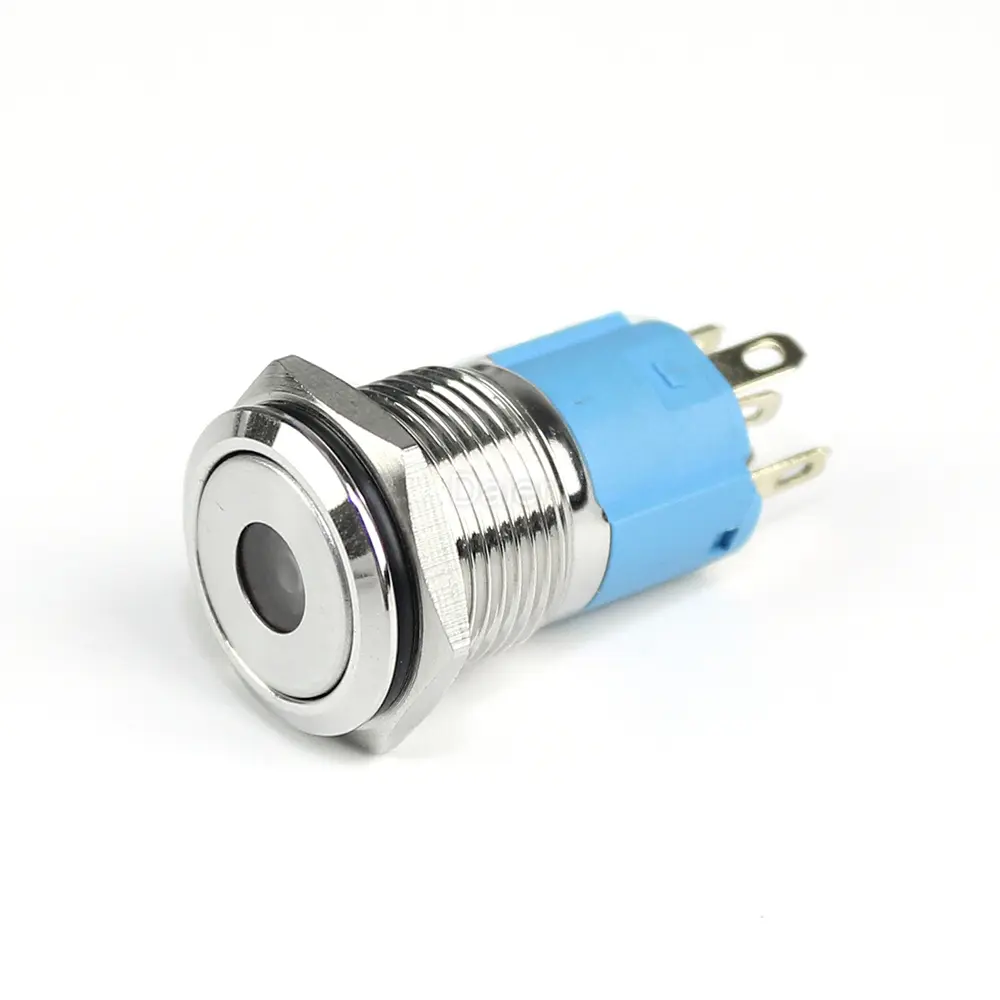

LAS3-16F-11D Waterproof 12v momentary and latching switch
LAS3-16F-11D Waterproof 12v momentary and latching switch:
LAS3-16F-11DM: ON-(ON) Momentary switch, Dot Illuminated
LAS3-16F-11DL: ON-ON Latching switch, Dot Illuminated
Category :
16MM Anti-Vandal
LAS3-16F-11D Waterproof 12v momentary and latching switch:
Daier announces the anti-vandal switch series, it is most popular item in our push button switch series.
They are RoHS certified, offering a rating of 3A 250VAC.
LAS3-16F-11D Waterproof 12v momentary and latching switch:
Check the detailed information as below
| LAS3-16F-11DM： | ON-(ON) momentary, Dot Illuminated |
| LAS3-16F-11DL: | ON-ON latching,Dot Illuminated |
Pls check the datasheet below:
| Rating: | 3A 250VAC | Contact Resistance: | 50mΩ max |
| Electrical Life: | 50,000 Cycles | Function: | momentary or latching |
| Dielectric strength: | 2,000VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 1,000mΩ min | Panel cutout: | 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. |
| LED voltage: | 3V, 6V, 12V, 24V, 48V, 110V, 220V | Waterproof Grade: | IP40-IP67 |
| Contact Configuration: | Single Pole, Double Pole | OEM or ODM: | Available |
