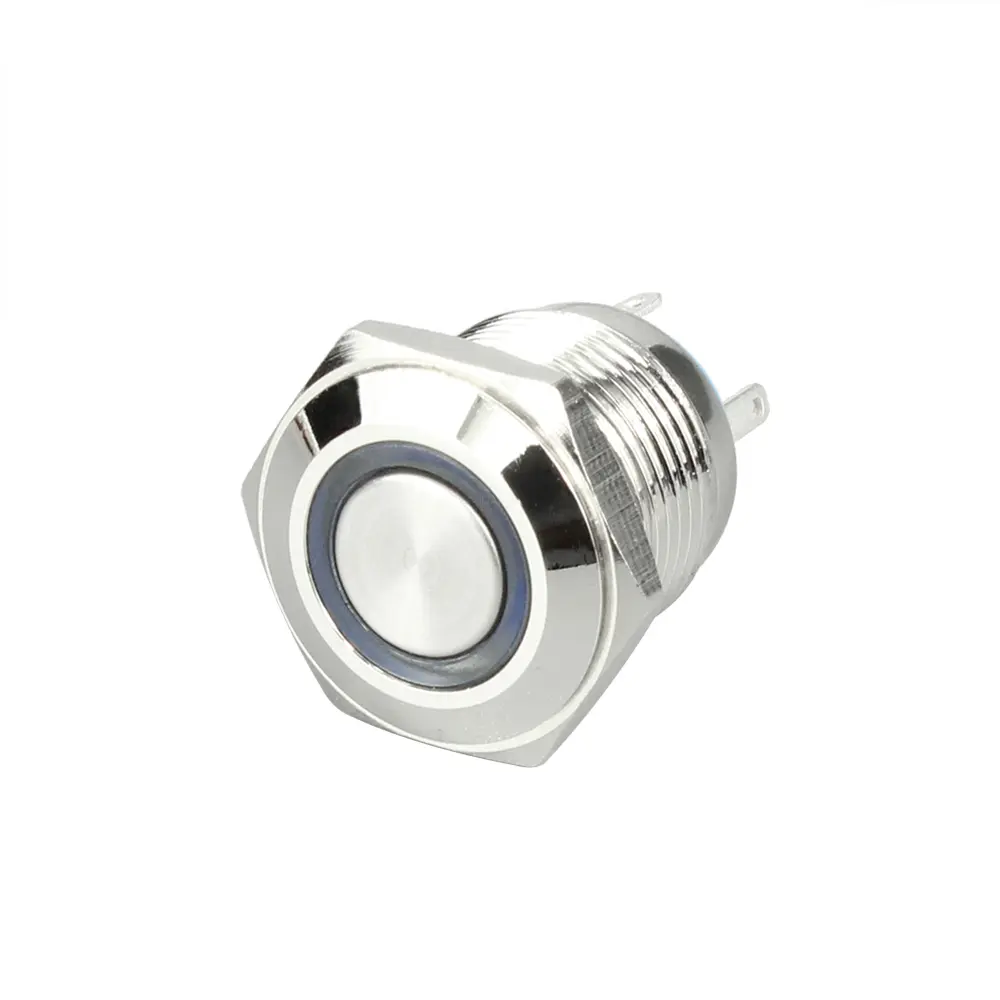

GQ16F-10E 16MM Ring LED Momentary Button


The 16mm ring LED latching momentary button, Function: IP65, 1NO, momentary; Rating: 3A 250VAC, 5A 12VDC.

This push button switch momentary required: 5/8” (16mm) cut-out diameter, switch head diameter: 19mm with round flat shape actuator.

GQ16F-10E 16MM Ring LED Latching Momentary Button Details

  • Easy Installation

Anti-vandal switches with screw clamp-type terminals make the switch installation simple and convenient.

  • Visual Feedback

The switch and LED are separated, the LED can be on all the time or only on when the switch is on, depending on how you wire it.

  • Strong Durability

Anti-vandal switches located on devices that are outdoors must be able to withstand extreme temperatures, dust, rain, snow, and ice.

  • Sturdy Construction

Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.

  • Wide Application

It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.

GQ-16F-10 Series Datasheet

GQ16F-10EM Datasheet

GQ-16F-10E Series Switches

GQ16F-10EM Momentary
GQ16F-10EL Latching

Still, have a question about the GQ-16F-10E series that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or submit form!
