LAS3-16F-W11EP 16MM LED Power Button Switch


The 16mm LED power button switch complies with RoHS, Function: IP65, 1NO1NC, SPDT momentary/latching; Rating: 5A 250VAC, 10A 12VDC.

The power button switch is a good choice as a replacement switch for household appliances, such as table lamp switches, PC switches and audio switches.

LAS3-16F-W11EP 16MM LED Power Button Switch Details

  • Easy Installation

Anti-vandal switches with screw or solder clamp-type terminals make the switch installation simple and convenient.

  • Visual Feedback

The illuminated metal switch works when the circuit is turned on and illuminates to provide visual feedback of circuit operation.

  • Strong Durability

Anti-vandal switches located on outdoor devices must withstand extreme temperatures, dust, rain, snow, and ice.

  • Sturdy Construction

Vandal-resistant switches are usually protected by robust materials, such as thick stainless steel and heavy-duty plastics.

  • Wide Application

It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.

LAS3-16F-W11EP Series Switches

LAS3-16F-W11EPL Latching, ON-(ON), SPDT, 1NO1NC, Ring LED
LAS3-16F-W11EPM Momentary, ON-ON, SPDT, 1NO1NC, Ring LED

LAS3-16F-W11EP Series Datasheet

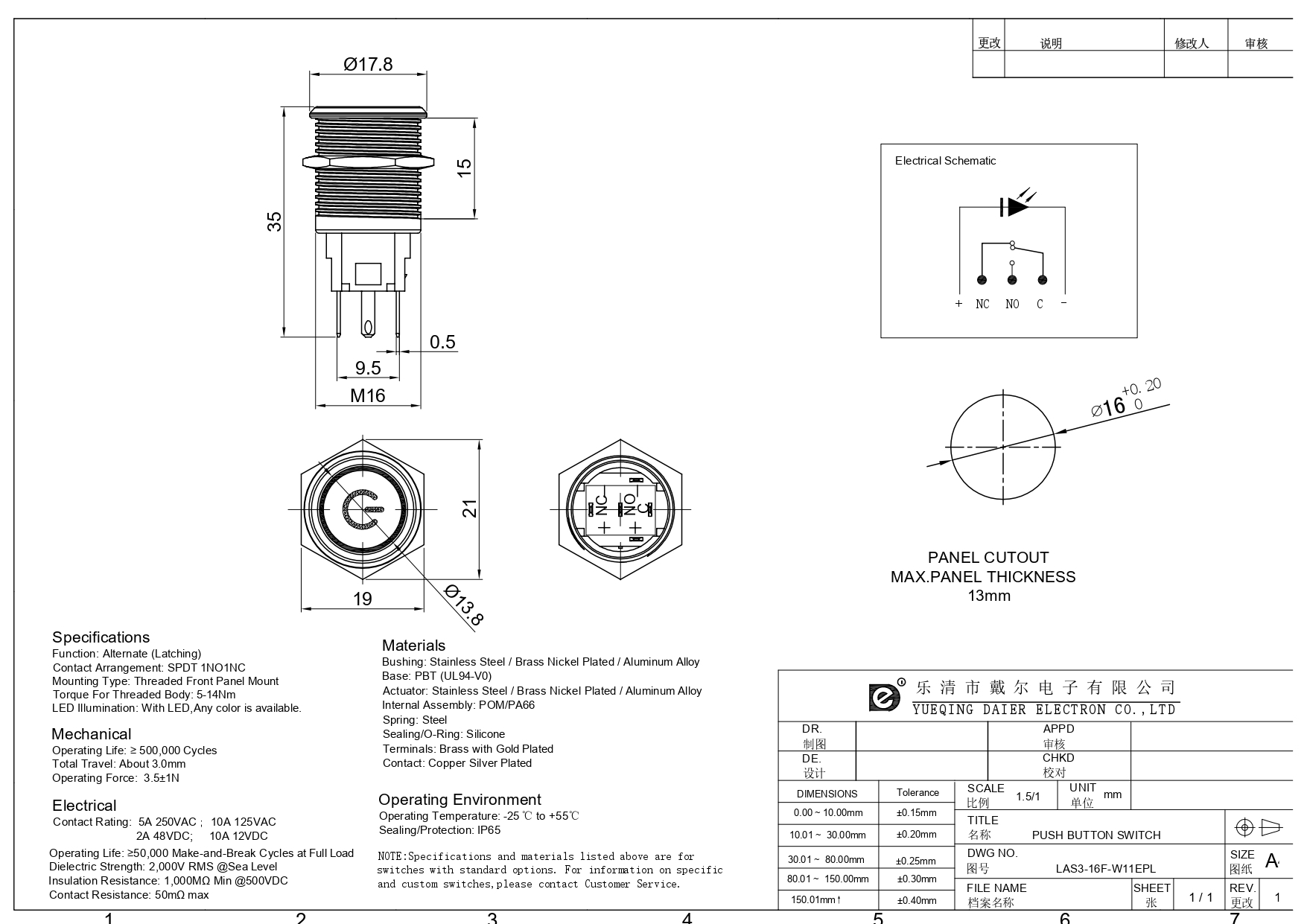

LAS3-16F-W11EPM Dimensioned DrawingStill, have a question about the LAS3-16F-W11EP series that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or submit form!
