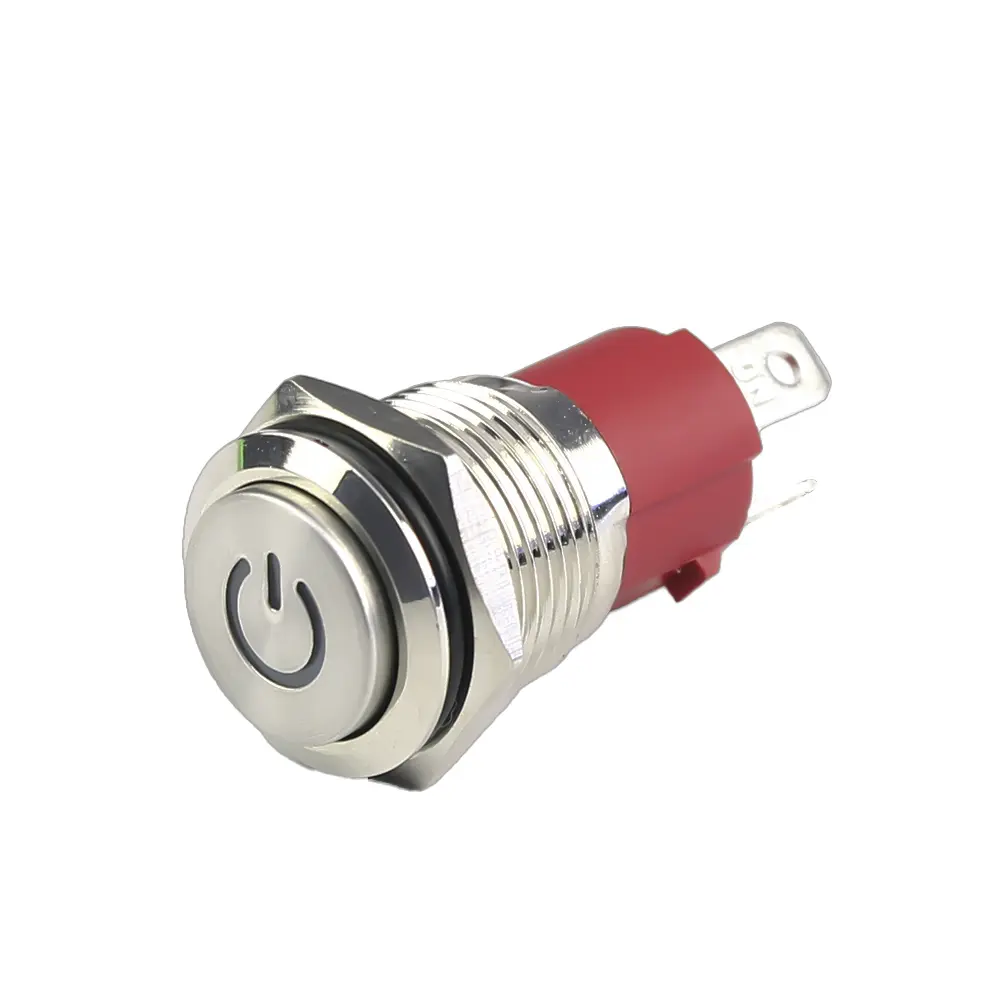

LAS3D-16H-10P 16MM Power Symbol Momentary Button Switch

Part#LAS3D-16H-10P

The 16mm power symbol momentary button switch is an IP67 1NO high head button with LED, Function: momentary/latching; Rating: 10A 250VAC.

It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.

LAS3D-16H-10P 16MM Power Symbol Momentary Button Switch Details

  • Easy Installation

The momentary button switch with solder clamp-type terminals makes the switch installation simple and convenient.

  • Visual Feedback

The illuminated metal switch works when the circuit is turned on and illuminates to provide visual feedback of circuit operation.

  • Strong Durability

Anti-vandal switches located on outdoor devices must withstand extreme temperatures, dust, rain, snow, and ice.

  • Sturdy Construction

Vandal-resistant switches are usually protected by robust materials, such as thick stainless steel and heavy-duty plastics.

  • Wide Application

It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.

LAS3D-16H-10P Series Switches

LAS3D-16H-10PM: ON-(ON) momentary, high button with Power Symbol LED
LAS3D-16H-10PL: ON-ON latching, high button with Power Symbol LED

LAS3D-16H-10P Series Datasheet

Contact Voltage 1.5V-250VAC/DC
Contact Current 3mA~15A
LED Voltage 3V-250VAC/DC
LED Current 3mA~20mA
LED Illumination Red, yellow, blue, green, and white (available custom)
Function Latching/Momentary
Operating Temperature -30℃~+80℃
Torque For Threaded Body 5~14N.m
Operating Force About 2.5~3N
Contact Arrangement 1NO
Terminal Type Solder Terminal
Bushing Material H59 nickel plating/SUS304/aluminum alloy anodizing
Mechanism Material Base – PA6 / Pin – silver plated brass / Base attached – PC
Contact Material Silver alloy
Mounting Size 16mm
Protection Grade IP67, IK10
LED Life 40,000 Hours
Electrical Life 0.2A/250VAC: 200,000 times, 15A/250VAC: 50,000 times
Mechanical Life Latching: 250,000/times, Momentary 500,000/times
Contact Resistance ≤50mΩ
Insulation Resistance ≥1000mΩ
Dielectric Strength 1900VAC min
Certification CE, RoHS
