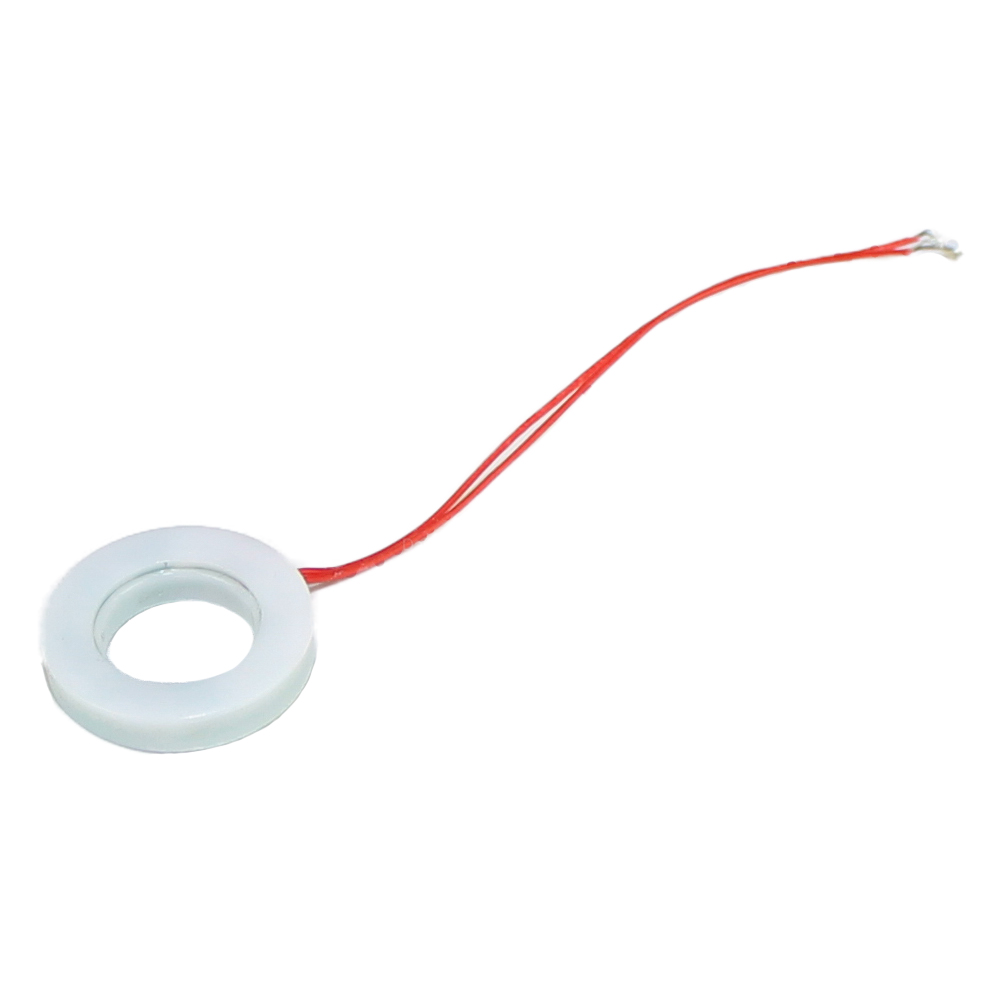

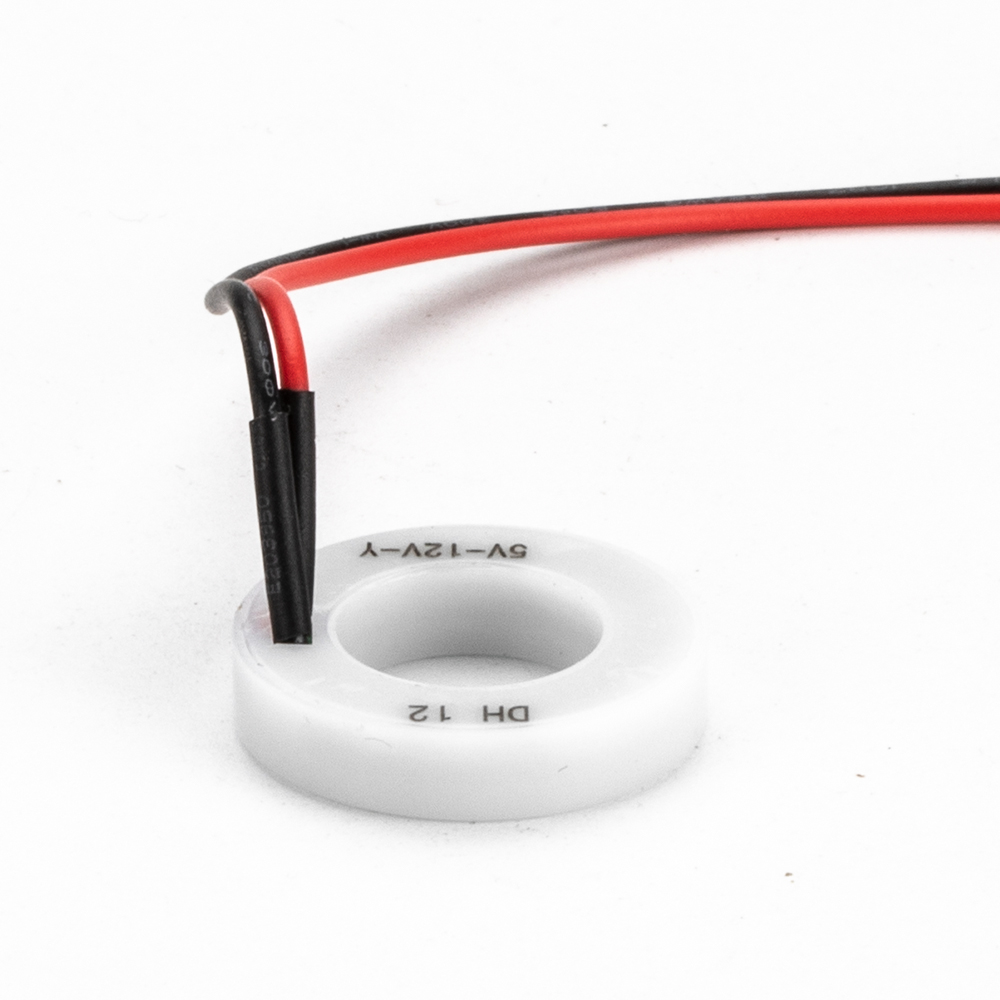

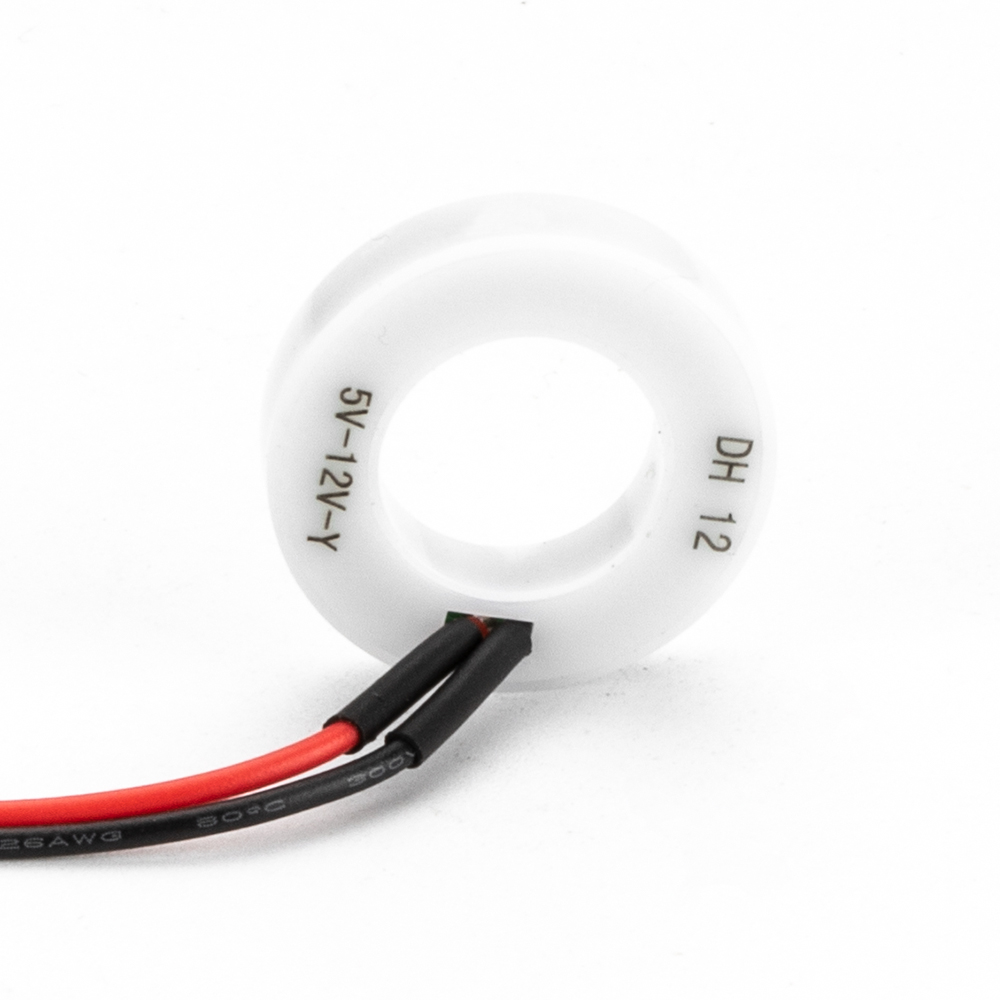

LH-12 12MM LED Halo Ring For Foot Switch
Part#LH-12
LLH-12 12mm LED halo ring for foot switch have many kinds series of indicator lights offer many different colors, rating and waterproof and so on.
The LED halo ring internal current limiting resistor. No additional parts are required for the 9V power supply.
LH-12 12MM LED Halo Ring For Foot Switch Details

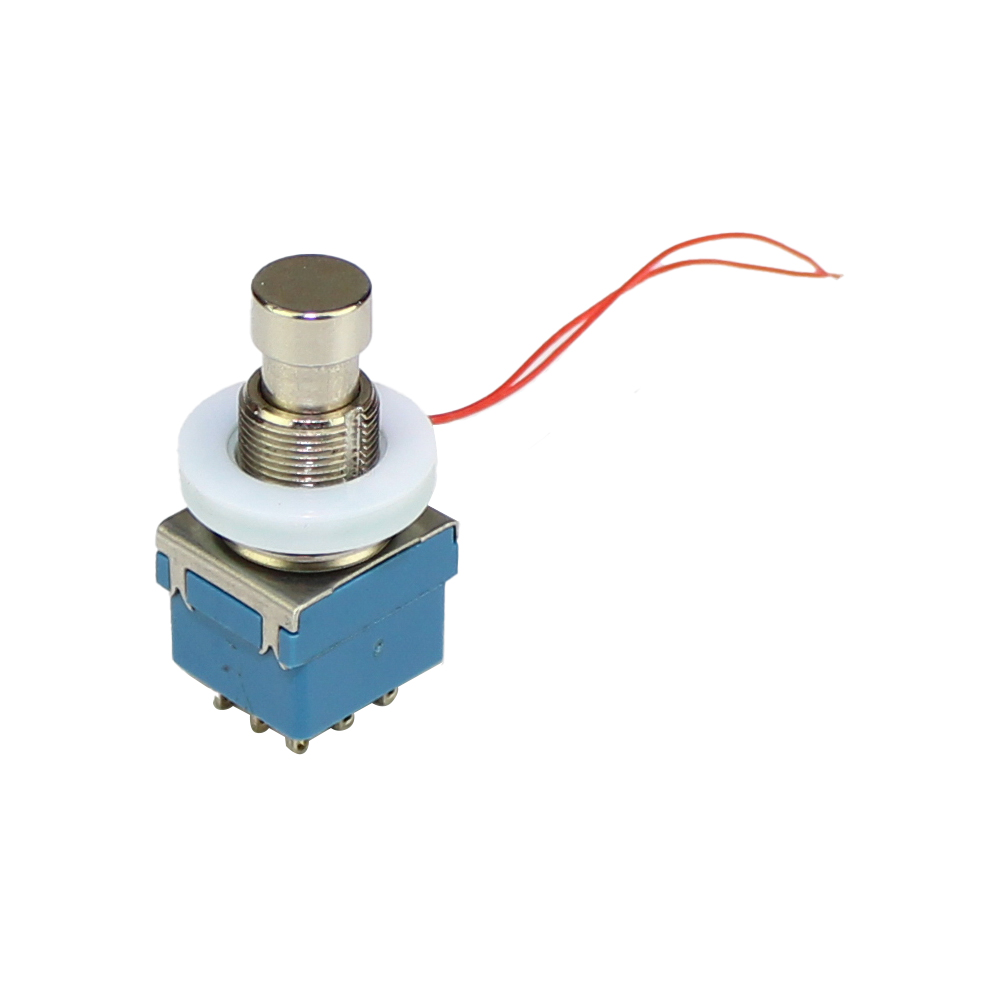

- 12mm inner diameter fits standard foot switches.
- 21mm outer diameter, 4mm height.
- Internal current limiting resistor. No additional parts are required for the 9V power supply.
- 15mm panel hole required.
- Same as a bi-color LED with 8 leads.
LH-12 LED Halo Ring Datasheet
| Diameter: | 12/16/19/22mm | Light Color: | red/green/yellow/blue/white |
| Light Voltage: | 3/6/12/24/36/48V | Rated Current: | 15 mA |
| Material: | Plastic | Waterproof: | IP65 |
| Operating Temperature: | -25℃~+55℃ | Light Life: | 40,000 hours |
LH-12 Related Products
| LH-12 | 12mm diameter |
| LH-16 | 16mm diameter |
| LH-19 | 19mm diameter |
| LH-22 | 22mm diameter |
Still, have a question about the LH-12, LH-16, LH-19, and LH-22 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
