KNS-1 SPST Toggle Switch with Wire

KNS-1 SPST Toggle Switch with Wire

KNS-1 SPST Toggle Switch with Wire:

Toggles switches range in Daier from 1 to 4 poles, 1 to 20 amps. We offer a variety of nylon and metal toggle styles, as well as illuminated toggles. We have many kinds of terminal, the most popular terminal is PCB terminal, then is screw terminal.

DC toggle switch are widely used in industrial equipment. Some of switches made by bakelite. Because of the advantage of switches are large current and long life, they are popular in market.

Several families of heavy-duty toggle switches are available, as well as a high-temperature snap-in toggle switch series.

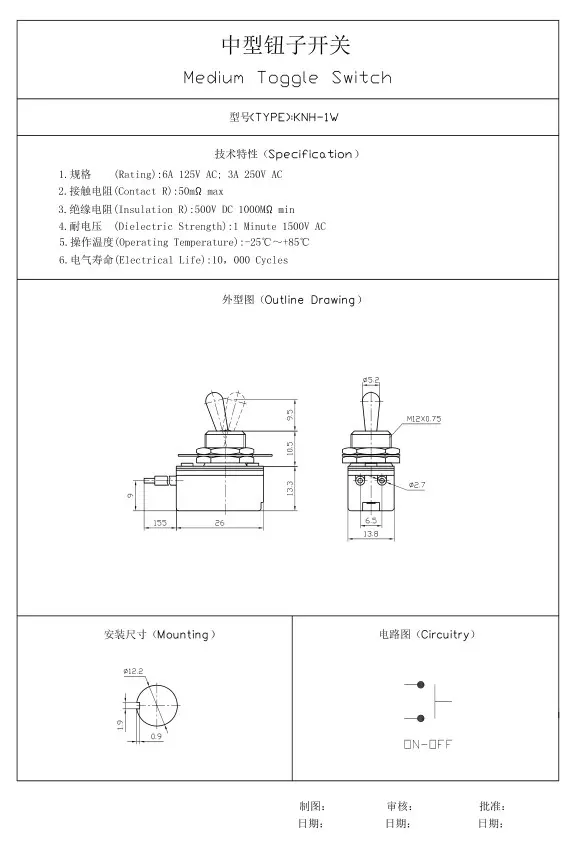

KNS-1 SPST Toggle Switch with Wire datasheet below:



Housing: Bakelite Lever: Brass with Nickel plated
Terminal: Brass with sliver plated Contact & Operation: ON-OFF/(ON)-OFF
Rating: 6A 125VAC/3A 250VAC/10A 12VDC Contact Resistance: 50mΩ max
Electrical Life: ≥ 10,000 Cycles Mechanical Life: ≥ 100,000 Cycles
Dielectric strength: 1500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 1000mΩ min (500VDC) OEM or ODM: Available
