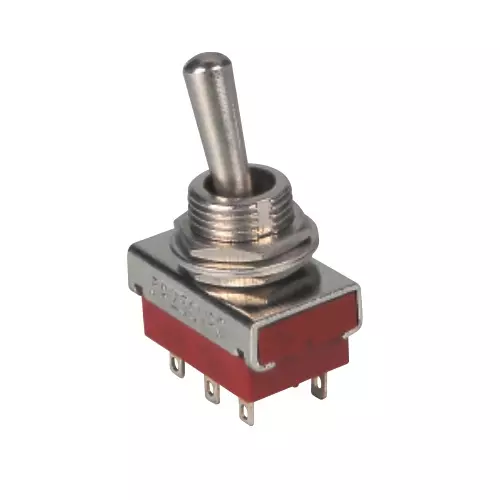

KN-32 Medium Toggle Switch

KN-32 Medium Toggle Switch with 6 pins

KN-32 Medium Toggle Switch:

Toggles switches range in Daier from 1 to 4 poles, 1 to 20 amps. We offer a variety of nylon and metal toggle styles, as well as illuminated toggles. We have many kinds of terminal, the most popular terminal is PCB terminal, then is screw terminal.

6 prong toggle switch are widely used in industrial equipment. Some of switches made by bakelite. Because of the advantage of switches are large current and long life, they are popular in market.

Several families of heavy-duty toggle switches are available, as well as a high-temperature snap-in toggle switch series.

A toggle switch is actuated by moving a lever back and forth to open or close an electrical circuit. Toggle switches offer a variety of switching functions – SPDT, SPST, DPDT, DPST, and multiple actuator and bushing options. Our toggle switches also come in different sizes, from Sub-miniature, miniature to Medium.There are two basic types: maintained contact and momentary toggle switches. A maintained switch changes its position when actuated and will remain in that position until actuated again, such as an ON/OFF function. A momentary toggle switch is actuated only when someone is operating the switch.  Because of its ease of operation, the toggle switch is used in various applications, including military/aerospace, commercial, plant and industrial engineering, instrumentation, and medical equipment.

KN-32 Medium Toggle Switch datasheet below:



Housing: Bakelite Lever: Brass with Nickel plated
Terminal: Brass with sliver plated Contact & Operation: ON-OFF/(ON)-OFF
Rating: 10A 125VAC/5A 250VAC Contact Resistance: 50mΩ max
Electrical Life: ≥ 10,000 Cycles Mechanical Life: ≥ 100,000 Cycles
Dielectric strength: 1500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 1000mΩ min (500VDC) OEM or ODM: Available
