KCD1-5-101 Round Rocker Switch

KCD1-5-101 Round Rocker Switch

KCD1-5-101 Round Rocker Switch

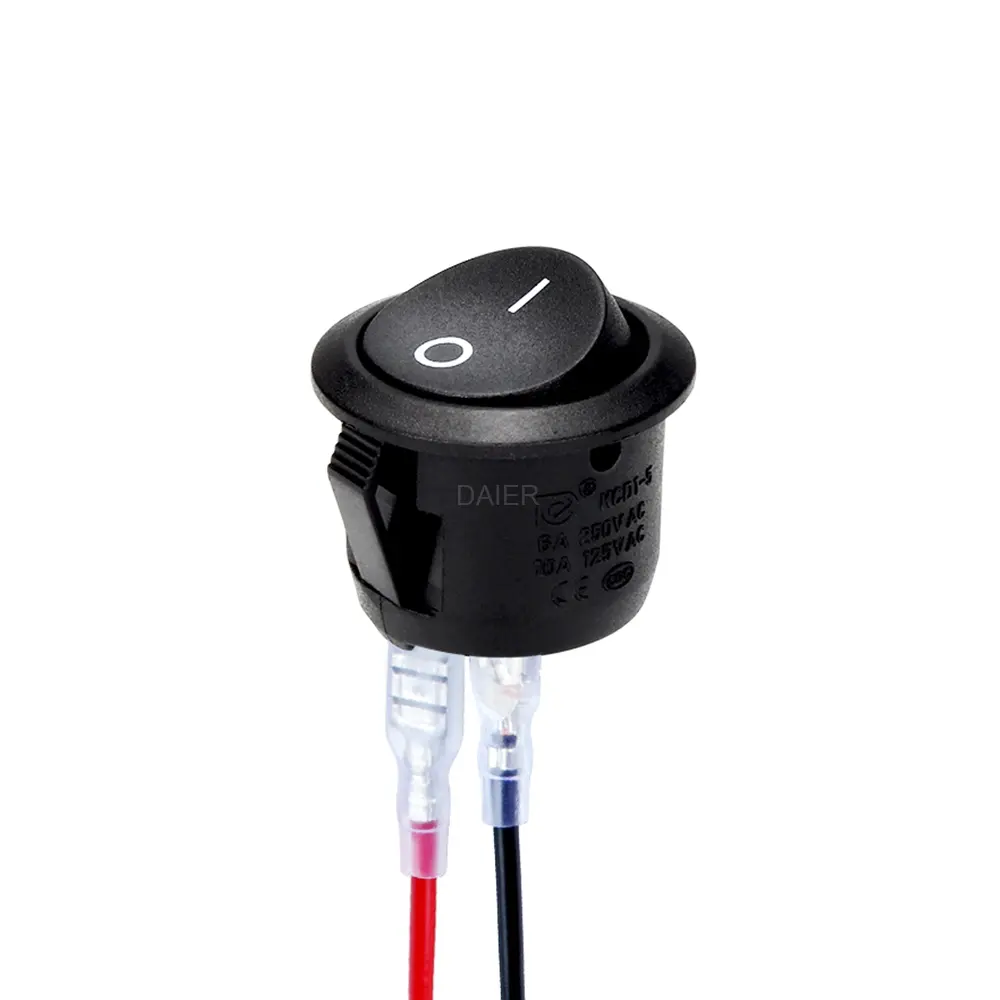

Daier KCD1-5-101 on off miniature round rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
Satisfactory high-quality round switch, round package and spade-shaped connector are easy to install without soldering.
This is a great small AC rated switch-no frills. Easy to put in the box because you only need to drill a round hole

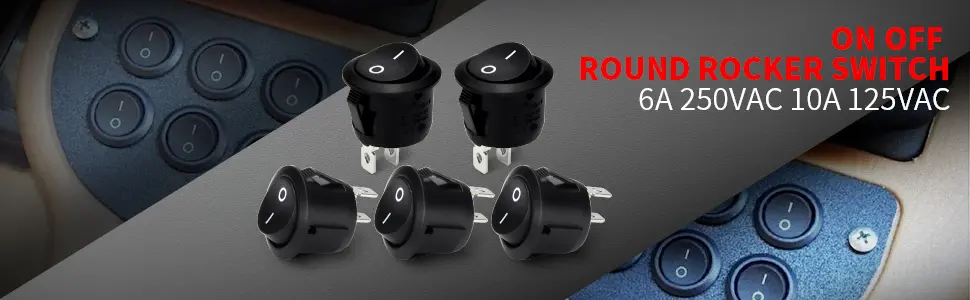

This small circular on/off toggle switch has a rated current of up to 10A at 125VAC and can be panel mounted in a hole with a diameter of 20 mm. It also looks beautiful in your project.
If you want to know more about the Round Rocker Switch, please let me know, I will check and reply to you.

KCD1-5-101 Round Rocker Switch related product,pls check the detailed information as below

KCD1-5-101 It is 2P,ON-OFF rocker switch without lamp
KCD1-5-111 It is 2P,OFF-momentary ON rocker switch without lamp

KCD1-5-101 Round Rocker Switch datasheet below



Housing: Nylon 66 Button: Nylon 66
Terminal Brass with sliver plated Button color: Black,white,grey,red and transparent
Rating: 10A 125VAC/6A 250VAC Housing color: Standard black ,white and grey
Contact Configuration: SPST Switch Operation: ON-OFF
Contact Resistance: 35mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, SGS OEM or ODM: Available
KCD1-5-101 Round Rocker Switch datasheet
