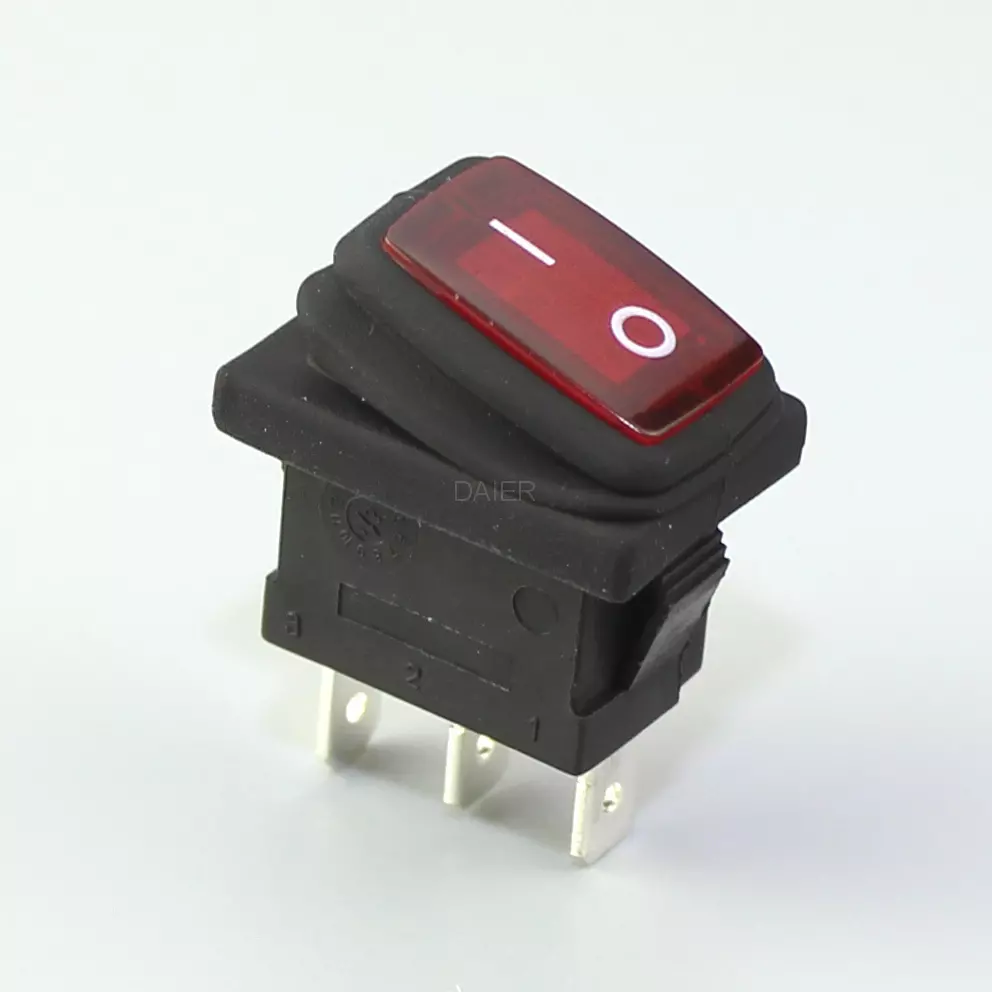

KCD1-2-101NW Waterproof Lighted Rocker Switch
Daier KCD1-2-101NW miniature waterproof lighted rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
This Waterproof Lighted Rocker Switch lets you quickly control the spotlights on your off-road vehicle, truck, UTV, boat, tractor, or machine. The illuminated switch has 2 independently controlled red or white LED indicators. Text is illuminated when the vehicle is on, and the legend is illuminated when the switch is pressed ON. This 20-amp 12V on/off switch has (5) 1/4″ male contact terminals to be used with 1/4″ female push-on connectors. The sealed, watertight rocker switch easily installs in industry standard panel cutouts with the included rubber gasket.
If you need other quantity , please contact us and I will check and reply to you.

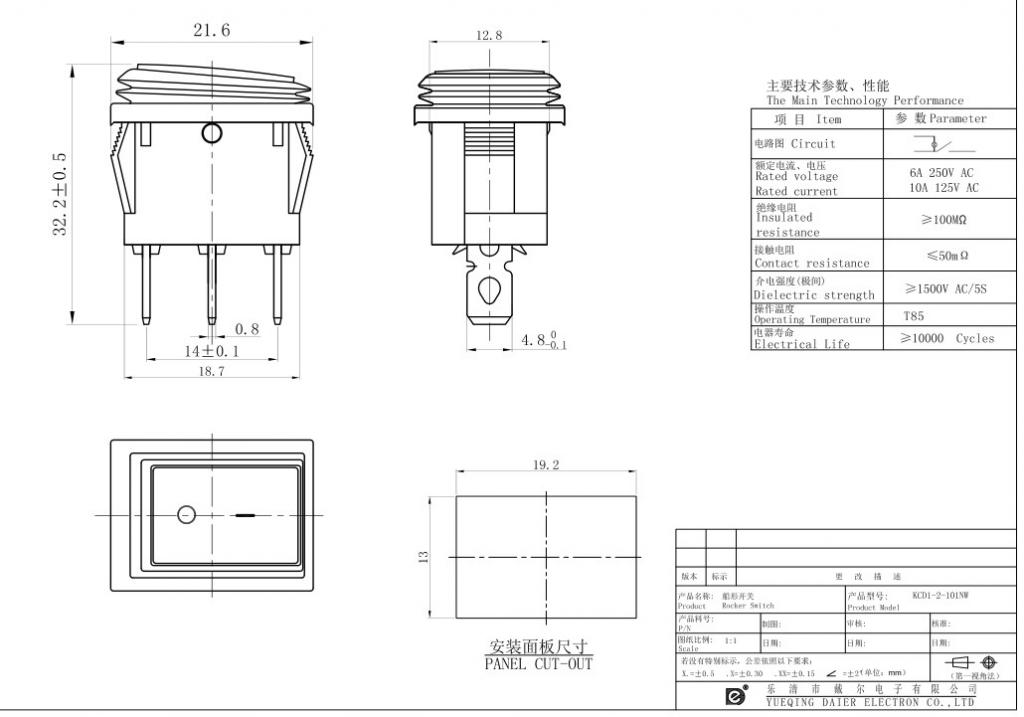

KCD1-2-101NW Waterproof Lighted Rocker Switch datasheet below
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal: | Brass with sliver plated | Button color: | Red ,green |
| Rating: | 10A 125VAC/6A 250VAC | Housing color: | Standard black,white color |
| Lamp: | 220VAC/12V/24V | Switch Operation: | SPST,ON-OFF |
| Waterproof Grade: | IP65 | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, SGS | OEM or ODM: | Available |
