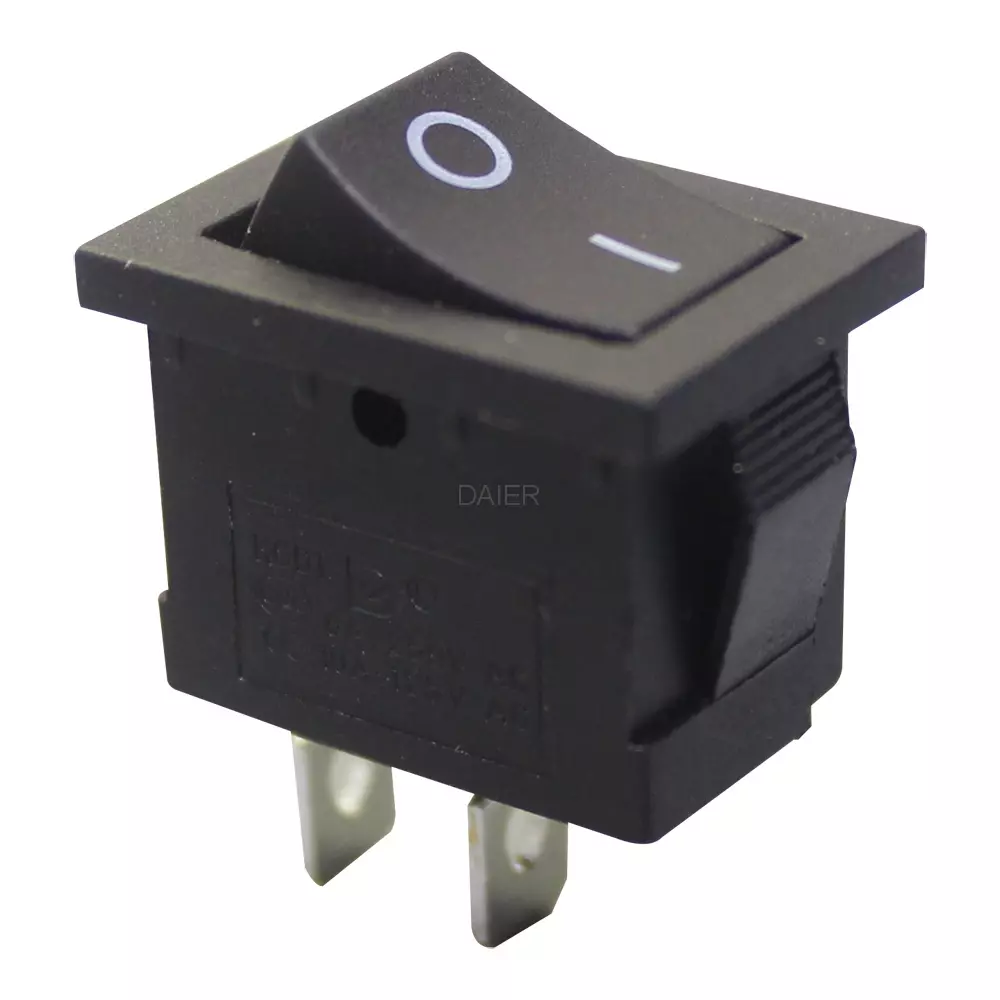

KCD1-2-101 SPST Rocker Switch

KCD1-2-101 SPST Rocker Switch

KCD1-2-101 SPST Rocker Switch

Daier KCD1-2-101 open-close miniature rocker switch provides high switching current in a compact design.
It is a snap-in type rocker switch with high mechanical life in a sturdy nylon 66 housing.
They are of high quality and can achieve long life under heavy loads and industry standard installation dimensions.
This kind of rocker switch can be used in various applications, such as water dispensers and extension sockets.
At Daier, we are proud to provide a comprehensive series of switches for various applications at an affordable price. With competitive prices, modern design and durability, our switches are your ideal choice.
For more information about the full range of switches and other miniature rocker switches, please contact us.

The KCD1-2-101 SPST Rocker Switch have a related product named KCD1-2-111,it is 2P OFF- momentary ON.

KCD1-2-101 SPST Rocker Switch datasheet below



Housing: Nylon 66 Button: Nylon 66
Terminal Brass with sliver plated Button color: Black,red or other transparent color
Rating: 10A 125VAC/6A 250VAC Housing color: Standard black
Contact Configuration: SPST Switch Operation: ON-OFF
Contact Resistance: 35mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, SGS OEM or ODM: Available
KCD1-2-101 SPST Rocker Switch datasheet
