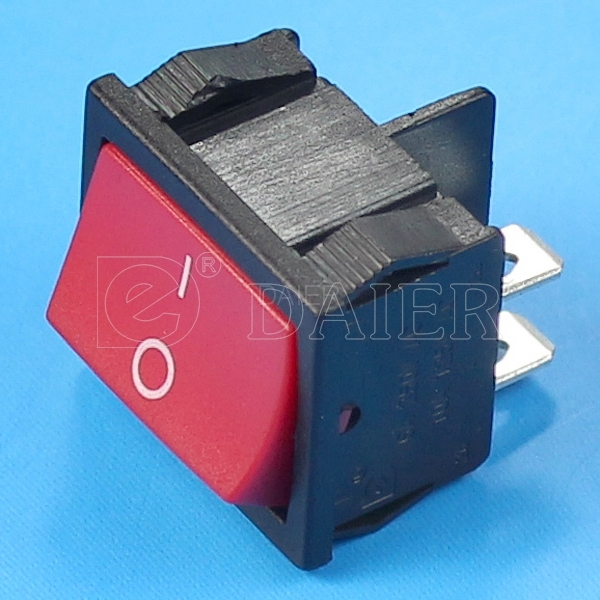

KCD1-6-201 Power Pole Rocker Switch
Daier KCD1-6-201 on off miniature dpst rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
If you want to know more information , please contact us, I will check and reply to you.

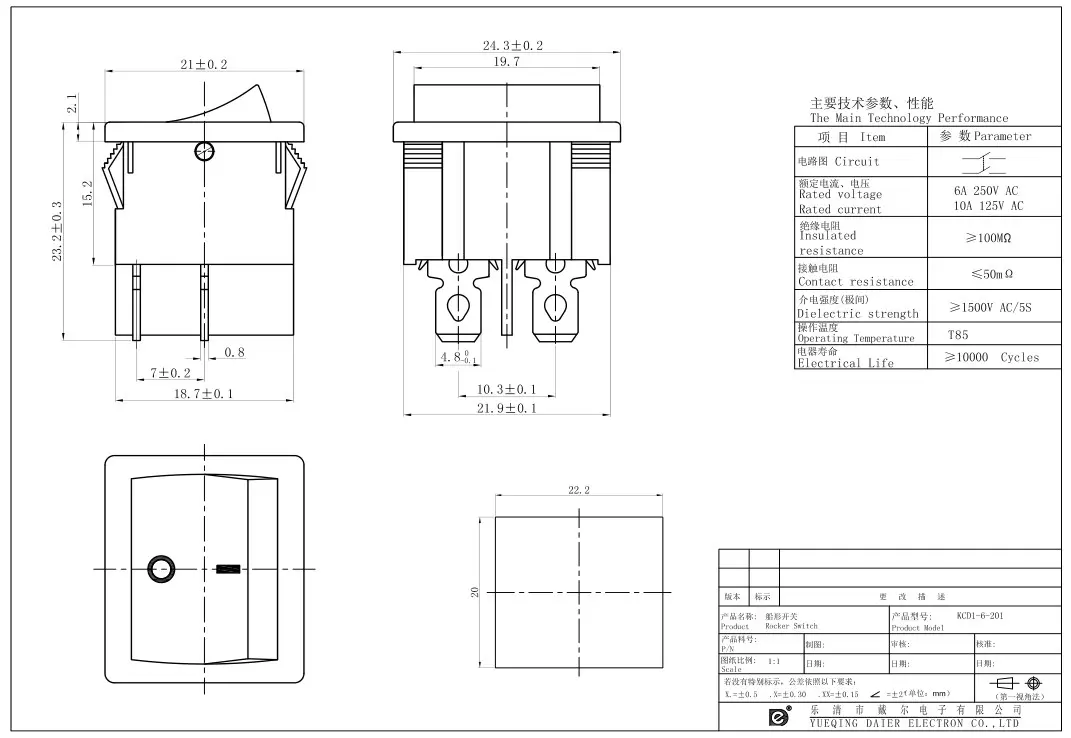

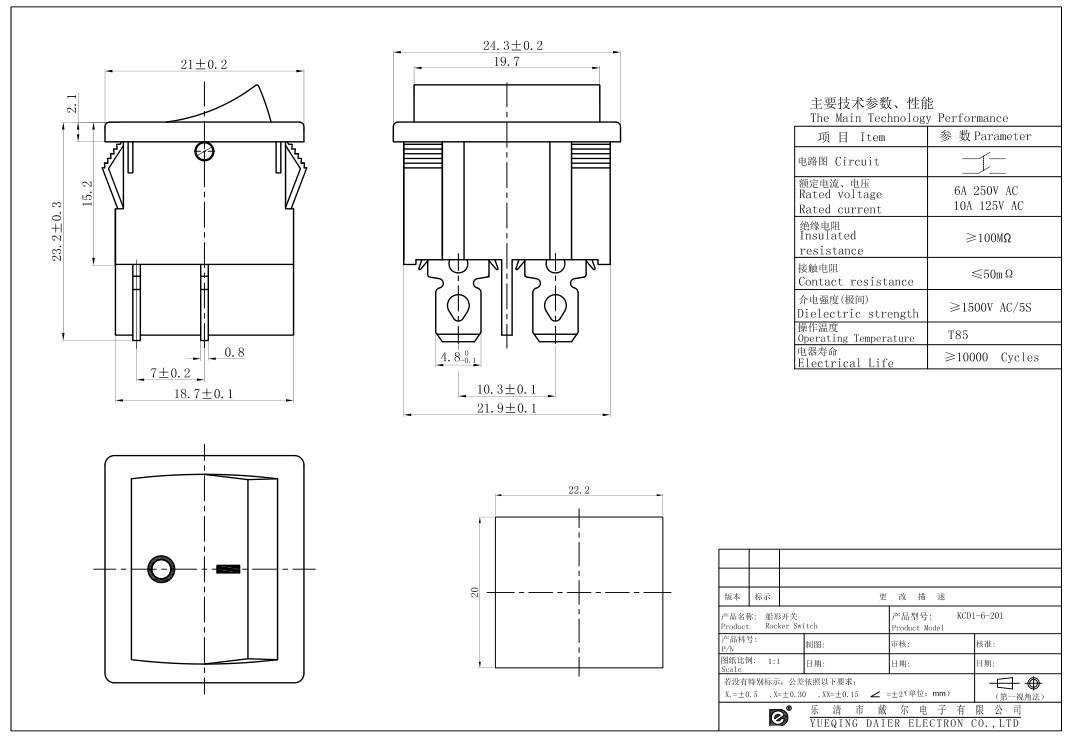

KCD1-6-201 Power Pole Rocker Switch datasheet below
|Brass with sliver plated

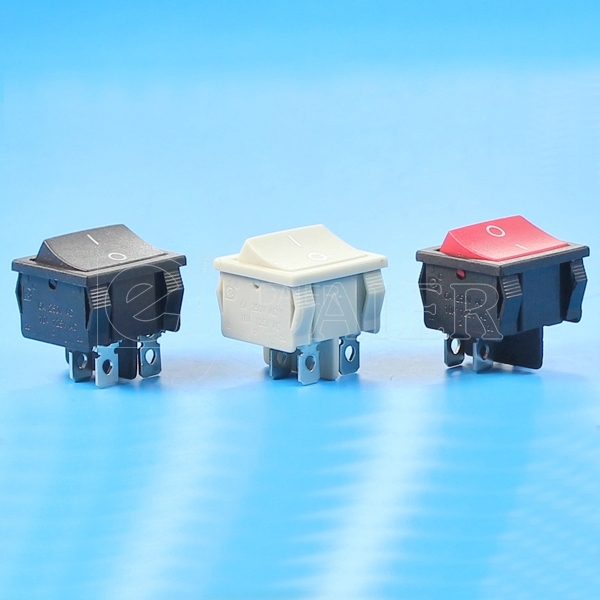

|Black ,red and white color
|10A 125VAC/6A 250VAC
|Standard black,white is avaliable
|100mΩ min (500VDC)
|≥ 10,000 Cycles
|1500VAC 1 minute
|≥ 100,000 Cycles
|CE, CQC, SGS
|OEM or ODM:
