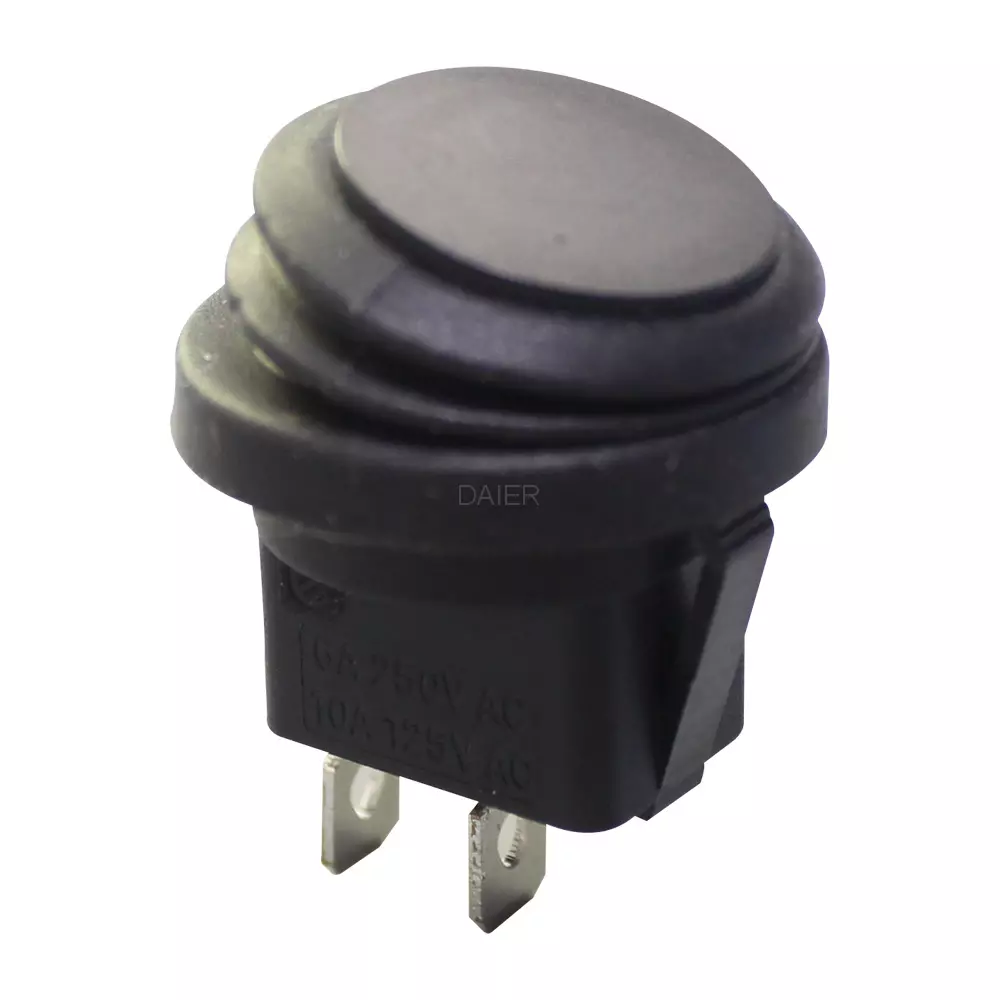

KCD1-8-101W Waterproof Boat Rocker Switch
KCD1-8-101W Waterproof Boat Rocker Switch
Category :
Miniature Rocker Switch
KCD1-8-101W Waterproof Boat Rocker Switch
Daier KCD1-8-101W on off miniature waterproof round rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
Waterproof Boat Rocker Switch surface can be sealed to prevent moisture, and has an IP67 degree of protection, suitable for ships and external applications exposed to components
if you want to know more information, please contact us, I will check and reply to you.
KCD1-8-101W Waterproof Boat Rocker Switch datasheet below
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal: | Brass with sliver plated | Button color: | Black color and transparent red |
| Rating: | 10A 125VAC/6A 250VAC | Housing color: | Standard black |
| Waterproof Grade: | IP65 | Switch Operation: | SPST,ON-OFF |
| Contact Resistance: | 35mΩ max | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, SGS | OEM or ODM: | Available |
