BR-200 Generator Interlock Kit – Cutler Hammer BR and CH Series 150/200A, 1-1/4″ – 1-1/2″ Spacing – GL-6
Part # GL-6
This BR-200 Generator Interlock Kit is specifically designed for Cutler Hammer BR and CH Series 150/200A electrical panels featuring a 1-1/4″ – 1-1/2″ Spacing spacing between the main and generator breaker.
Engineered for safety and reliability, this interlock kit provides a critical safety function by preventing the simultaneous energizing of main utility power and backup generator power, ensuring code-compliant operation during outages.
BR-200 Generator Interlock Kit – Cutler Hammer BR and CH Series 150/200A, 1-1/4″ – 1-1/2″ Spacing Features
- Cutler Hammer BR and CH Series Panel Compatibility

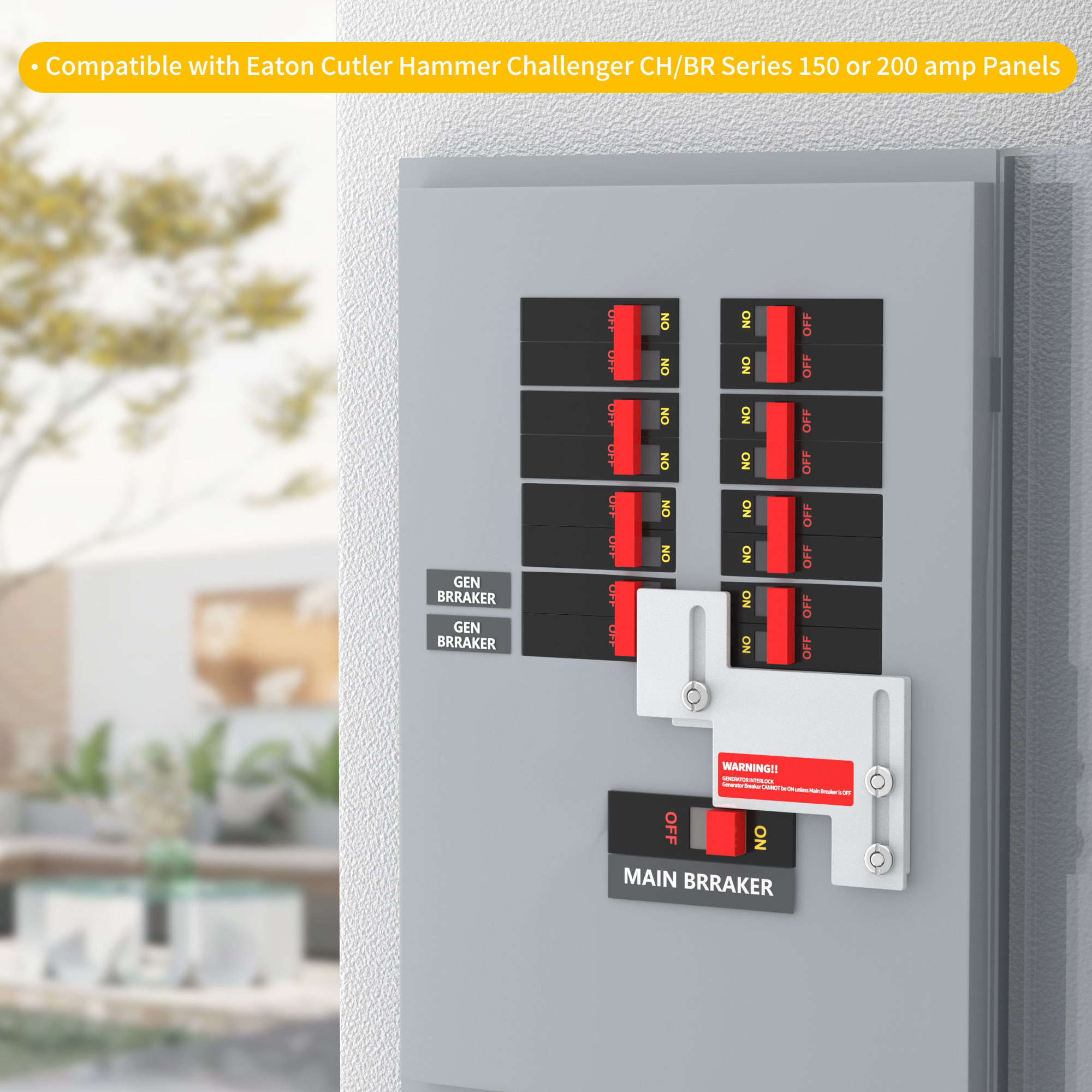

The generator interlock kit is designed for seamless compatibility with Eaton/Cutler Hammer/Challenger 150 and 200 Amp breaker panels with single centered horizontal main breaker. This broad compatibility offers versatile use across different electrical systems of these widely available panels.
- Safe Operation with Precise Interlock

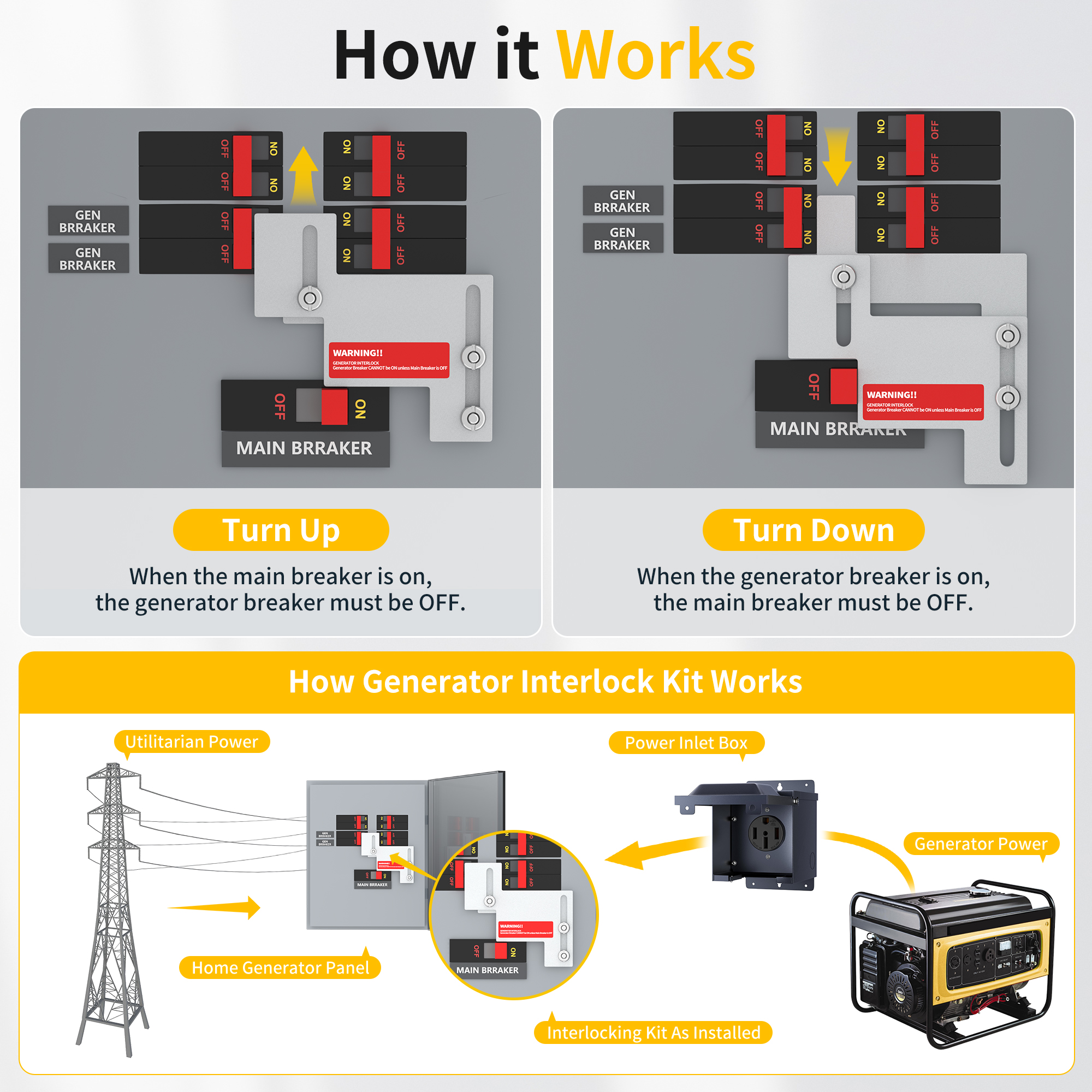

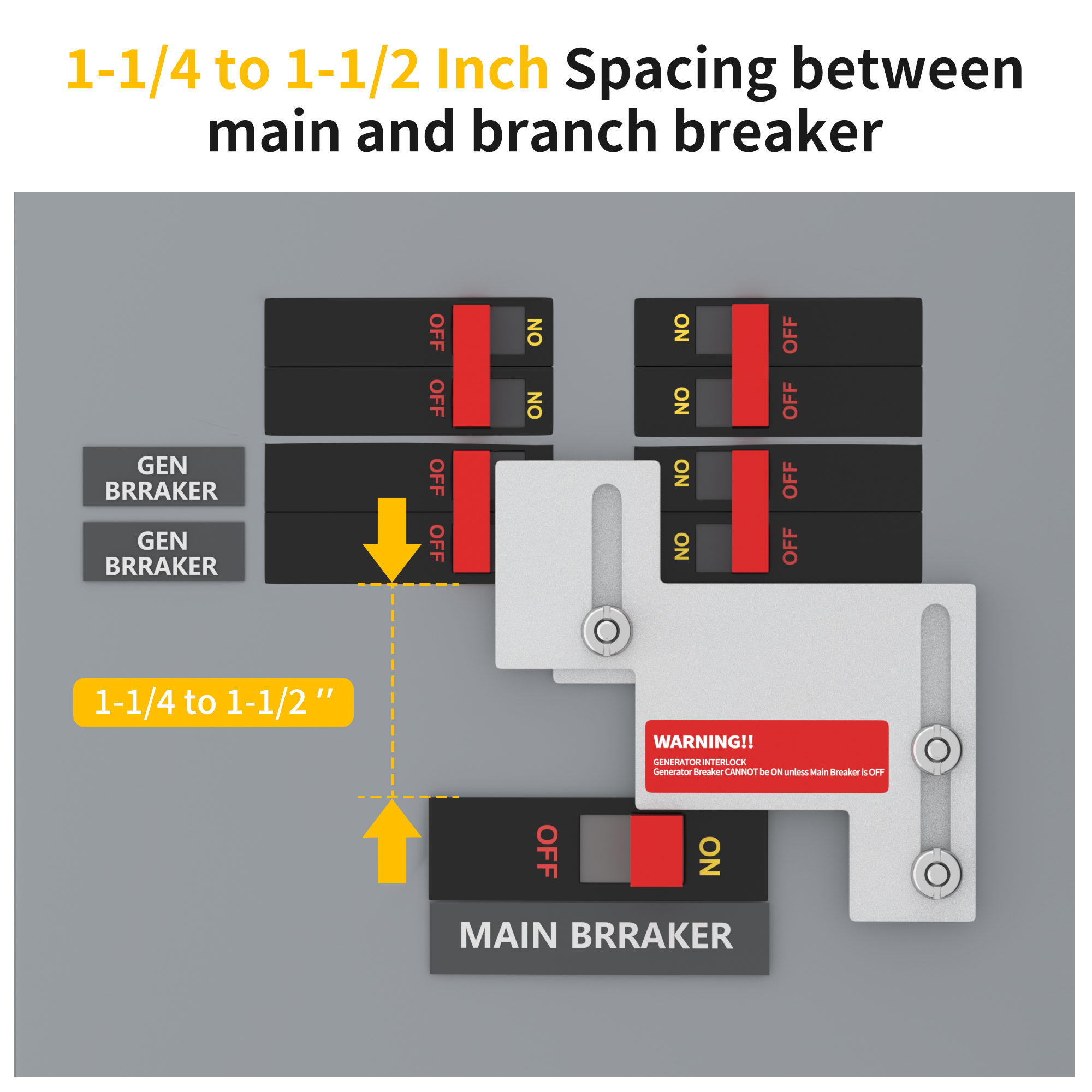

This interlock kit features a 1-1/4 inch (1.25″) to 1-1/2 inch (1.5″) panel cutout spacing between main and branch breakers. This precise spacing design ensures that the main breaker and generator breaker cannot be ON simultaneously, preventing dangerous backfeeding and ensuring a safe electrical system, a critical safety feature.
- Easy Install with Titanium Drill Bit

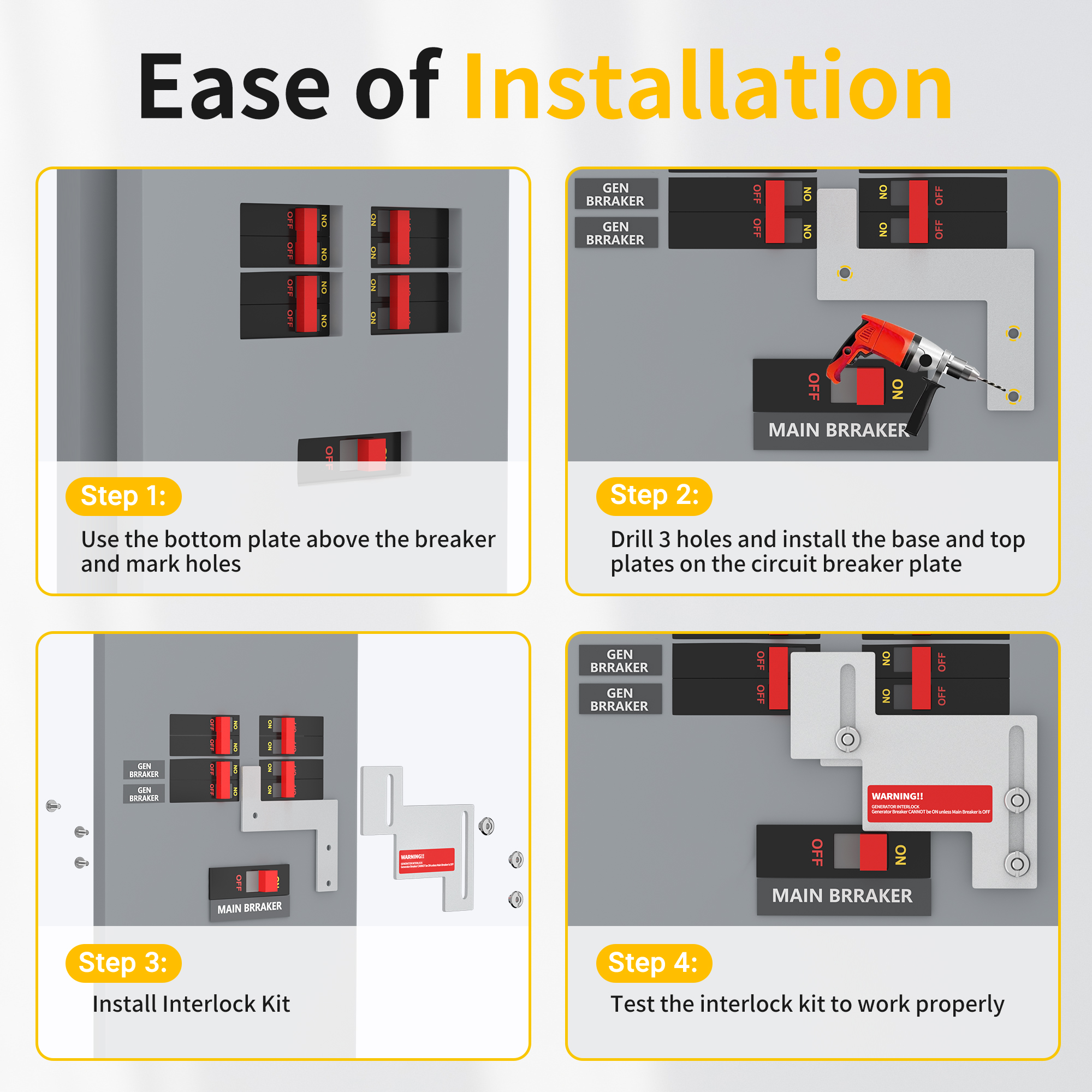

The generator interlock kit comes with a 3/16″ drill bit which is made of steel and plated with PVD titanium on the surface. The titanium coating enhances the drill bit’s durability and reduces friction, making drilling into the circuit breaker panel easier and more accurate for quick installation.
- Long-Lasting Aluminum Alloy Build
The key components of this interlock kit are constructed from a strong and corrosion-resistant aluminum alloy. The aluminum alloy build ensures durability and consistent performance of the interlock over time, protecting against rust and wear for long-lasting use.
- Complete Kit for Generator Hook-Up

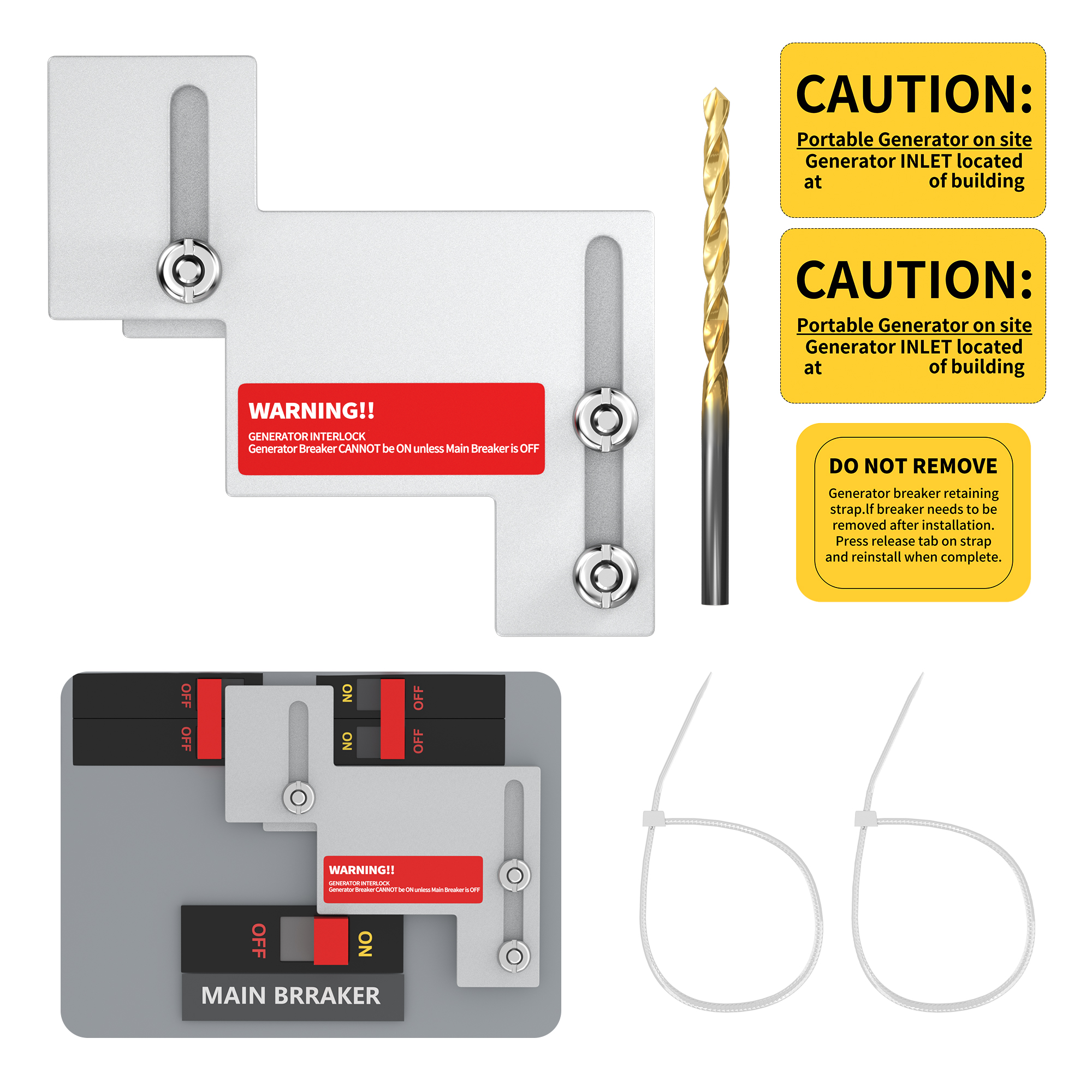

The generator interlock kit includes all necessary components for safe and easy generator connection: Two interlock plates, three generator reminder labels, the drill bit, mounting screws and nuts, zip ties for wire management, and detailed installation instructions for a safe, code-compliant generator hook-up.
BR-200 Generator Interlock Kit Datasheet
| Part NO | GL-6 |
| Material | Aluminum Alloy |
| Main Breaker | 150 or 200 amp single centered horizontal throw (Right/ON to Left/OFF) |
| Generator Breaker | Top left side 2 positions |
| Compatibility | Eaton/Cutler Hammer/Challenger BR&CH 150A and 200A Panels |
| Spacing | 1-1/4 inch – 1-1/2 inch (1.25″ – 1.5″) |
