BR-100 Generator Interlock Kit – Eaton Cutler Hammer BR Series 100A/125A – GL-17
P/N: GL-17
This BR-100 generator interlock kit is specifically designed for Eaton Cutler Hammer BR Series 100A/125A electrical panels between the main and generator breaker.
This interlock kit prevents the simultaneous connection of utility and generator power, providing a safe and code-compliant solution for backup power during outages.
BR-100 Generator Interlock Kit – Eaton Cutler Hammer BR Series 100A/125A Features
- Eaton CH Series Compatibility

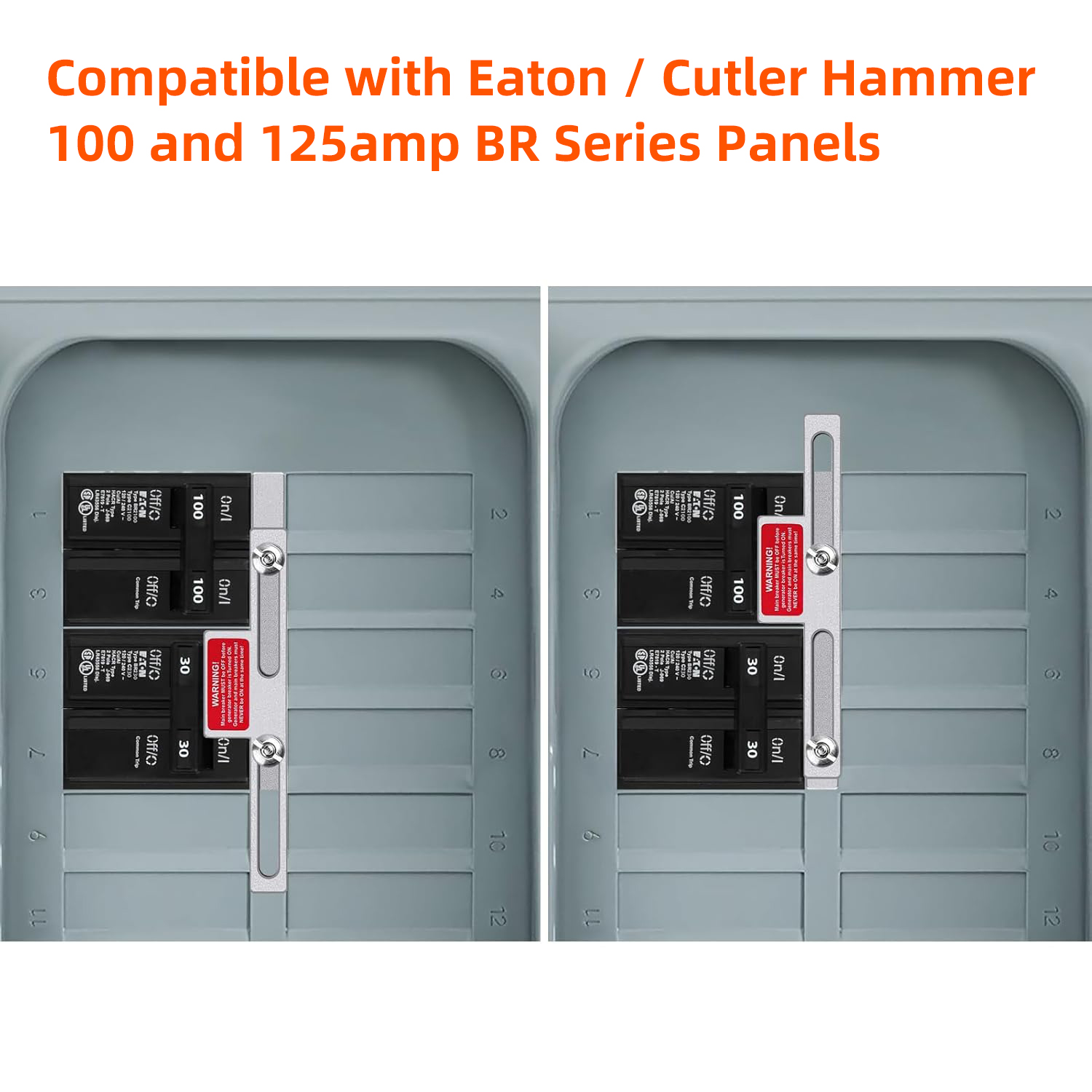

The generator interlock kit is designed for seamless compatibility with Eaton Cutler Hammer BR Series 100 & 125 amp panels. This broad compatibility offers versatile use across different electrical systems of these widely available panels. This kit is designed for panels with Tan Branch breakers.
- Safe Operation with Precise Interlock

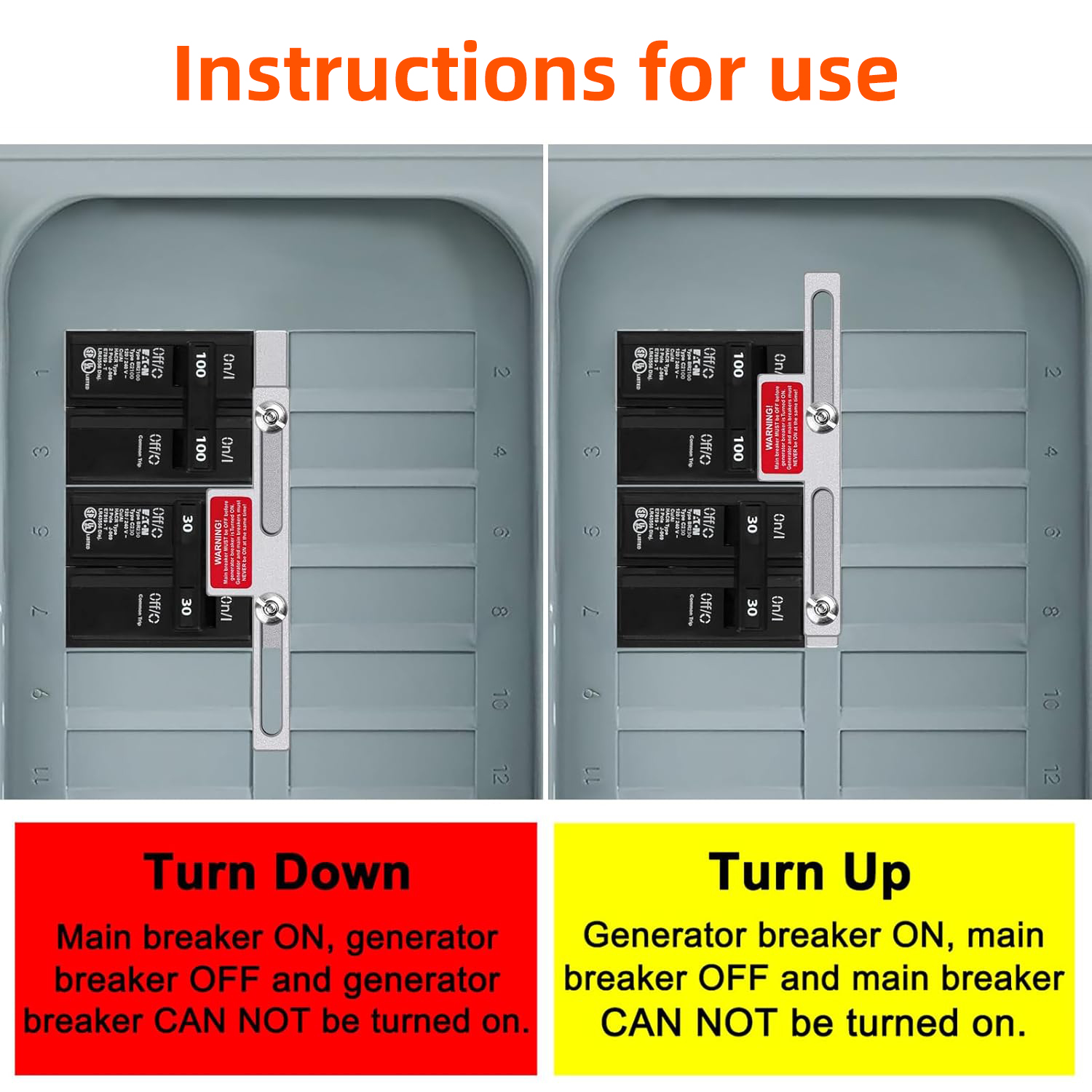

This interlock kit features a spacing between the main breaker and generator breaker slots. This precise spacing design ensures that the main breaker and generator breaker cannot be ON simultaneously, preventing dangerous backfeeding and ensuring a safe electrical system, a critical safety feature.
- Easy Install with Titanium Drill Bit

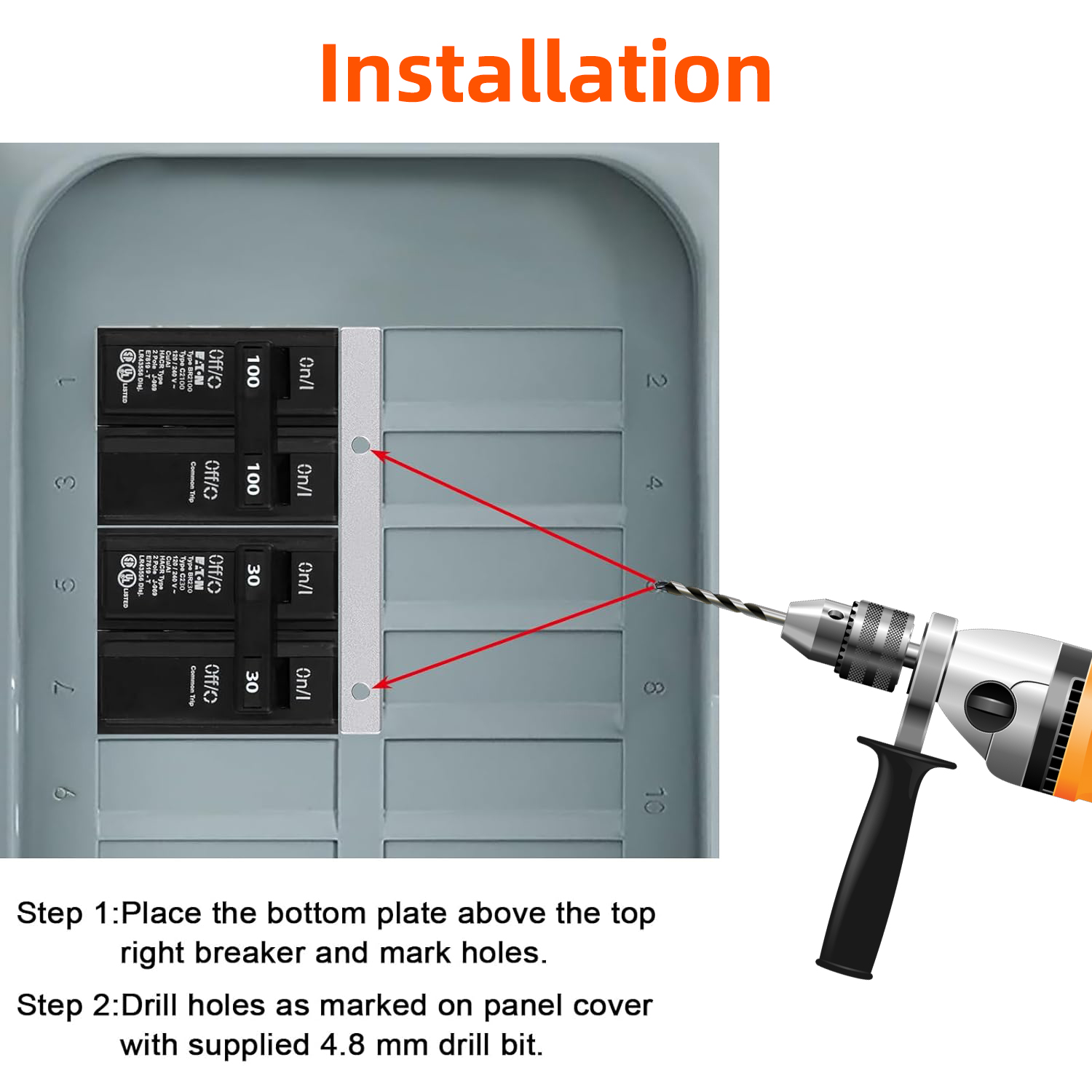

The generator interlock kit comes with a 3/16″ drill bit which is made of steel and plated with PVD titanium on the surface. The titanium coating enhances the drill bit’s durability and reduces friction, making drilling into the circuit breaker panel easier and more accurate for quick installation.
- Long-Lasting Aluminum Alloy Build
The key components of this interlock kit are constructed from a strong and corrosion-resistant aluminum alloy. The aluminum alloy build ensures durability and consistent performance of the interlock over time, protecting against rust and wear for long-lasting use.
- Complete Kit for Generator Hook-Up

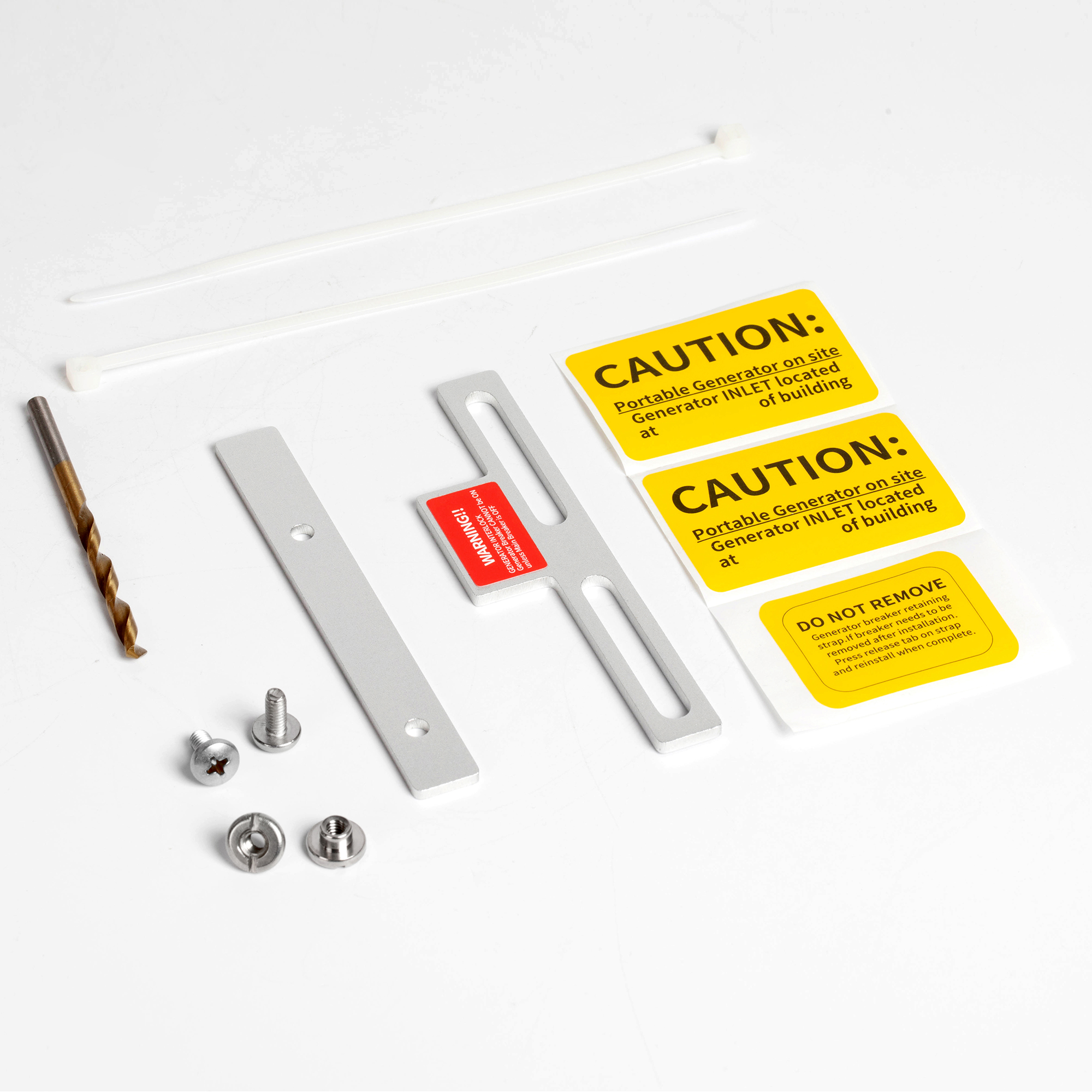

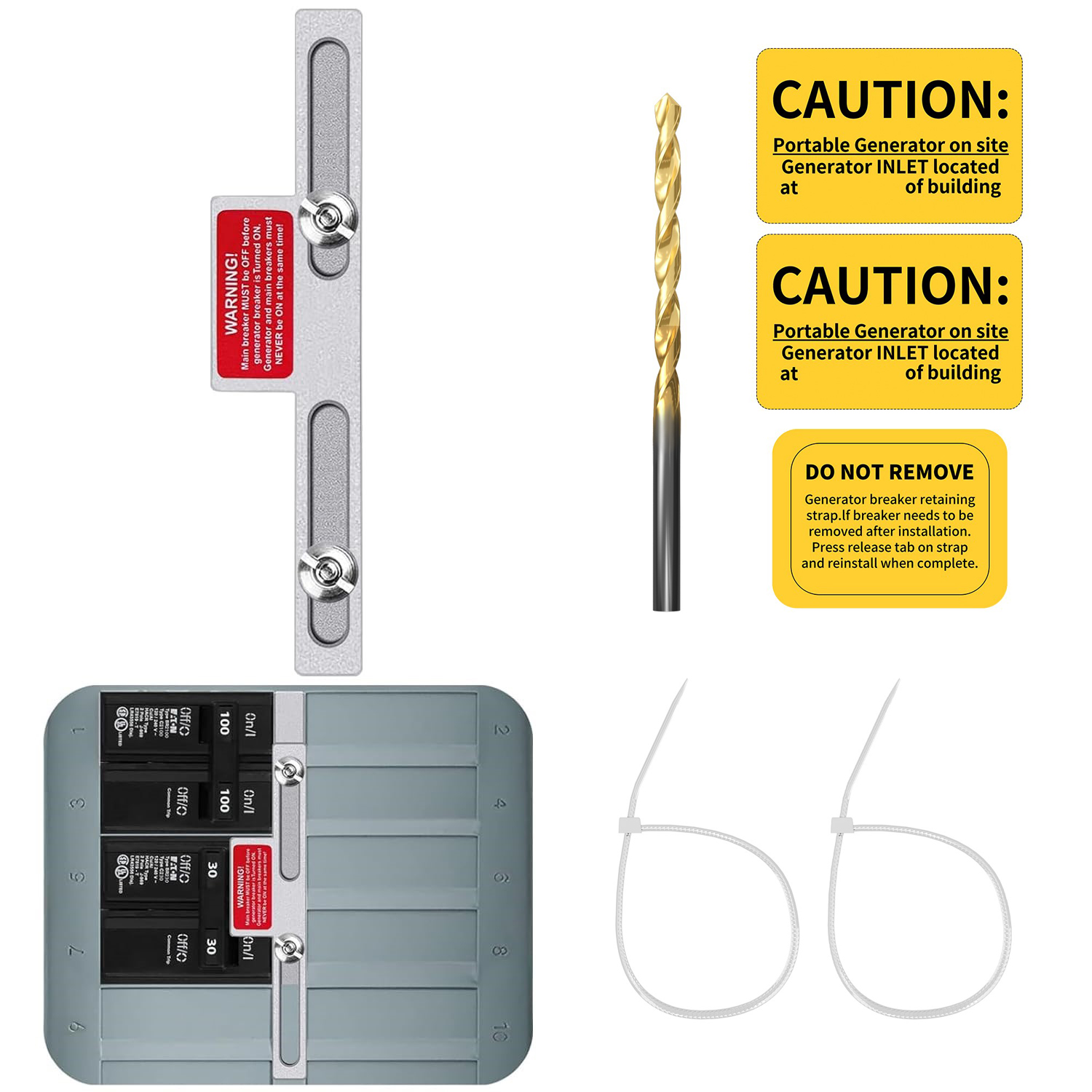

The generator interlock kit includes all necessary components for safe and easy generator connection: Two interlock plates, three generator reminder labels, the drill bit, mounting screws and nuts, zip ties for wire management, and detailed installation instructions for a safe, code-compliant generator hook-up.
BR-100 Generator Interlock Kit Datasheet
| Part NO | GL-17 |
| Material | Aluminum Alloy |
| Main Breaker | 100 or 125 amp Horizontal throw (Left/OFF to Right/ON) |
| Generator Breaker | Top left side 2 positions |
| Compatibility | Eaton Cutler Hammer BR Series 100/125A Panels |
If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
