FB-2334 12 Way Dual-Circuit Blade Fuse Block with Ground Bus & Cover | 12V-32V Fuse Panel
P/N: FB-2334
This 12 way dual-circuit blade fuse block integrates independent A/B power inputs with M5 main studs and M4 output terminals for up to 12 individual 12V-32V DC circuits.
Equipped with a negative ground bus and a protective cover, this 100A distribution kit provides a secure, organized, and corrosion-resistant power solution for automotive and marine electronics.
FB-2334 12 Way Dual-Circuit Blade Fuse Block Features
- Dual-Circuit Power Distribution
This 12-way dual-circuit fuse block features two independent 6-circuit positive bus bars (A+ and B+) to manage separate power sources simultaneously. The independent dual-input hub allows users to consolidate constant-power and ignition-switched circuits into a single, professional power center.

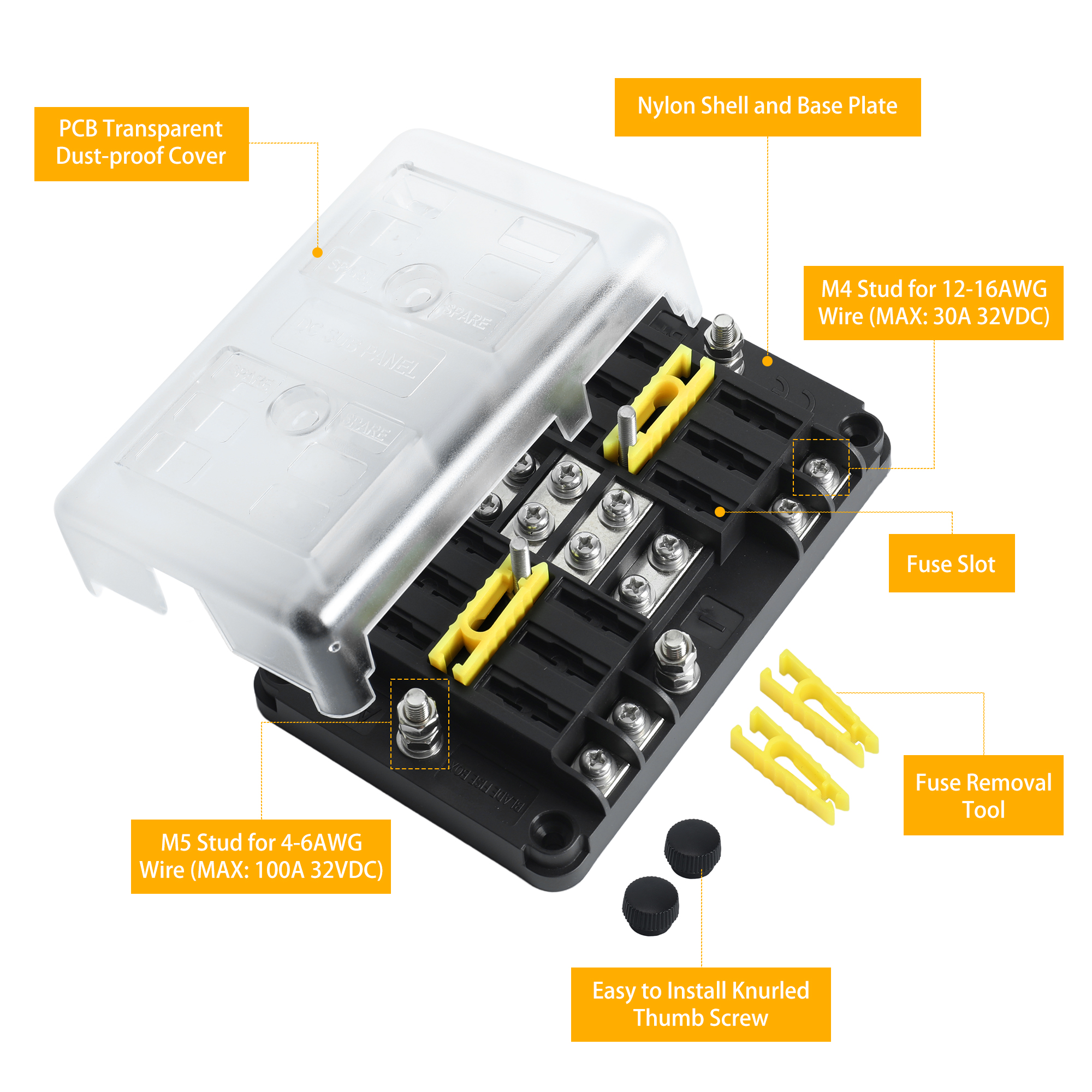

- Precision Industrial Hardware
High-conductivity M5 threaded input studs provide a heavy-duty connection point for the main battery supply cables. Each M4 terminal screw circuit ensures a secure, vibration-resistant termination for auxiliary equipment to prevent electrical arcing in marine or off-road environments.
- Reliable Visual Inspection

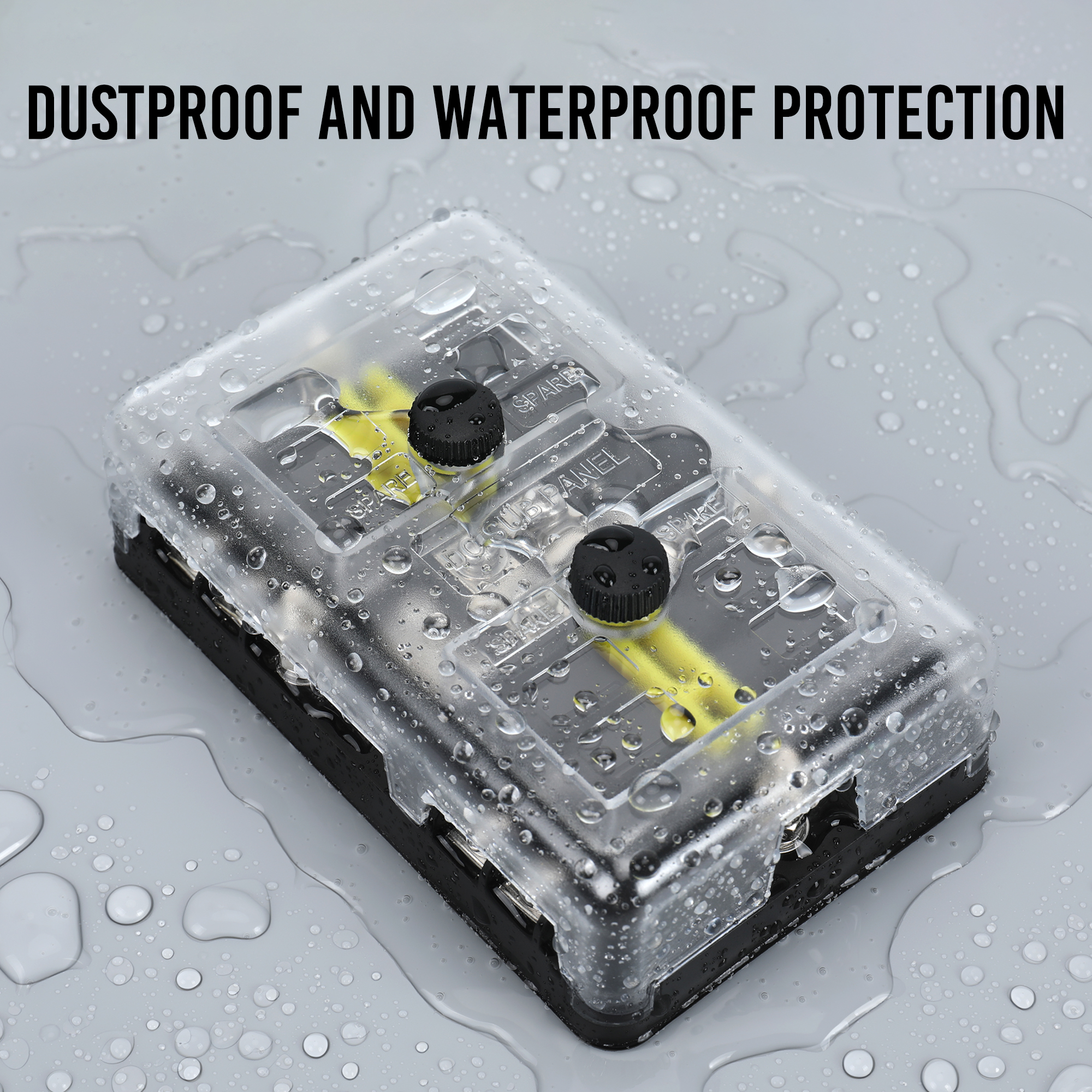

A transparent snap-on protective cover allow for the immediate manual verification of fuse status without removing the enclosure. This clear-view fuse holder provides a robust barrier against dust and moisture while offering molded storage slots for essential spare fuses.
- High-Conductivity Material Engineering
Tin-plated copper bus bars and stainless steel hardware deliver maximum electrical flow and superior defense against salt-water corrosion. This marine-grade fuse panel supports a robust 100A total current rating to safely power multiple high-wattage automotive accessories.
- Centralized Grounding Architecture

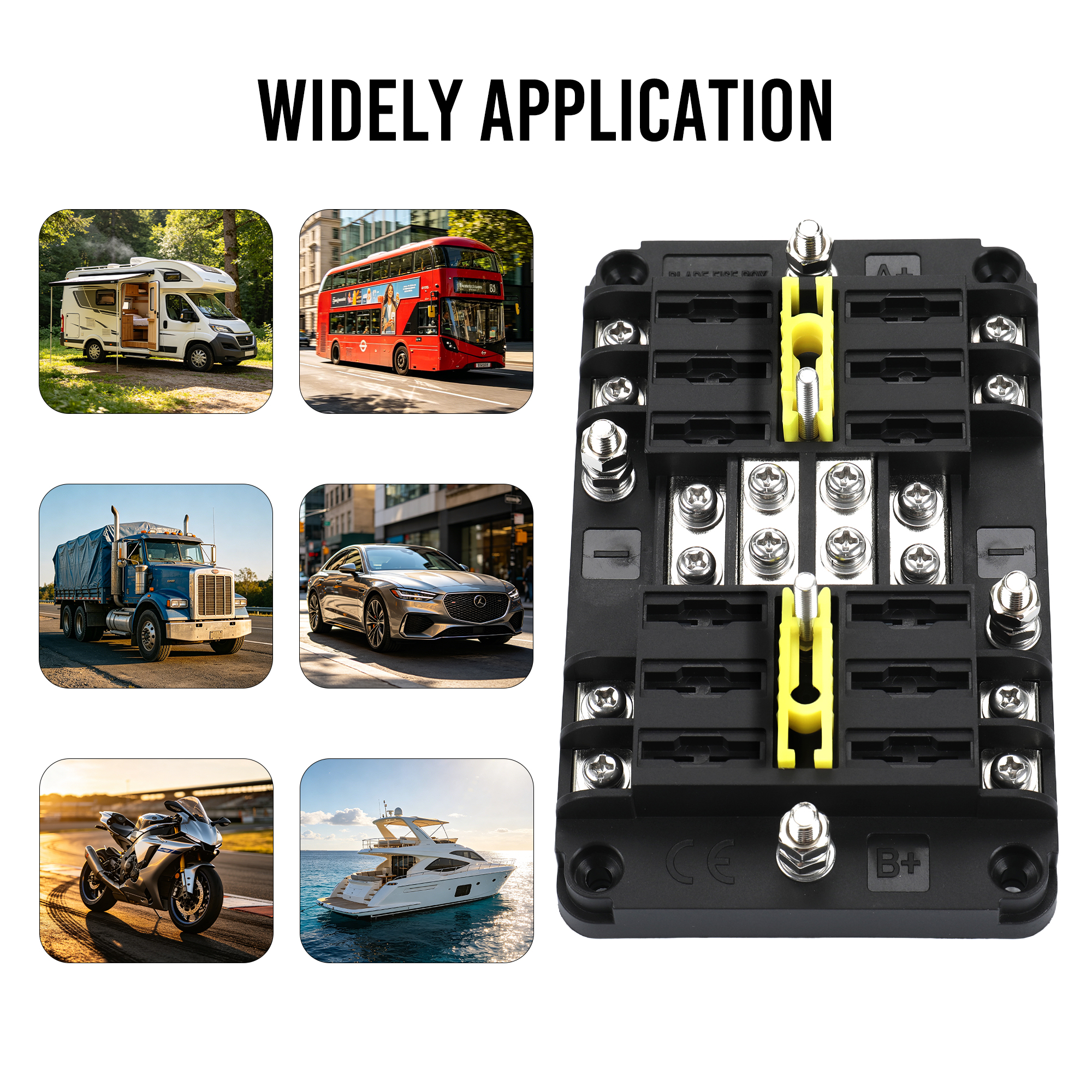

An integrated negative ground bus simplifies complex wiring by providing a common return point for all connected electrical devices. This universal power manager ensures an organized and professional installation for cars, yachts, RVs, and off-grid solar energy systems.
FB-2334 12 Way Dual-Circuit Blade Fuse Block Specifications
| Circuit Configuration | Dual-Circuit (6+6 Independent Slots) |
| Voltage Compatibility | 12V – 32V DC |
| Current Rating (Per Slot) | 30 Amps Max |
| Total Current Rating | 100 Amps Max |
| Input Stud Size | Dual M5 (5mm) Threaded Studs |
| Output Terminal Size | M4 (4mm) Screw Terminals |
| Mounting Hardware | Compatible with #12-16 or M4 Screws |
| Enclosure Material | High-Quality PBT (Flame Retardant) |
| Hardware Material | Tin-Plated Copper & Stainless Steel |

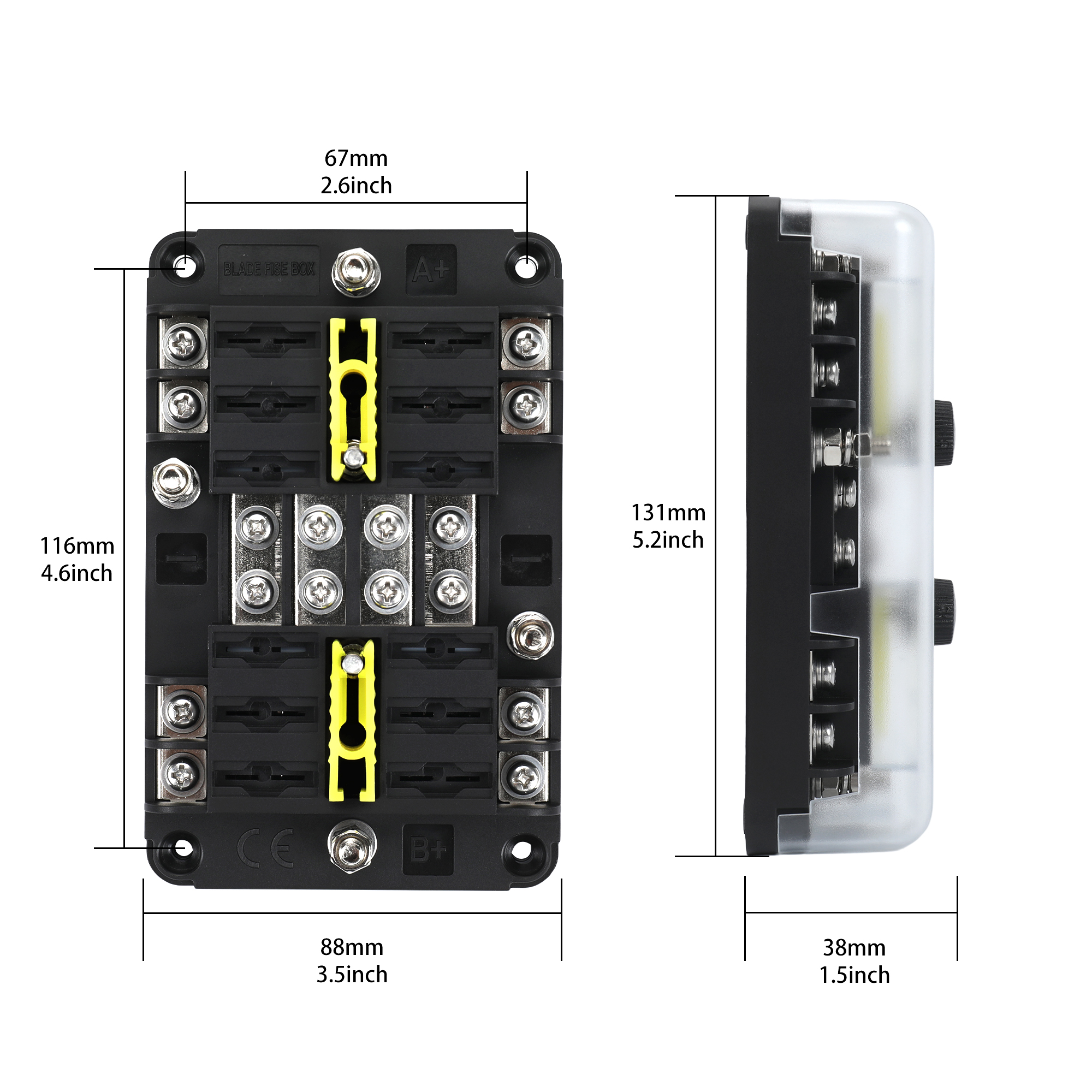

| Dimensions | 5.17″ L x 3.26″ W x 1.75″ H (131.5 x 83 x 44.5 mm) |
| Protection Type | Dustproof & Moisture-Resistant Cover |
