MTS-201 2 Way 6A 125VAC Toggle Switch

MTS-201: ON–OFF, Solder Terminals

MTS-211: OFF-(ON), Solder Terminals

DPST 4P

MTS-201 2 Way 6A 125VAC Toggle Switch:

The MTS Series miniature toggle switches offer numerous actuator options and termination options including right angle PC mount. These toggle switches offer up to 4 poles. They are PCB mounted and are available in through whole or right angle termination.

Several families of MTS toggle switches are available, and many people used them in guitar effector.

Applications include telecommunications, instrumentation, networking and medical equipment.

MTS-201 2 Way 6A 125VAC Toggle Switch related product, pls check the detailed information as below:

MTS-201 4Pin, ON-OFF, solder terminal
MTS-211 4Pin, OFF- momentary ON, solder terminal

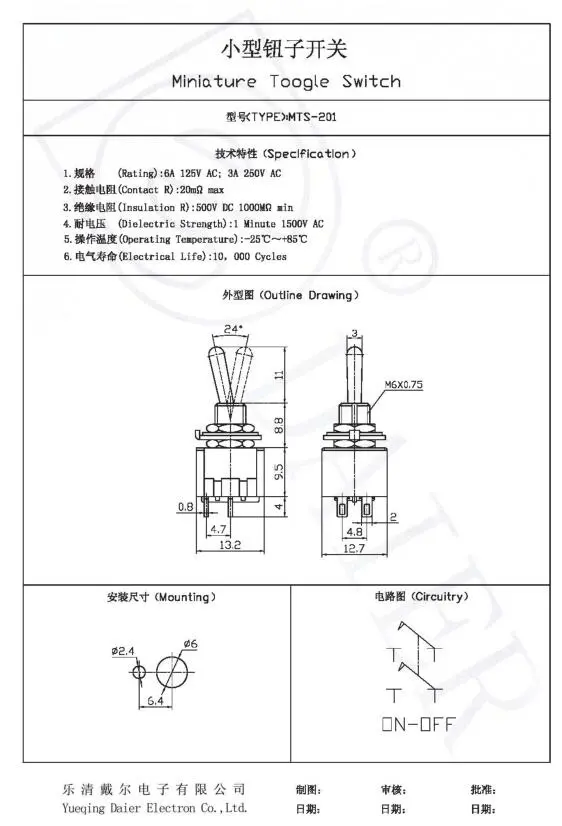

Pls check the datasheet below:



Housing: Bakelite Lever: Brass with Nickel plated
Terminal: Brass with sliver plated Torque: Max. 5kg·cm (70 ounce·inch)
Rating: 6A 125VAC/3A 250VAC Contact Resistance: 50mΩ max
Electrical Life: ≥ 10,000 Cycles Mechanical Life: ≥ 100,000 Cycles
Dielectric strength: 1500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 1000mΩ min (500VDC) OEM or ODM: Available
MTS toggle switch
