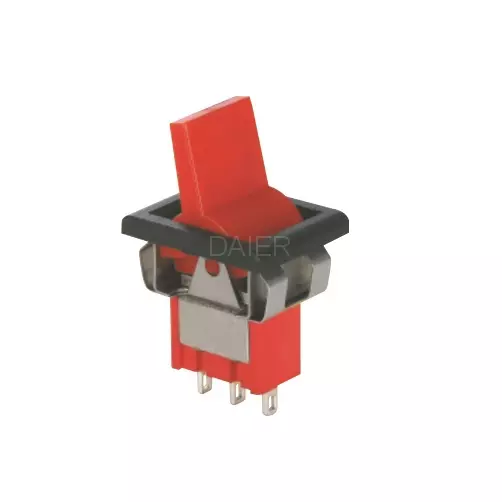

RLS-102-F1 Miniature Rocker Toggle Switch
RLS-102-F1 Miniature Rocker Toggle Switch
Category :
Miniature Toggle Switch
RLS-102-F1 Miniature Rocker Toggle Switch:
The RLS Series miniature toggle switches offer numerous actuator options and termination options including right angle PC mount. These toggle switches offer up to 4 poles. They are PCB mounted and are available in through whole or right angle termination.
Several families of RLS toggle switches are available, and many people used them in guitar effector.
Applications include telecommunications, instrumentation, networking and medical equipment.
RLS-102-F1 Miniature Rocker Toggle Switch related product, pls check the detailed information as below:
| RLS-102-F1 | 3Pin, ON-ON | RLS-202-F1 | 6Pin, ON-ON |
| RLS-112-F1 | 3Pin, ON- momentary ON | RLS-212-F1 | 6Pin, ON- momentary ON |
| RLS-103-F1 | 3Pin, ON-OFF-ON | RLS-203-F1 | 6Pin, ON-OFF-ON |
| RLS-113-F1 | 3Pin, ON-OFF- momentary ON | RLS-213-F1 | 6Pin, ON-OFF- momentary ON |
| RLS-123-F1 | 3Pin, momentary ON-OFF- momentary ON | RLS-223-F1 | 6Pin, momentary ON-OFF- momentary ON |
Pls check the datasheet below:
| Housing: | Bakelite | Lever: | Brass with Nickel plated |
| Terminal: | Brass with sliver plated | Torque: | Max. 5kg·cm (70 ounce·inch) |
| Rating: | 6A 125VAC/3A 250VAC | Contact Resistance: | 50mΩ max |
| Electrical Life: | ≥ 10,000 Cycles | Mechanical Life: | ≥ 100,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 1000mΩ min (500VDC) | OEM or ODM: | Available |
