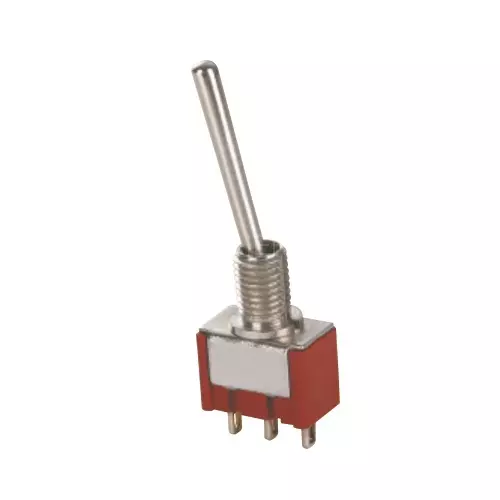

MTS-102-B1 Toggle Switch with Long Handle

The MTS Series miniature toggle switches offer numerous actuator options and termination options including right angle PC mount. These toggle switches offer up to 4 poles. They are PCB mounted and are available in through whole or right angle termination.

Several families of MTS toggle switches are available, and many people used them in guitar effector.

Applications include telecommunications, instrumentation, networking and medical equipment.

MTS-102-B1 Toggle Switch with Long Handle related product, pls check the detailed information as below:

MTS-102-B1 3Pin, ON-ON, solder terminal, long handle
MTS-112-B1 3Pin, ON- momentary ON, solder terminal, long handle

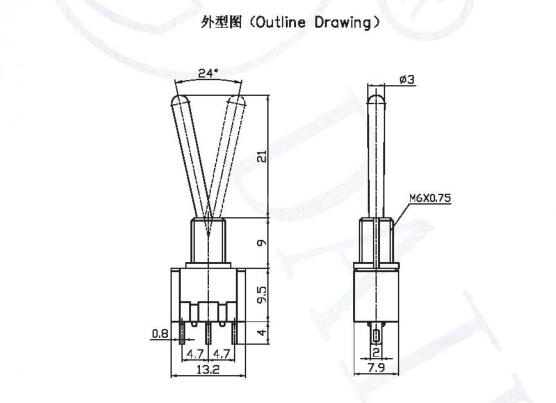

Pls check the datasheet below:


Housing: Bakelite Lever: Brass with Nickel plated
Terminal: Brass with sliver plated Torque: Max. 5kg·cm (70 ounce·inch)
Rating: 6A 125VAC/3A 250VAC Contact Resistance: 50mΩ max
Electrical Life: ≥ 10,000 Cycles Mechanical Life: ≥ 100,000 Cycles
Dielectric strength: 1500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 1000mΩ min (500VDC) OEM or ODM: Available
