ASW-A805 200A 12-24V DC Master Power Cutoff Switch Panel Mount with Chrome Flange & T-Handle
Part # ASW-A805
This master power cutoff switch is rated for 200A continuous and 1000A cranking in 12-24V DC systems, features a chrome-plated flange and robust copper studs.
With its simple On/Off T-handle operation, this master cutoff switch provides a reliable and secure method for isolating power in marine, automotive, and industrial applications.
Category :
Battery Switch
ASW-A805 200A 12-24V DC Master Power Cutoff Switch with Chrome Flange & T-Handle Features
- Heavy-Duty Electrical Performance
This heavy-duty battery switch is engineered for high-power circuits, rated for 200A continuous and 1000A cranking current. The master cutoff switch is compatible with 12V-24V DC systems, making it a versatile component for various applications. Its robust internal copper conductors ensure reliable performance under significant electrical loads.
- Secure Panel-Mount Design

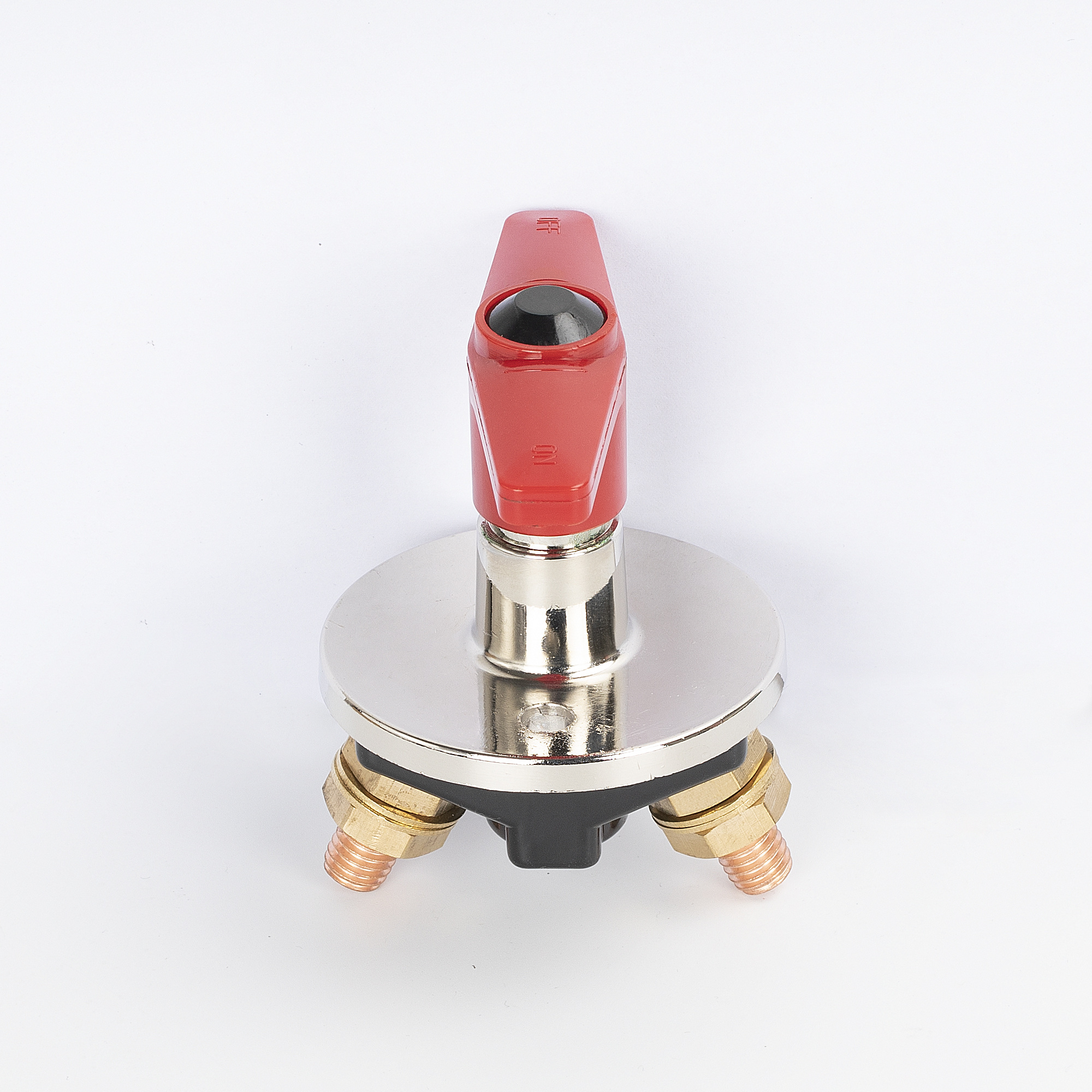

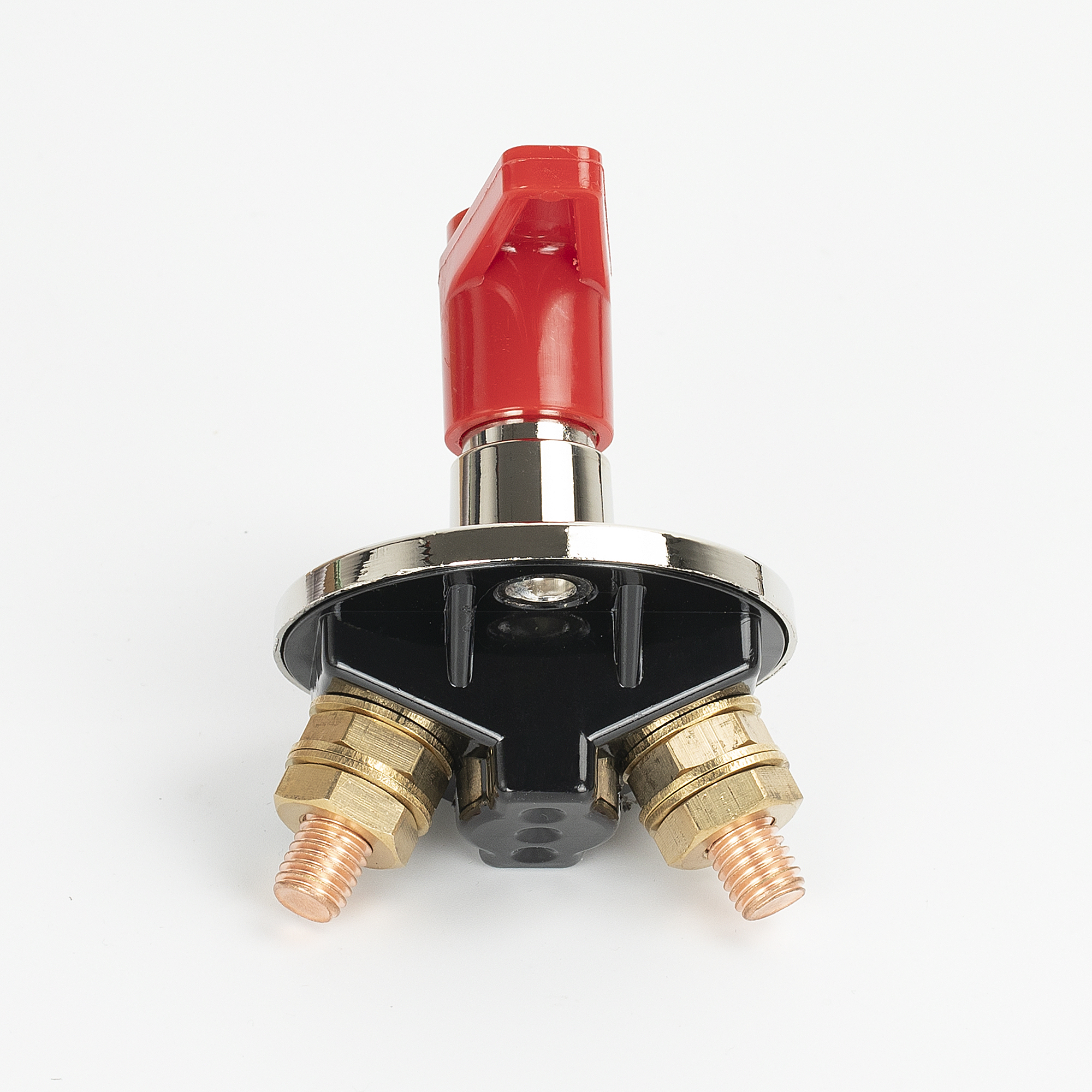

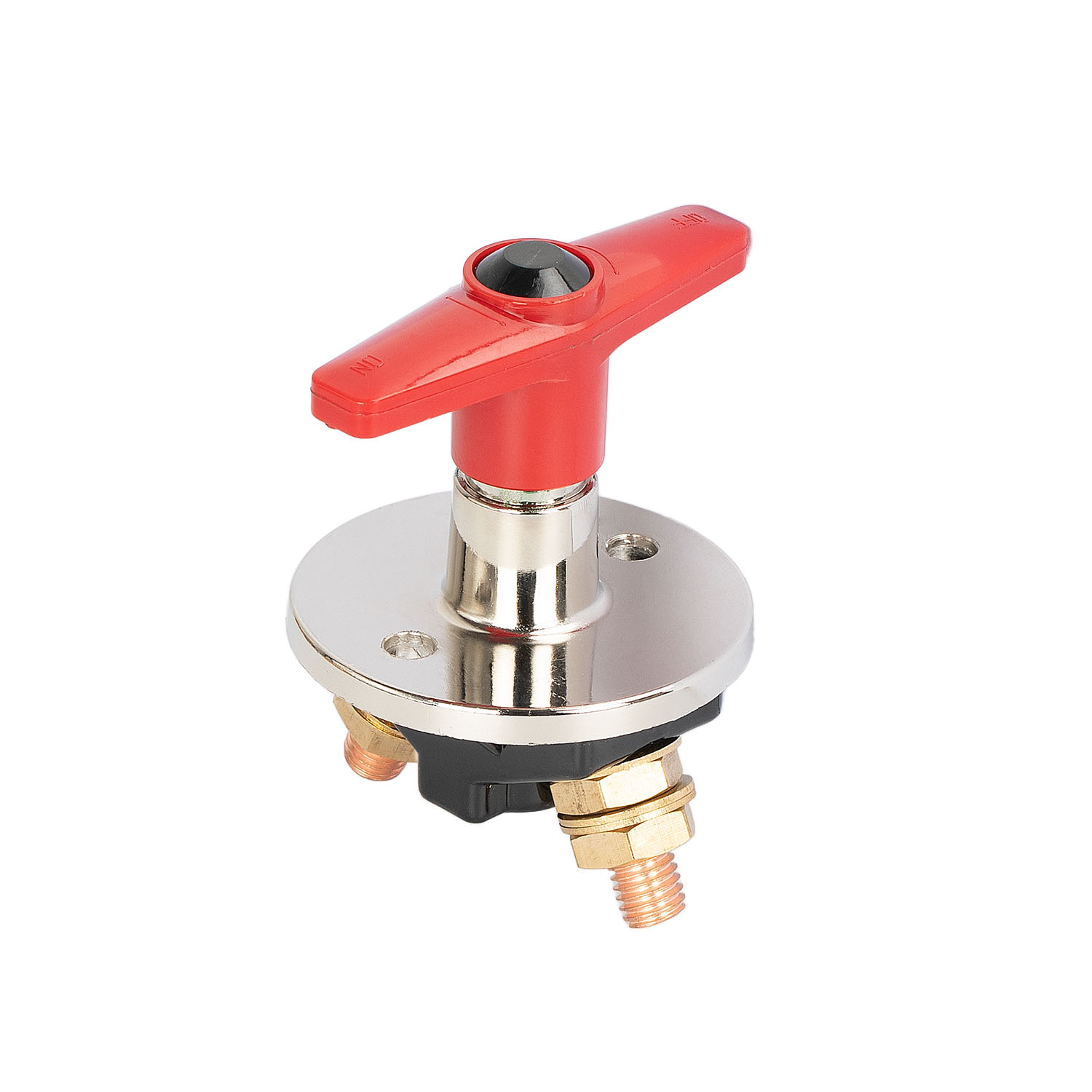

This battery selector switch features a chrome-plated flange for a secure and professional panel-mount installation. The flange mount provides a stable base, while the rear-facing copper studs ensure that all high-amperage wiring is safely behind the mounting panel. This design allows for a clean and integrated appearance on any control panel or bulkhead.
- Simple T-Handle Operation

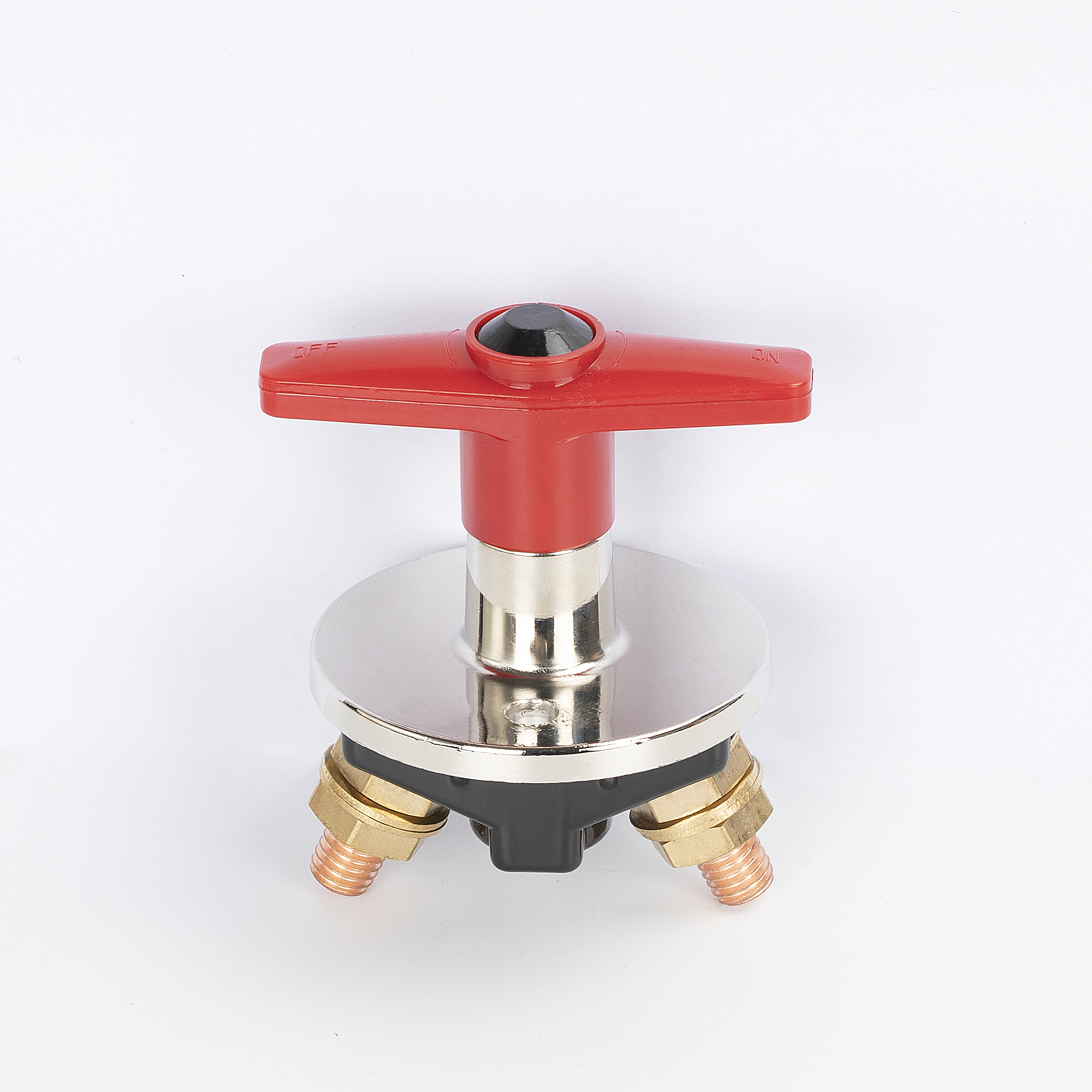

Featuring a large, red T-handle, this master disconnect switch offers straightforward and unambiguous On/Off 2-position control. The T-handle actuator provides excellent leverage for easy operation, even with gloved hands. Clear “ON” and “OFF” markings are molded into the handle for instant visual confirmation of the circuit’s status.
- Durable Material Construction
This marine battery switch is constructed with high-quality materials to withstand harsh operating conditions. The power isolator switch utilizes solid copper studs and contacts for maximum conductivity and corrosion resistance. Its sturdy housing is designed for longevity in marine, automotive, and industrial environments.
- Broad System Application
This master power cutoff switch is an ideal solution for managing the main power in a wide range of vehicles and equipment. The electrical disconnect is perfect for boats, RVs, trucks, race cars, and industrial machinery. It provides an essential safety function by allowing for a quick and complete shutdown of the electrical system.
ASW-A805 200A 12-24V DC Master Power Cutoff Switch Datasheet
| Model Number | ASW-A805 |
| Product Type | Heavy-Duty Master Battery Disconnect Switch |
| Operation | 2-Position ON/OFF |
| Actuator Type | Rotary T-Handle |
| Mounting Style | Panel Mount / Flange Mount |
| Continuous Current Rating | 200 Amps |
| Cranking Current Rating | 1000 Amps |
| Working Voltage | 12V – 24V DC |
| Terminal Studs | 2 x Copper Studs |
| Flange Finish | Chrome-Plated |
